Bracket-Engine Mount: Removal

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

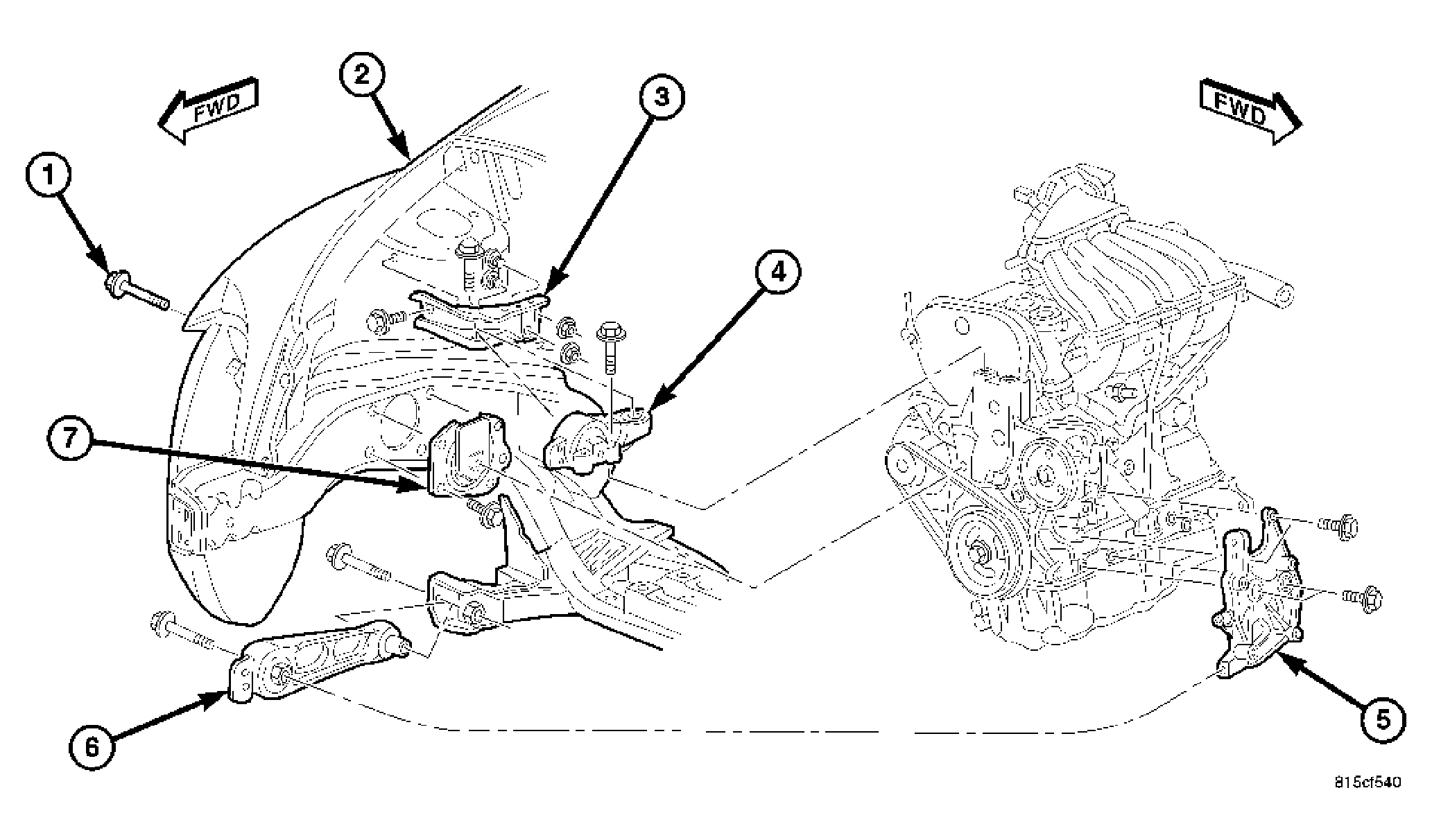

Fig 1: Engine Brackets, Engine Mounts & Torgue Struts - Right Side
GC0042433Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove upper torque strut (4) (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - REMOVAL)  .
  2. Remove fasteners securing power steering reservoir bracket to right engine mount bracket.
  3. Remove fastener securing power steering return line to right engine mount bracket.

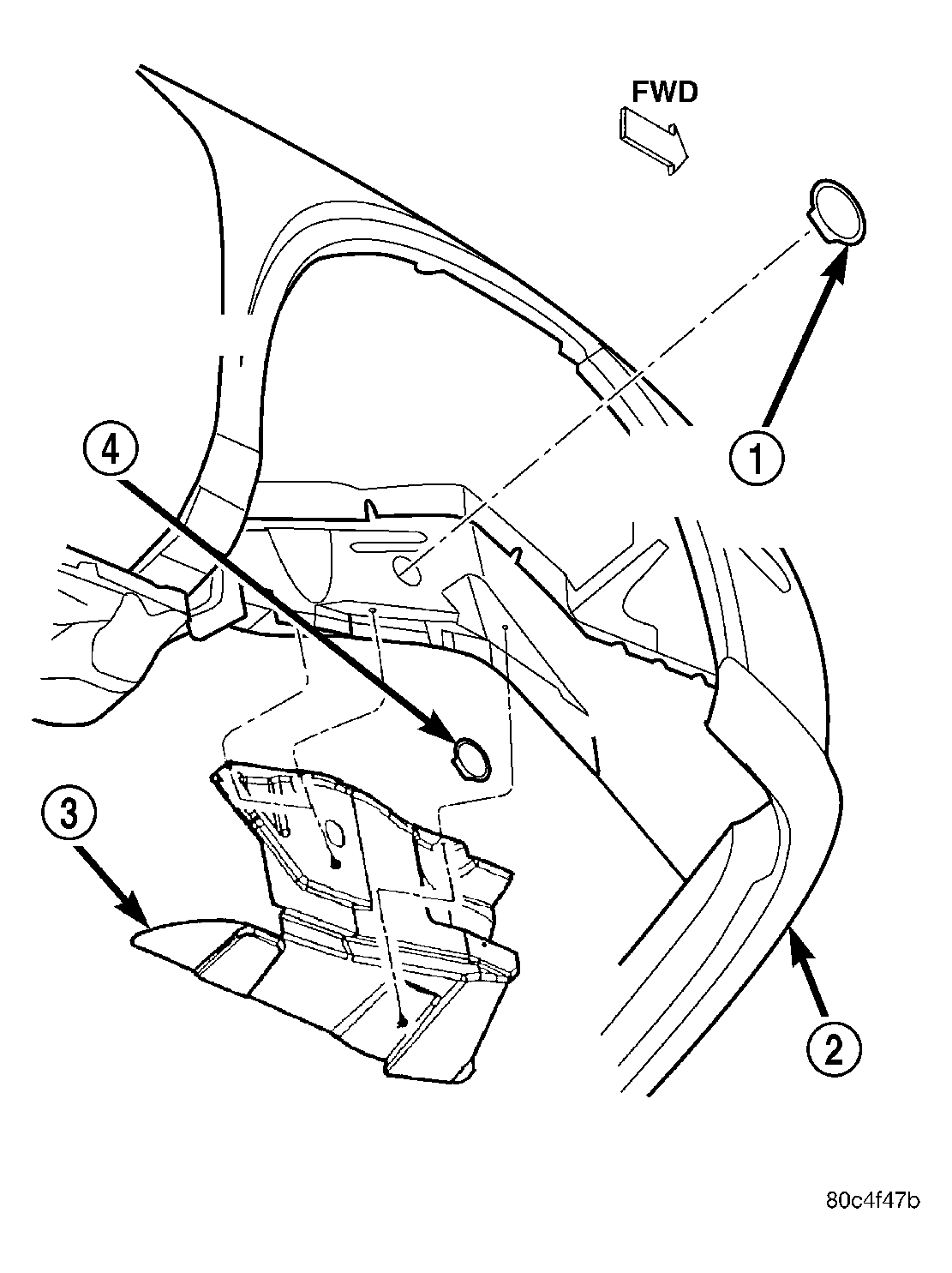

    Fig 2: Splash Shield
    GC0042434Courtesy of DAIMLERCHRYSLER CORP.
    1 - RIGHT MOUNT BOLT ACCESS PLUG
    2 - FASCIA
    3 - SPLASH SHIELD
    4 - CRANKSHAFT BOLT ACCESS PLUG
  4. Raise vehicle on hoist.
  5. Remove right front wheel.
  6. Remove accessory drive belt splash shield (3).
    Fig 3: Engine Brackets, Engine Mounts & Torgue Struts - Right Side
    GC0042433Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove lower torque strut (6) (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - REMOVAL)  .
  8. Remove lower right engine mount bracket bolt.
  9. Lower vehicle.
  10. Support engine with floor jack and wooden block on oil pan.
  11. Remove access cover in right frame rail for right engine mount through bolt (1).
  12. Remove right engine mount through bolt.

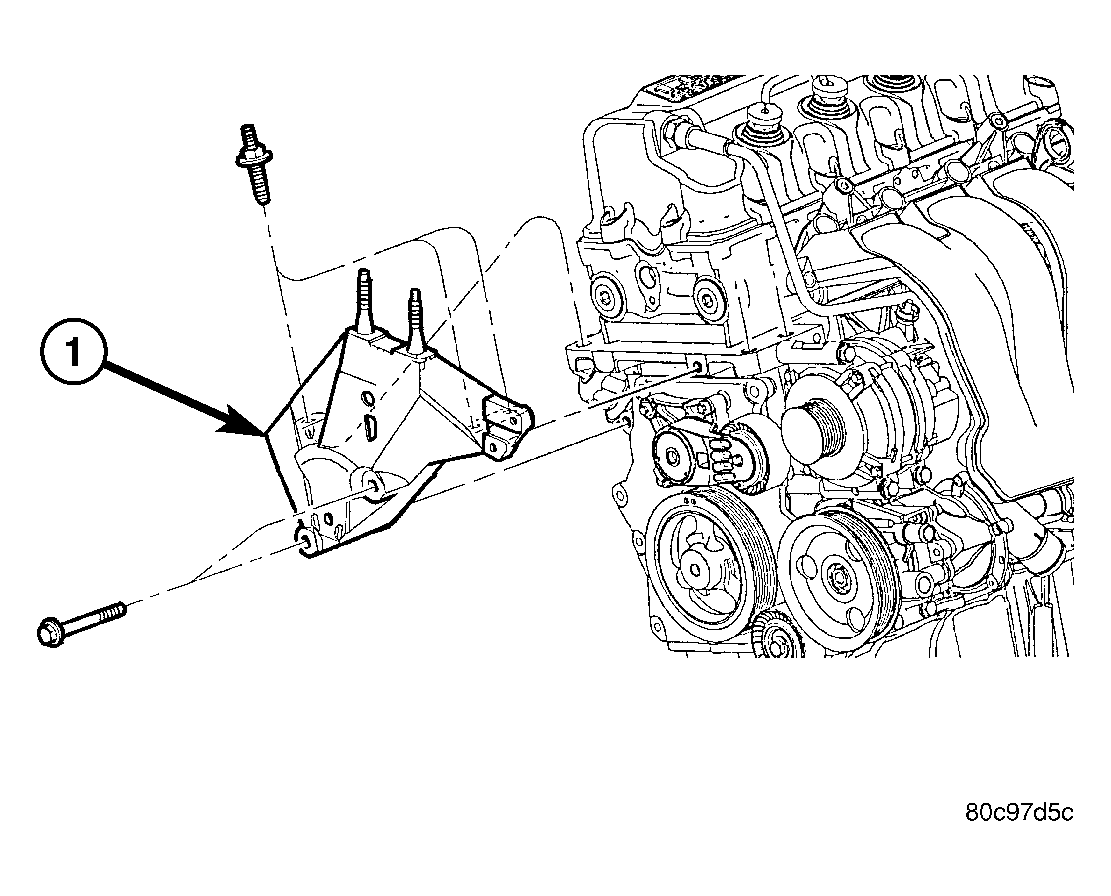

    Fig 4: Right Engine Mount Bracket
    GC0021541Courtesy of DAIMLERCHRYSLER CORP.
    1 - RIGHT ENGINE MOUNT BRACKET
  13. Raise engine with floor jack.
  14. Remove remaining bolts and studs for right engine mount bracket. Remove bracket (1). See Fig 4.
