1.6L SOHC: Description
WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

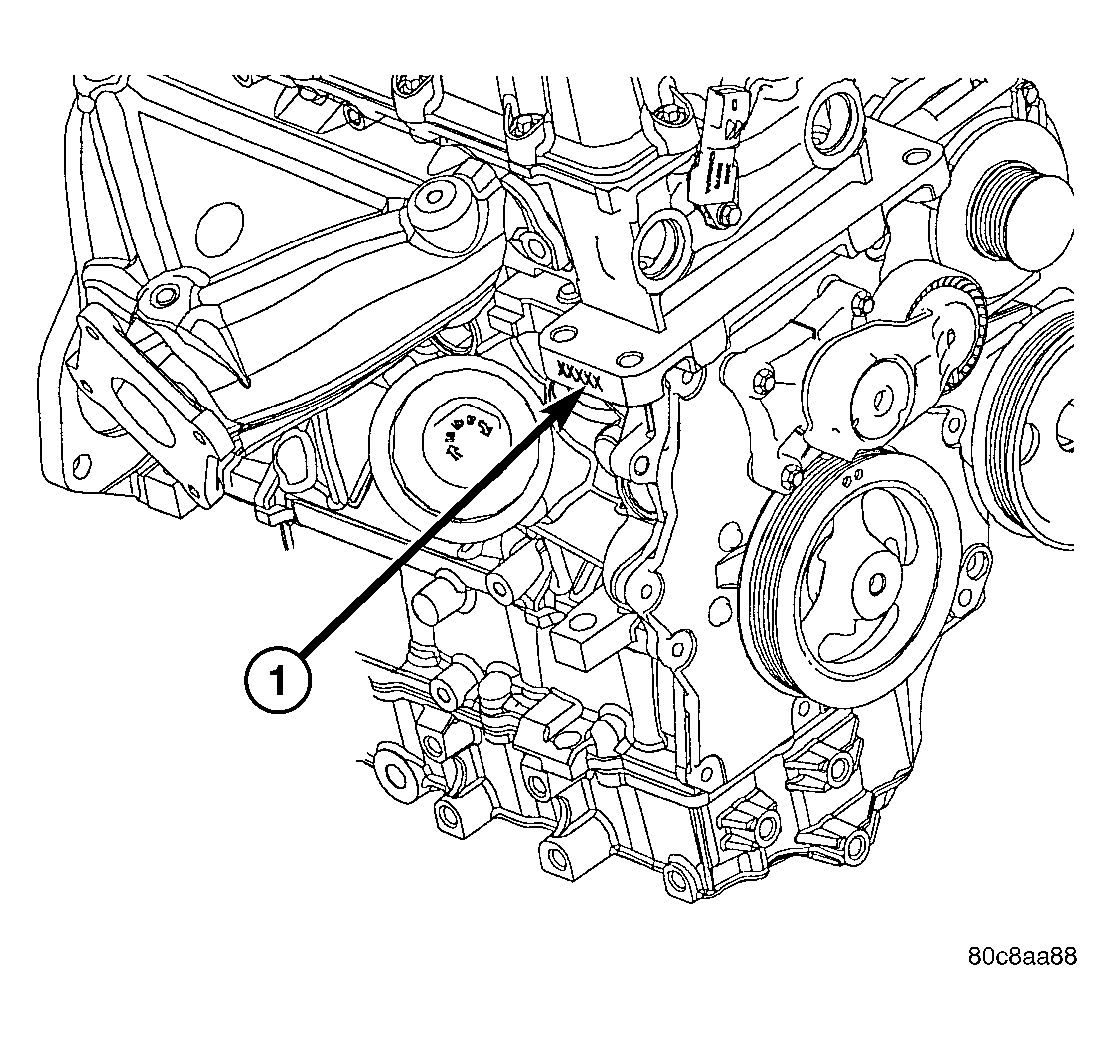

| 1 - LOCATION OF ENGINE IDENTIFICATION NUMBER |
The 1.6 Liter (97.6 cu. in.) in-line four cylinder engine is a single over head camshaft with four valves per cylinder design. The engine does not have provisions for a "free wheeling" valve train.
The cylinders are numbered from front of the engine to the rear. The firing order is 1-3-4-2.
The engine identification number is stamped onto a machined pad located on the right front of the cylinder block below the cylinder head sealing surface (1).
