Service Information: Installation

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

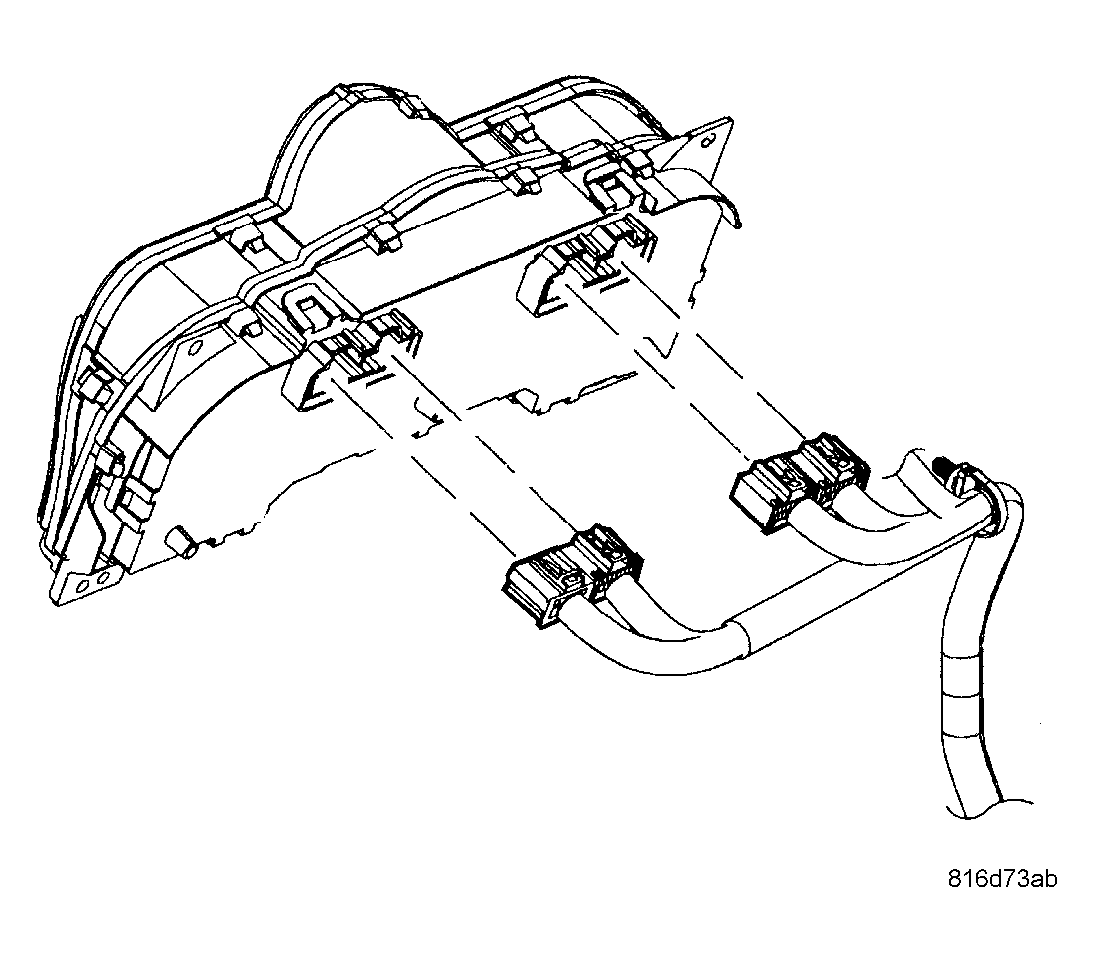

Fig 1: Removing/ Installing Cluster Connectors
GC0043624Courtesy of DAIMLERCHRYSLER CORP.
  1. Align the cluster in the instrument panel opening. Connect the four electrical connectors.
    Fig 2: Removing/ Installing Cluster
    GC0043623Courtesy of DAIMLERCHRYSLER CORP.
  2. Push straight back to seat the cluster into the instrument panel.

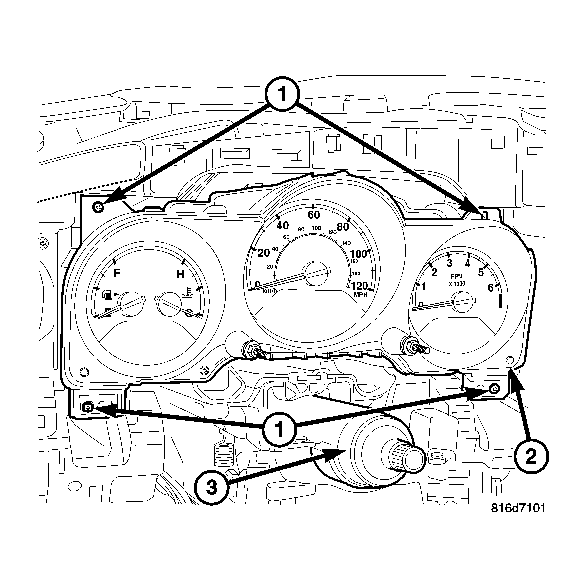

    Fig 3: Cluster Retaining Screws
    GC0043622Courtesy of DAIMLERCHRYSLER CORP.
  3. Install four screws (1) to the instrument cluster (2).
  4. Install the instrument cluster bezel (Refer to BODY/INSTRUMENT PANEL/CLUSTER BEZEL - INSTALLATION) .
  5. Connect the battery negative cable.
  6. Close hood.
