Installation - Front

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

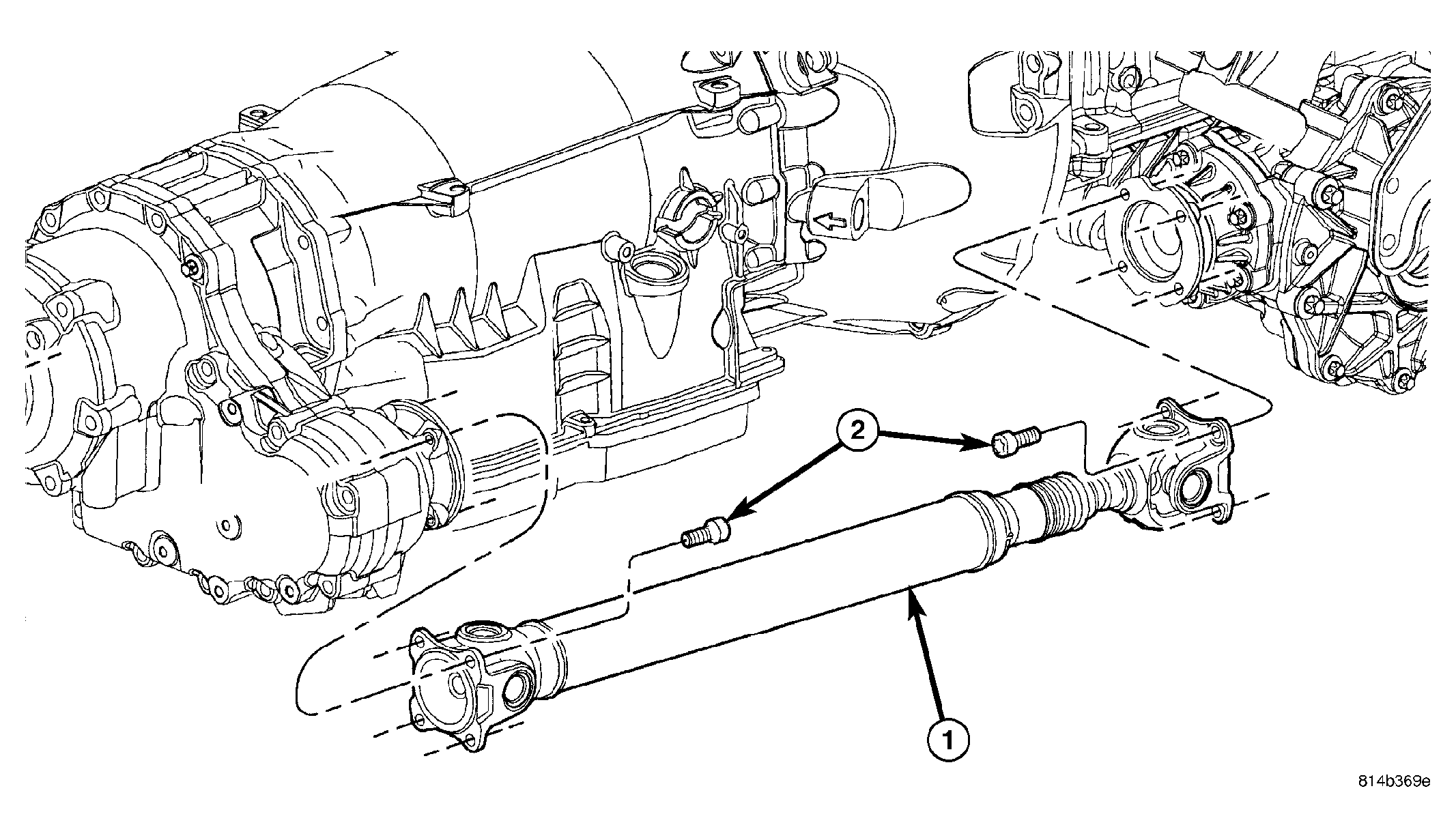

Fig 1: Front Propeller Shaft Removal/Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - PROPELLER SHAFT ASSEMBLY

2 - BOLTS

Install propeller shaft (1) into position.
Starting at transfer case end, align index marks placed upon removal and loose-install new propeller shaft-to-transfer case flange bolts.
Align index marks at front axle end of shaft, and loose-install new propeller shaft-to-front axle flange bolts.
Torque propeller shaft-to-transfer case and axle flange bolts (2) to 61 N.m (45 ft. lbs.).

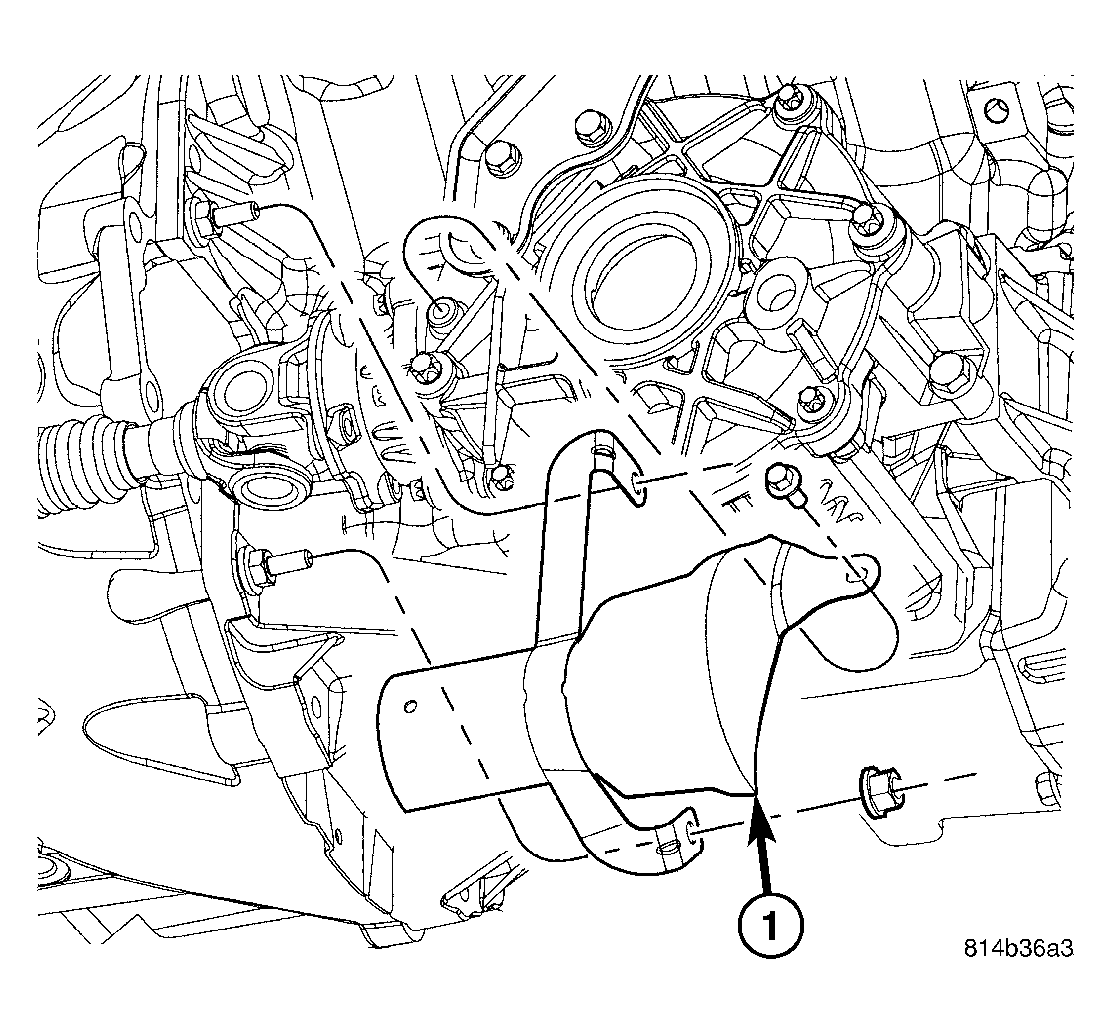

Fig 2: Heat Shield Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.

1 - HEAT SHIELD
Install propeller shaft heat shield.
Lower vehicle.
