Section 7 (Differential & Driveline): Shaft-Propeller: Bearing-Center: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Propeller Shaft Index Markings

Courtesy of DAIMLERCHRYSLER CORP.

Remove propeller shaft from vehicle.
NOTE: To address propeller shaft imbalance concerns, the propeller shaft spline interface has a "skip-tooth" design allowing only one possible assembly orientation. Install reference marks only to aid in assembly.

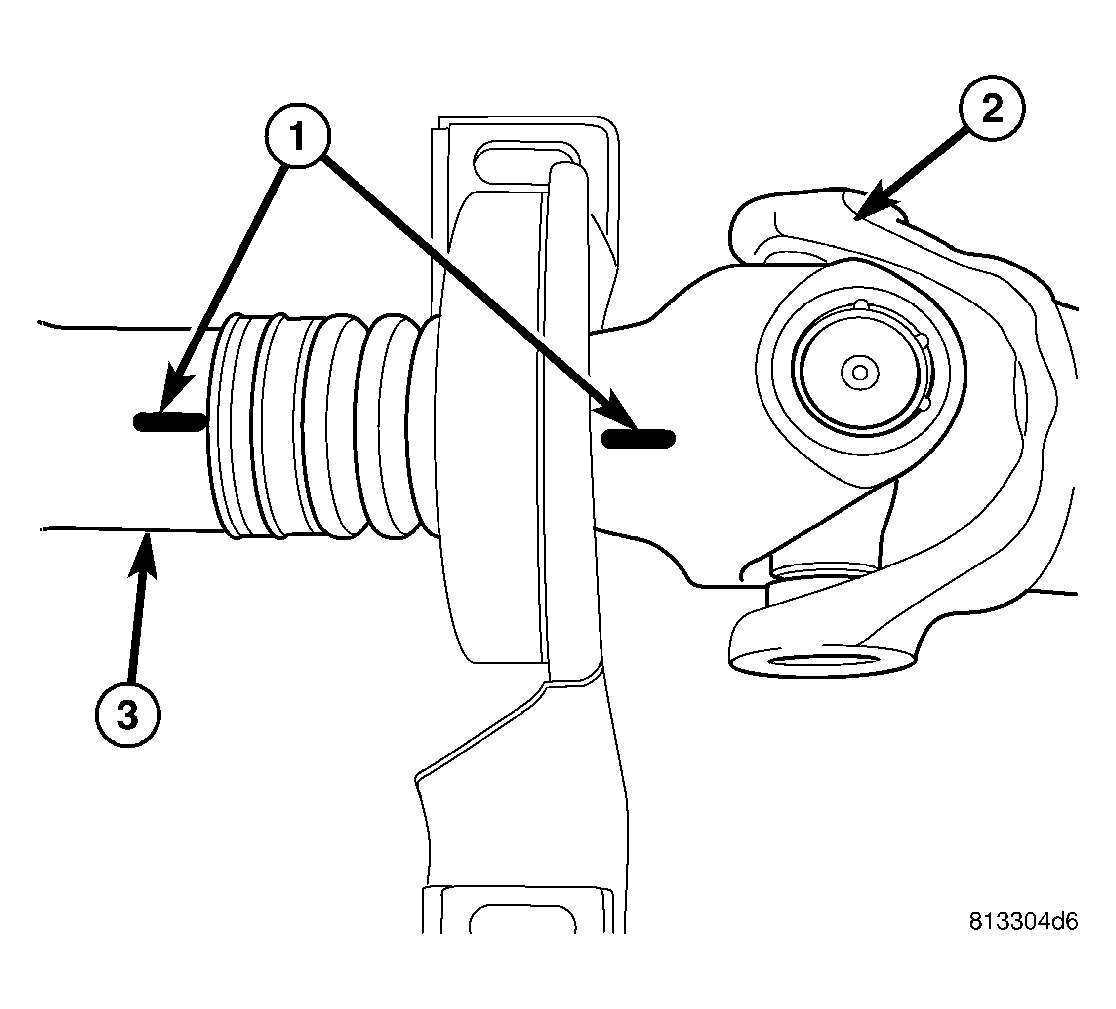

Mark front and rear shaft segments (2,3) with installation reference marks (1).

Fig 2: Plunging Boot Removal
Courtesy of DAIMLERCHRYSLER CORP.
Separate propeller shaft front and rear segments at bearing and remove boot (1)

Fig 3: Center Bearing Removal
Courtesy of DAIMLERCHRYSLER CORP.

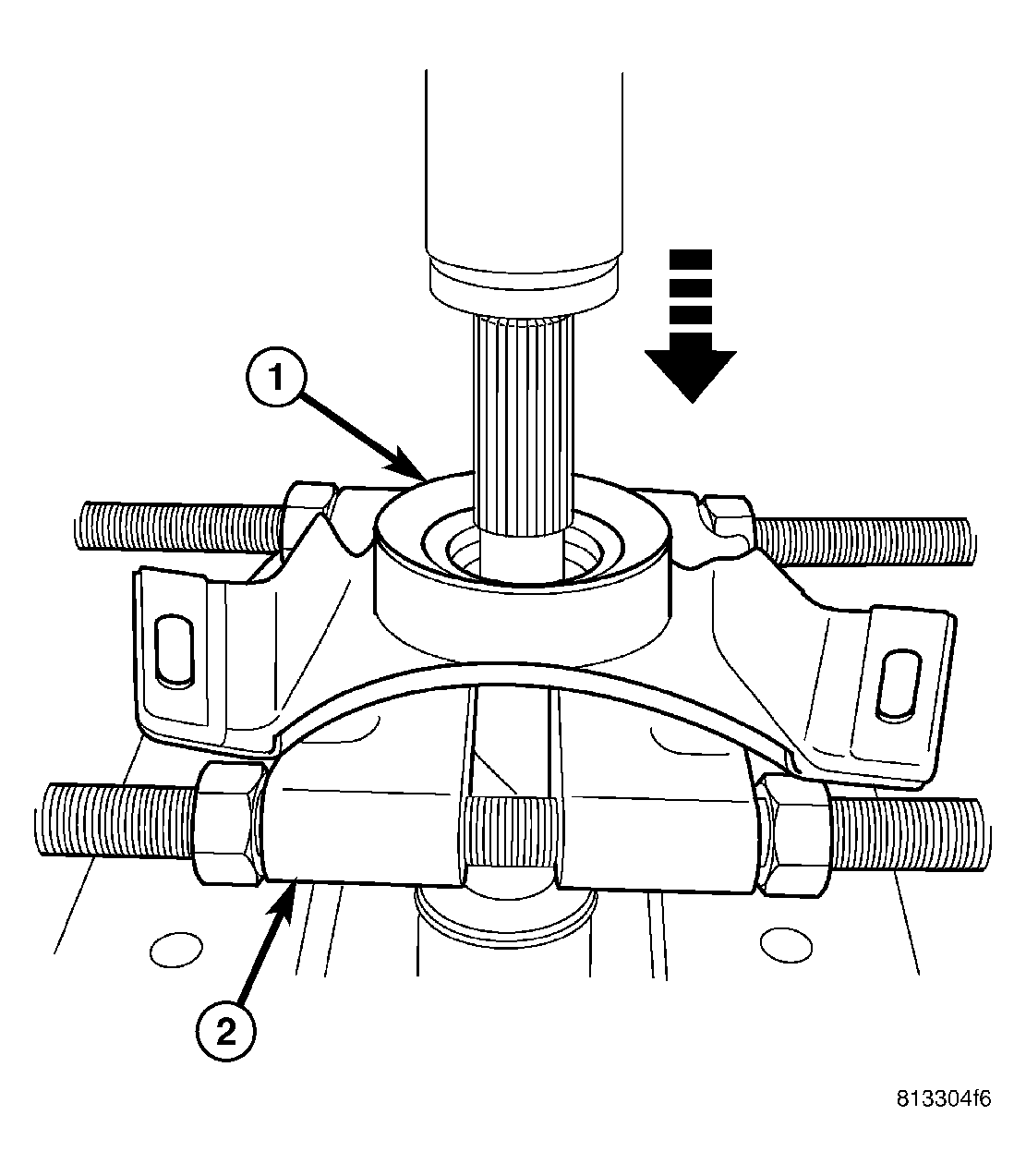

Press center bearing (1) off of rear shaft segment using arbor press and Bearing Splitter 1130 (2).
