Boot-CV Outer: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

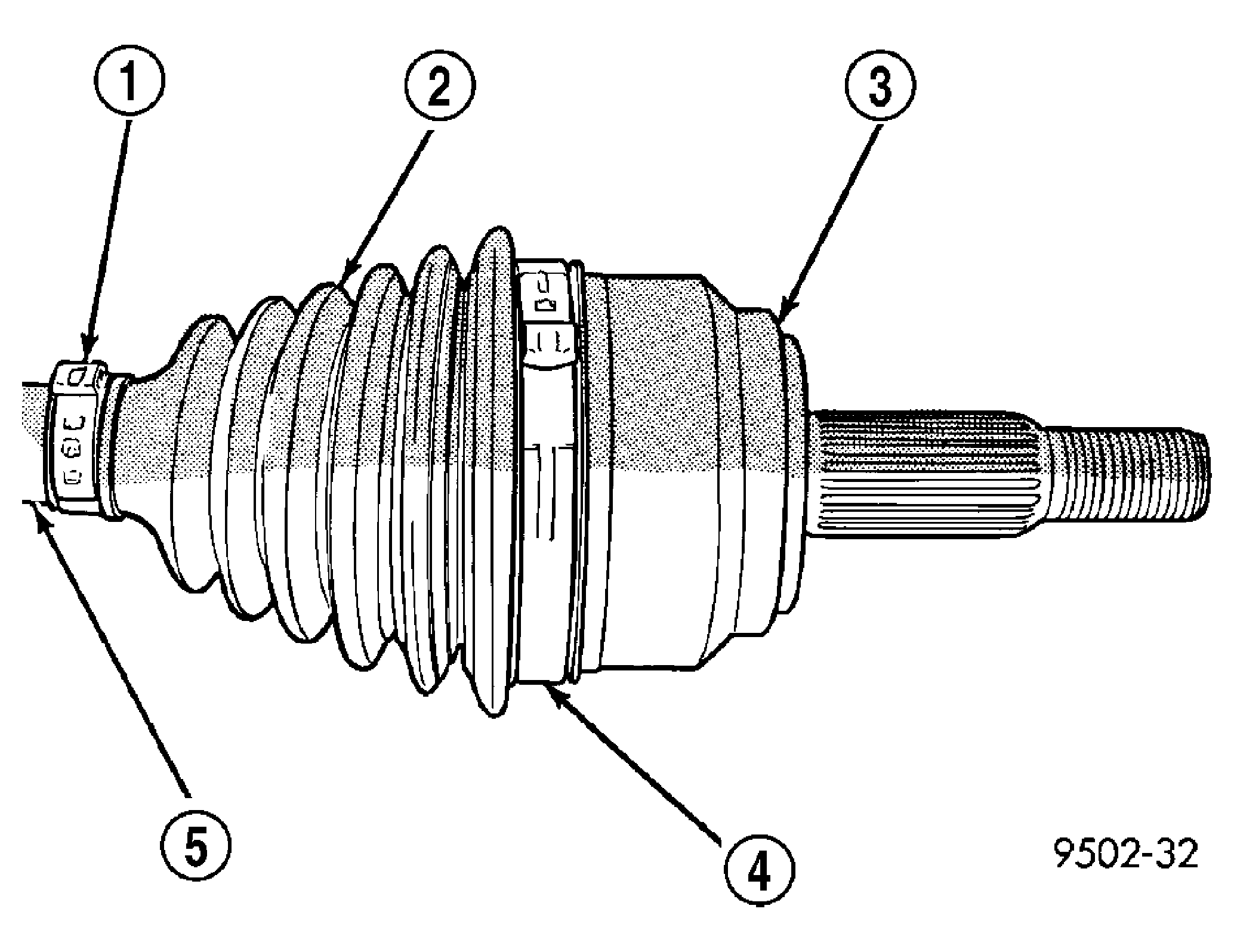

Fig 1: Outer C/V Joint Seal Boot Clamps

Courtesy of DAIMLERCHRYSLER CORP.

Remove large boot clamp (4) retaining C/V joint sealing boot to C/V joint housing and discard. Remove small clamp (1) that retains outer C/V joint sealing boot to interconnecting shaft and discard. Remove sealing boot from outer C/V joint housing and slide it down interconnecting shaft.
Wipe away grease to expose outer C/V joint and interconnecting shaft.

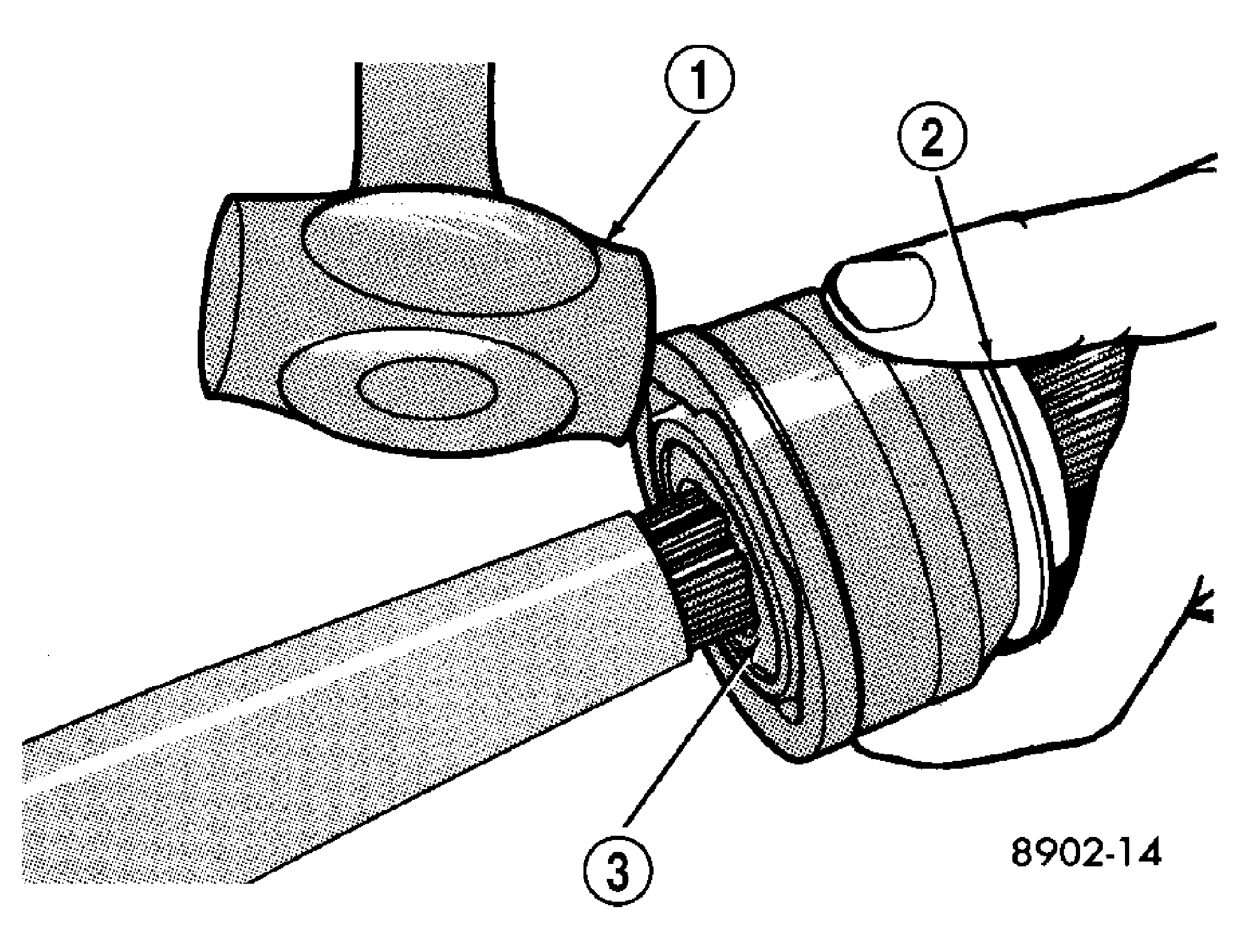

Fig 2: Outer C/V Joint Removal from Interconnecting Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Remove outer C/V joint from interconnecting shaft using the following procedure: Support interconnecting shaft in a vise equipped with protective caps on jaws of vise to prevent damage to interconnecting shaft. Then, using a soft-faced hammer, sharply hit the end of the C/V joint housing to dislodge housing from internal circlip on interconnecting shaft. See Fig 2. Then slide outer C/V joint off end of interconnecting shaft, joint may have to be tapped off shaft using a soft-faced hammer.

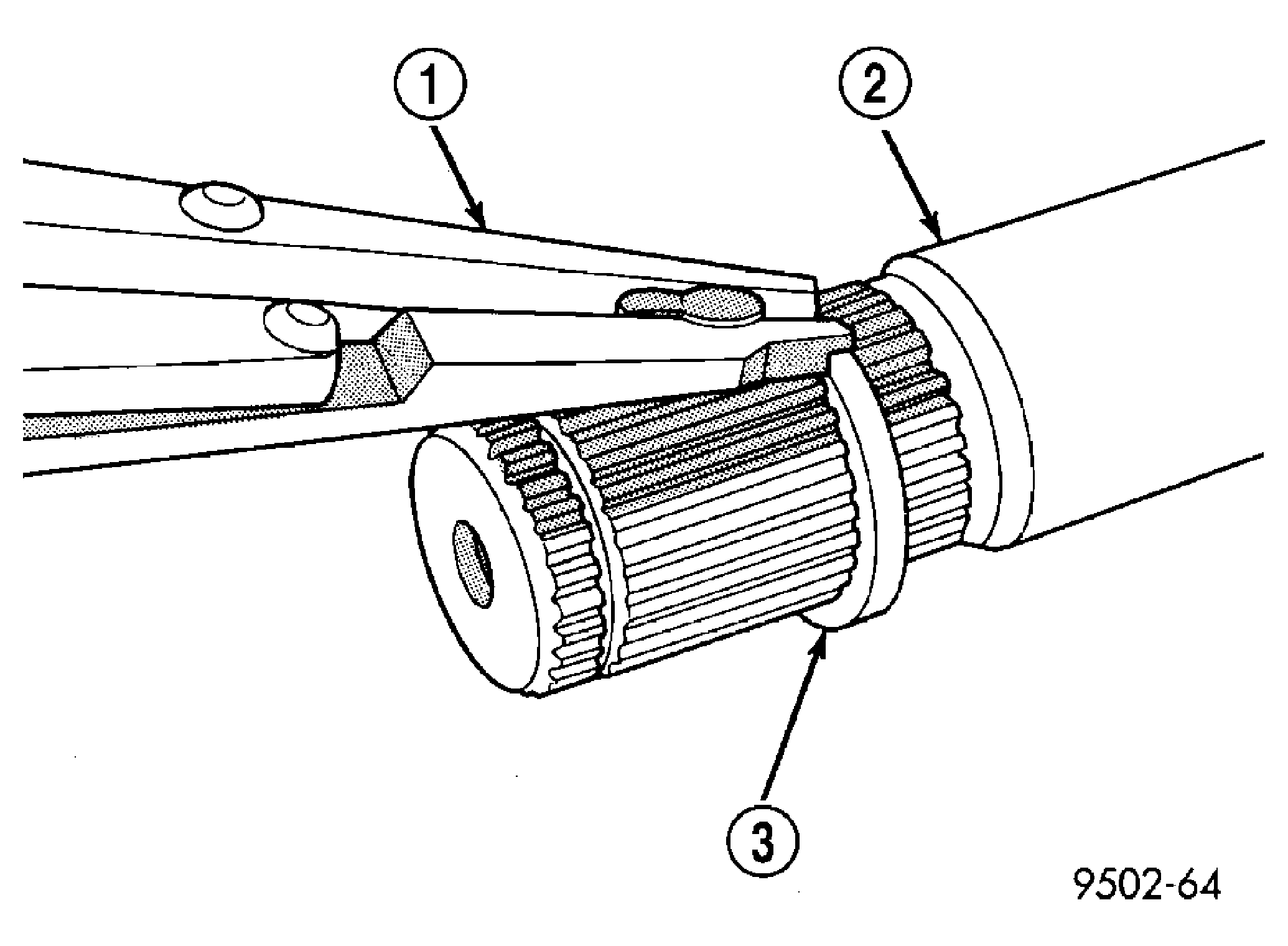

Fig 3: Circlip Removal from Interconnecting Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Remove large circlip from the interconnecting shaft (3) before attempting to remove outer C/V joint sealing boot.
Slide failed sealing boot off interconnecting shaft.
Thoroughly clean and inspect outer C/V joint assembly and interconnecting joint for any signs of excessive wear. If any parts show signs of excessive wear, the driveshaft assembly will require replacement. Component parts of these driveshaft assemblies are not serviceable.
