Rear Axle - 215RII: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Axle Seal Installation

Courtesy of DAIMLERCHRYSLER CORP.

Install new axle seal(s) (1) using Tool 9755 (2).

Fig 2: Halfshaft Removal/Installation
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Use care when installing halfshaft to axle assembly. The halfshaft installation angle should be minimized to avoid damage to seal upon installation.
Using new circlip(s), install halfshaft (1) to rear axle assembly. Use care not to damage axle seals(2). Verify proper installation by pulling outward on joint by hand.

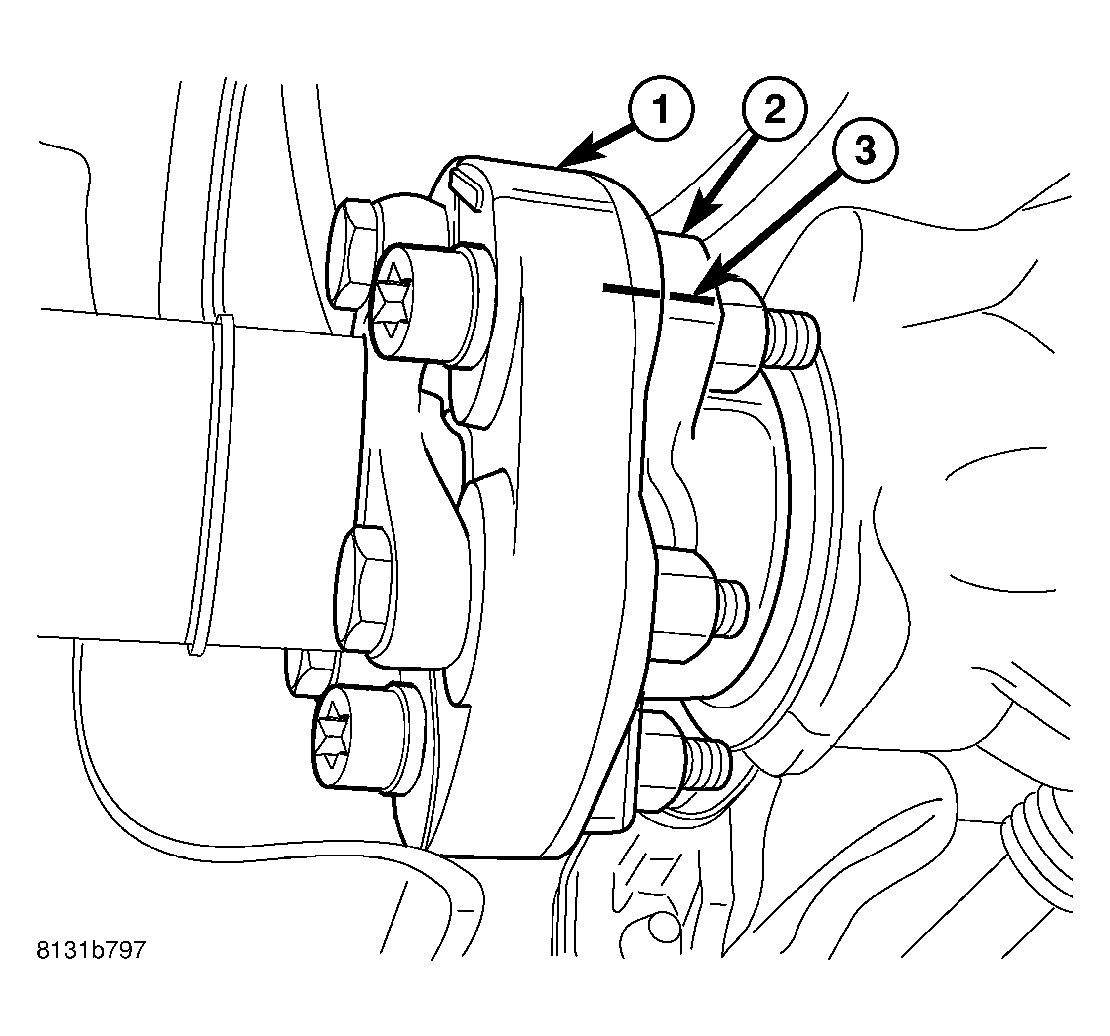

Fig 3: Alignment Marks - Axle End Shown
Courtesy of DAIMLERCHRYSLER CORP.
Raise rear axle assembly into position. Align propeller shaft index marks (3) and start propeller shaft coupler-to-axle bolt/nuts by hand.

Fig 4: Rear Axle-to-Crossmember Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install two rear axle-to-crossmember bolts (1) and torque to 220 N.m (162 ft. lbs.).

Fig 5: Rear Axle Front Isolator
Courtesy of DAIMLERCHRYSLER CORP.
Install rear axle front mount isolator (1) as shown in Fig 5 and torque bolt/nut to 65 N.m (48 ft. lbs.).

Fig 6: Transmission Jack at Rear Axle
Courtesy of DAIMLERCHRYSLER CORP.
Again verify halfshaft inner joints are fully engaged to axle assembly.
Remove transmission jack (1).
If used, remove screw-type under-hoist jack stands (2).

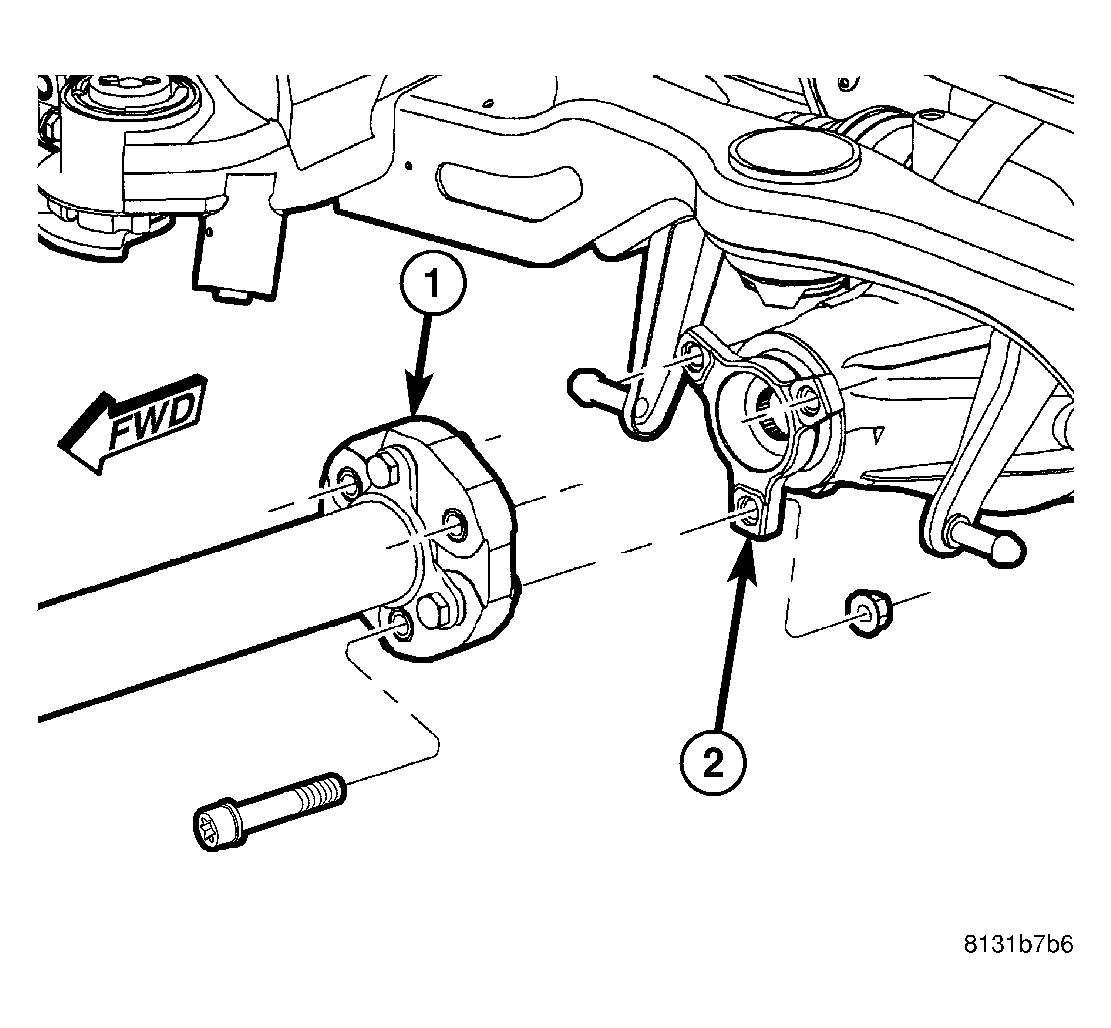

Fig 7: Propeller Shaft at Rear Axle
Courtesy of DAIMLERCHRYSLER CORP.
Torque propeller shaft coupler-to-axle flange bolt/nuts to 58 N.m (43 ft. lbs.).

Fig 8: Rear Axle Fill Plug
Courtesy of DAIMLERCHRYSLER CORP.
Using a 14mm hex, remove rear axle fill plug (1). Fill axle with 1.2L (1.3 qts.) of Mopar® 75W-140 Synthetic Gear & Axle Lubricant. Install fill plug and torque to 50 N.m (37 ft. lbs.).
