Section 7 (Differential & Driveline)
>>
Rear Axle - 210RII
>>
Special Tools - 210 RII Axle
Special Tools - 210 RII Axle
WARNING:
This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Puller 1026
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Installer 6448A
Courtesy of DAIMLERCHRYSLER CORP.

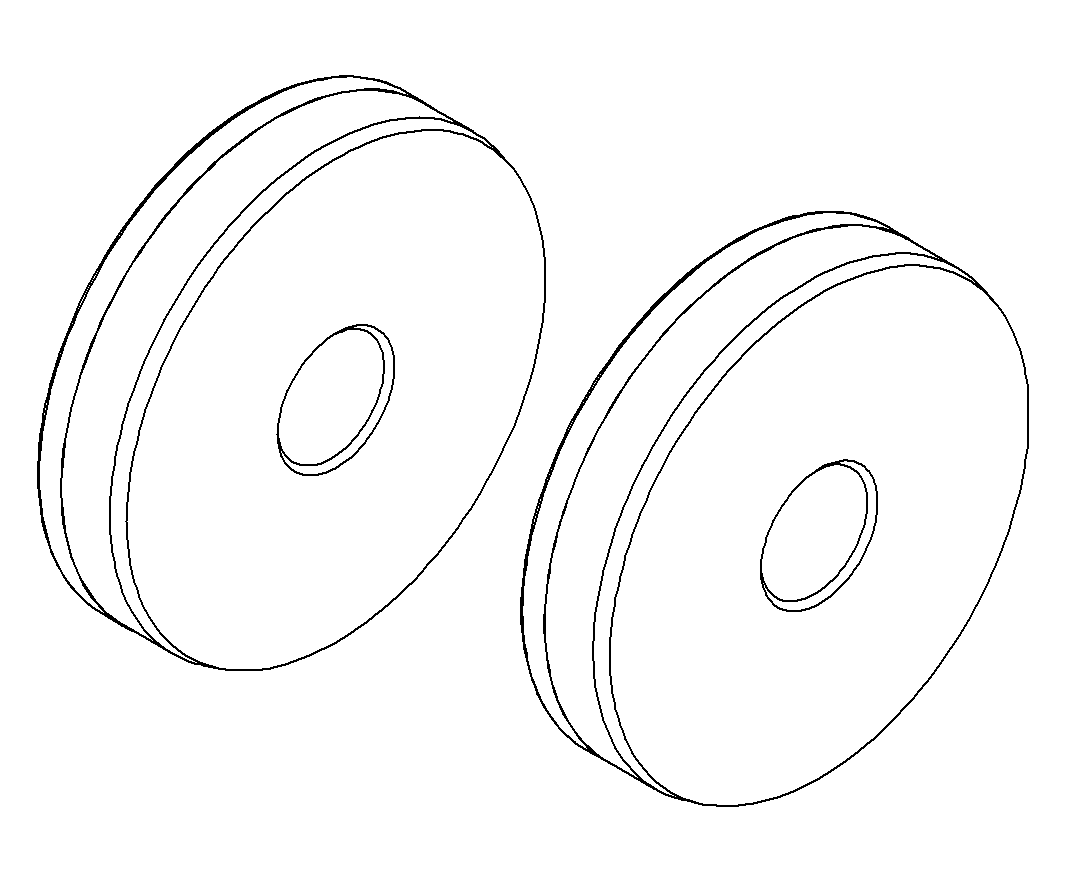

Fig 3: Arbor Discs, 9083
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Remover, 9084
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Pinion Height Gage, 9085
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Installer, 9223
Courtesy of DAIMLERCHRYSLER CORP.
Fig 7: Spreader Adapters 9226
Courtesy of DAIMLERCHRYSLER CORP.
Fig 8: Installer 9231
Courtesy of DAIMLERCHRYSLER CORP.
Fig 9: Removal/Installation Arbor, 9522
Courtesy of DAIMLERCHRYSLER CORP.
Fig 10: Installer, 9523
Courtesy of DAIMLERCHRYSLER CORP.
Fig 11: Dial Indicator 9524
Courtesy of DAIMLERCHRYSLER CORP.
Fig 12: Mounting Plate, 9630
Courtesy of DAIMLERCHRYSLER CORP.
Fig 13: Fixture, 9631
Courtesy of DAIMLERCHRYSLER CORP.
Fig 14: Puller Press, C-293-PA
Courtesy of DAIMLERCHRYSLER CORP.
Fig 15: Adapters, C-293-37
Courtesy of DAIMLERCHRYSLER CORP.
Fig 16: Installer, C-3095-A
Courtesy of DAIMLERCHRYSLER CORP.
Fig 17: Flange Wrench, C-3281
Courtesy of DAIMLERCHRYSLER CORP.
Fig 18: Dial Indicator Set, C-3339-A
Courtesy of DAIMLERCHRYSLER CORP.
Fig 19: Handle, C-4171
Courtesy of DAIMLERCHRYSLER CORP.
Fig 20: Installer, C-4310
Courtesy of DAIMLERCHRYSLER CORP.
Fig 21: Installer, D-146
Courtesy of DAIMLERCHRYSLER CORP.
Fig 22: Remover, D-149
Courtesy of DAIMLERCHRYSLER CORP.
Fig 23: Adapter, Sp-3289
Courtesy of DAIMLERCHRYSLER CORP.
Fig 24: Spreader, W-129-B
Courtesy of DAIMLERCHRYSLER CORP.
