Cooler-Automatic Transmission Oil: Removal: Turbo

WARNING: This page is about a different car, the 2006 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the transaxle cooler lines are removed from the rolled-groove type fittings at the cooler and transaxle, damage to the inner wall of hose will occur. To prevent potential leakage, the cooler hoses and clamps must be replaced.

Remove grille, (Refer to BODY/EXTERIOR/GRILLE - REMOVAL) .
Remove upper radiator closure panel, (Refer to BODY/EXTERIOR/RADIATOR CLOSURE PANEL - REMOVAL) . See Fig 1.
Remove radiator closure panel center brace. See Fig 1.
Remove fasteners attaching transmission oil cooler to air conditioning condenser. See Fig 2.
Disconnect hoses from transmission oil cooler, (Refer to COOLING/TRANSMISSION - STANDARD PROCEDURE) .
Remove transmission oil cooler.

Fig 1: Upper Radiator Closure Panel and Center Brace

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER RADIATOR CLOSURE PANEL

2 - CENTER BRACE

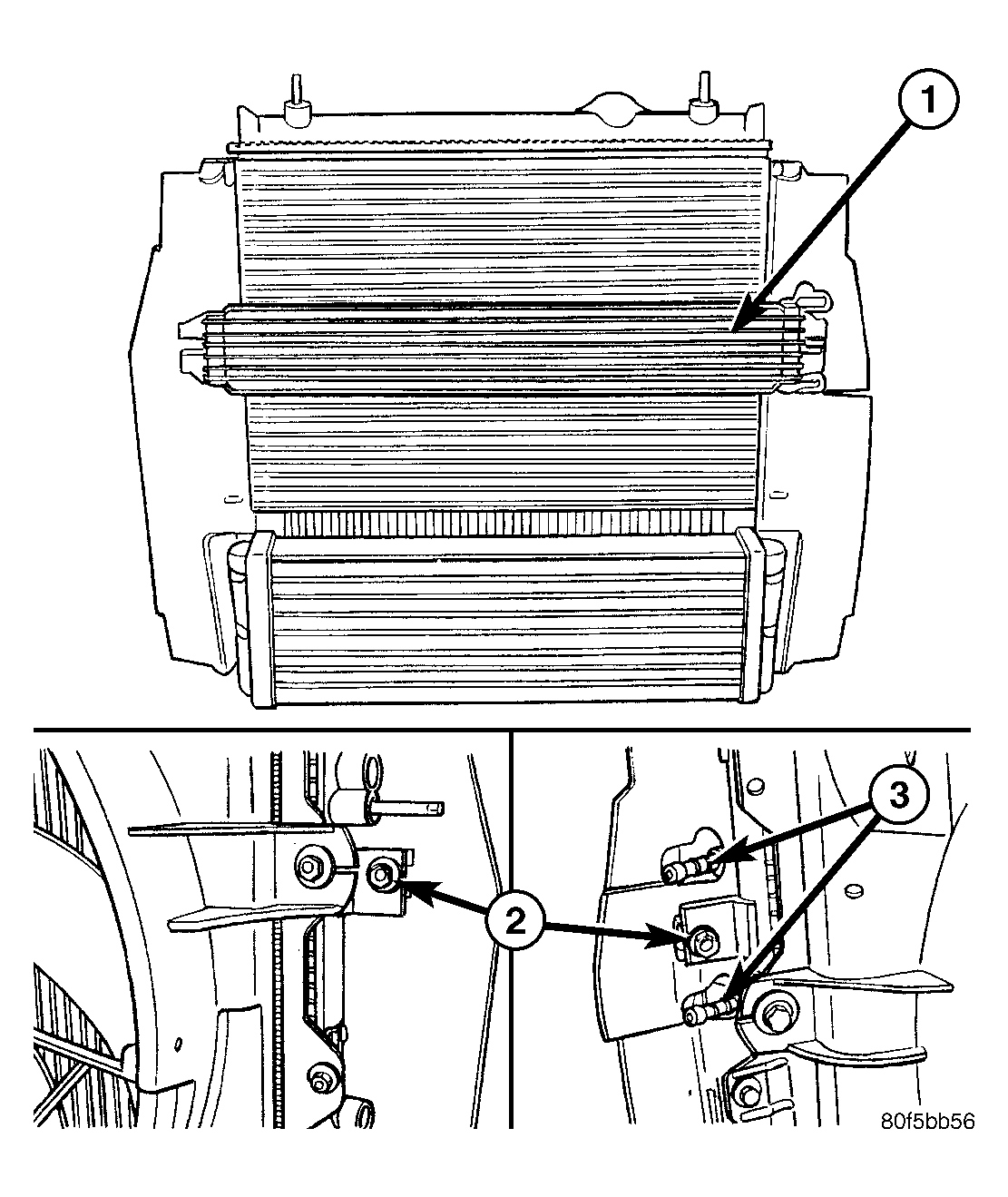

Fig 2: Removing/Installing - Automatic Transmission Oil Cooler - 2.4L Turbo

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRANSMISSION OIL COOLER

2 - ATTACHING SCREWS

3 - HOSE FITTINGS
