Switch-Window/Door Lock: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

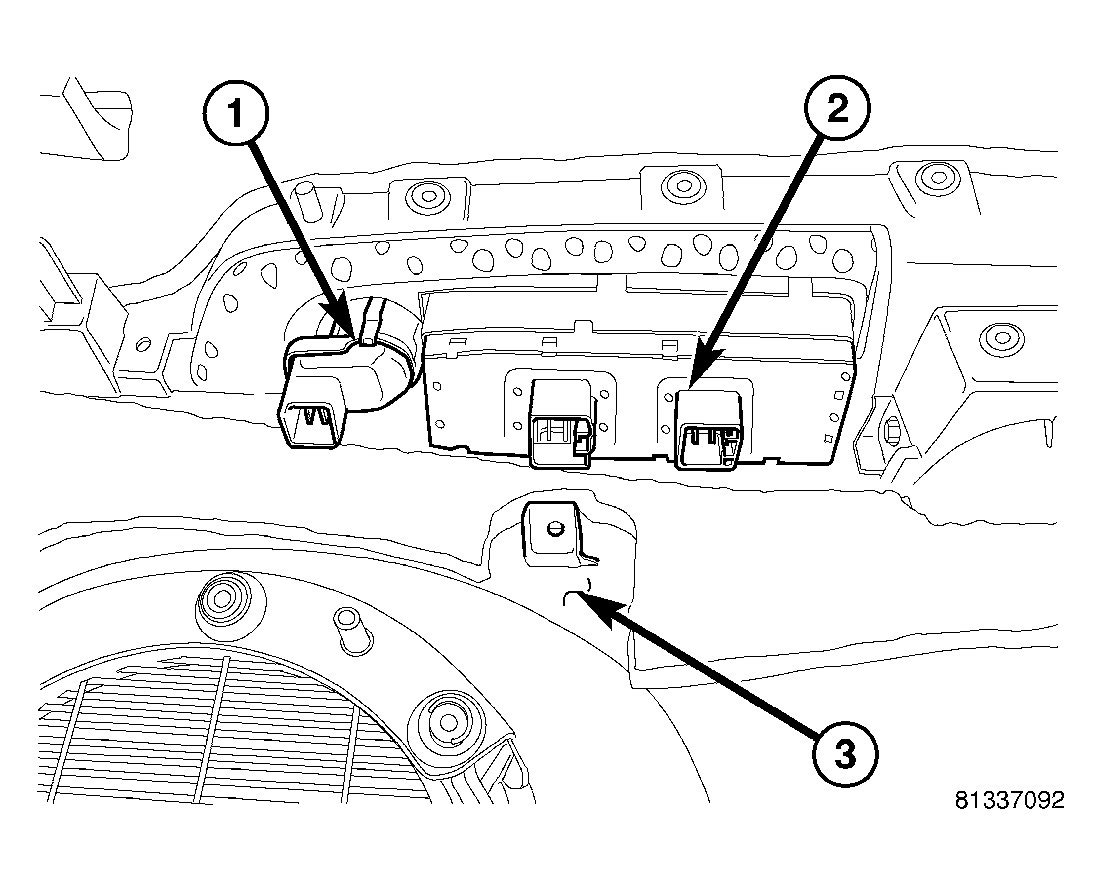

Fig 1: Removing/Installing Window/Lock Switch
GC0016289Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Install window/lock switch (2) to door trim panel and snap into place.
  2. Install door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION) .
  3. Connect battery negative cable.
