Diagnostic Test
- 1) ACTIVE DTC
Ignition on, engine not running.
With a scan tool, read DTCs.
Is the DTC active at this time?
Yes
- Go To step 2).
No
- Refer to INTERMITTENT CONDITION .
- Perform POWERTRAIN VERIFICATION TEST .
- 2) CHECKING PCM CONTROL SIDE FOR THE MDS SOLENOID
Turn the ignition off.
Disconnect the C100 harness connector.
Using a 12-volt test light, jumper from the (Z904) Ground Circuit and the (K451) MDS Solenoid No.1 Control Circuit in the C100 harness connector (PCM side).
Turn the ignition on.
With the scan tool, actuate the MDS Solenoid No.1.
Does the 12-volt test light flash on and off?
Yes
- Go To step 3).
No
- Go To step 4).
- 3) MDS SOLENOID RESISTANCE
Turn the ignition off.
Measure the resistance between the (Z904) Ground Circuit and the (K451) MDS Solenoid No.1 Control Circuit in the C100 harness connector (MDS side).
NOTE: It is important to follow the below temp/resistance values to ensure an accurate reading.MDS SOLENOID RESISTANCE TEMPERATURE VALUE +/- 20° F RESISTANCE (OHMS) +/-.25 ohms 0° F 8.8 ohms 32° F 9.5 ohms 68° F 10.3 ohms 100° F 11 ohms 150° F 12.2 ohms 200° F 13.4 ohms 250° F 14.4 ohms 300° F 15.6 ohms Is the resistance within an acceptable range?
Yes
- Go To step 12).
No
- Go To step 8).
- 4) (Z904) GROUND CIRCUIT OPEN (PCM SIDE)
Turn the ignition off.
Using a 12-volt test light connected to the 12-volts, probe the (Z904) Ground circuit in the C100 harness connector (PCM side).
Does the test light illuminate brightly?
Yes
- Go To step 5).
No
- Repair the open in the (Z904) Ground circuit.
- Perform POWERTRAIN VERIFICATION TEST .
- 5) (K451) MDS SOLENOID NO.1 CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE (PCM SIDE)
Disconnect the PCM harness connector.
Ignition on, engine not running.
Measure the voltage on the (K451) MDS Solenoid No.1 Control circuit in the C100 harness connector.
Does the voltmeter indicate voltage present?
Yes
- Repair the short to battery voltage in the (K451) MDS Solenoid No.1 Control circuit between the PCM harness connector and C100 harness connector.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Go To step 10).
- 6) (K451) MDS SOLENOID NO.1 CONTROL CIRCUIT SHORTED TO GROUND (PCM SIDE)
Turn the ignition off.
Measure the resistance between ground and the (K451) MDS Solenoid No.1 Control circuit in the C100 harness connector.
Is the resistance below 100 ohms?
Yes
- Repair the short to ground in the (K451) MDS Solenoid No.1 Control circuit between the PCM harness connector and the C100 harness connector.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Go To step 7).
- 7) (K451) MDS SOLENOID NO.1 CONTROL CIRCUIT OPEN (PCM SIDE)
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.
Measure the resistance of the (K451) MDS Solenoid No.1 Control circuit from the C100 harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes
- Replace and program the Powertrain Control Module in accordance with the service information.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Repair the open in the (K451) MDS Solenoid No.1 Control circuit between the C100 harness connector and the PCM harness connector.
- Perform POWERTRAIN VERIFICATION TEST .
- 8) (Z904) GROUND CIRCUIT OPEN (MDS SIDE)
Turn the ignition off.
Gain access to the MDS Solenoid.
Disconnect the MDS harness connector.
Measure the resistance of the (Z904) Ground Circuit between the C100 harness connector and the MDS harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go To step 9).
No
- Repair the open in the (Z904) Ground circuit.
- Perform POWERTRAIN VERIFICATION TEST .
- 9) (K451) MDS SOLENOID NO.1 CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE (MDS SIDE)
Ignition on, engine not running.
Measure the voltage on the (K451) MDS Solenoid No.1 Control circuit in the MDS Solenoid No.1 connector.
Does the voltmeter indicate voltage present?
Yes
- Repair the short to battery voltage in the (K451) MDS Solenoid No.1 Control circuit between the C100 harness connector and the MDS connector.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Go To step 10).
- 10) (K451) MDS SOLENOID NO.1 CONTROL CIRCUIT SHORTED TO GROUND (MDS SIDE)
Turn the ignition off.
Measure the resistance between ground and the (K451) MDS Solenoid No.1 Control circuit in the MDS Solenoid No.1 harness connector.
Is the resistance below 100 ohms?
Yes
- Repair the short to ground in the (K451) MDS Solenoid No.1 Control circuit between the C100 harness connector and the MDS harness connector.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Go To step 11).
- 11) (K451) MDS SOLENOID NO.1 CONTROL CIRCUIT OPEN (MDS SIDE)

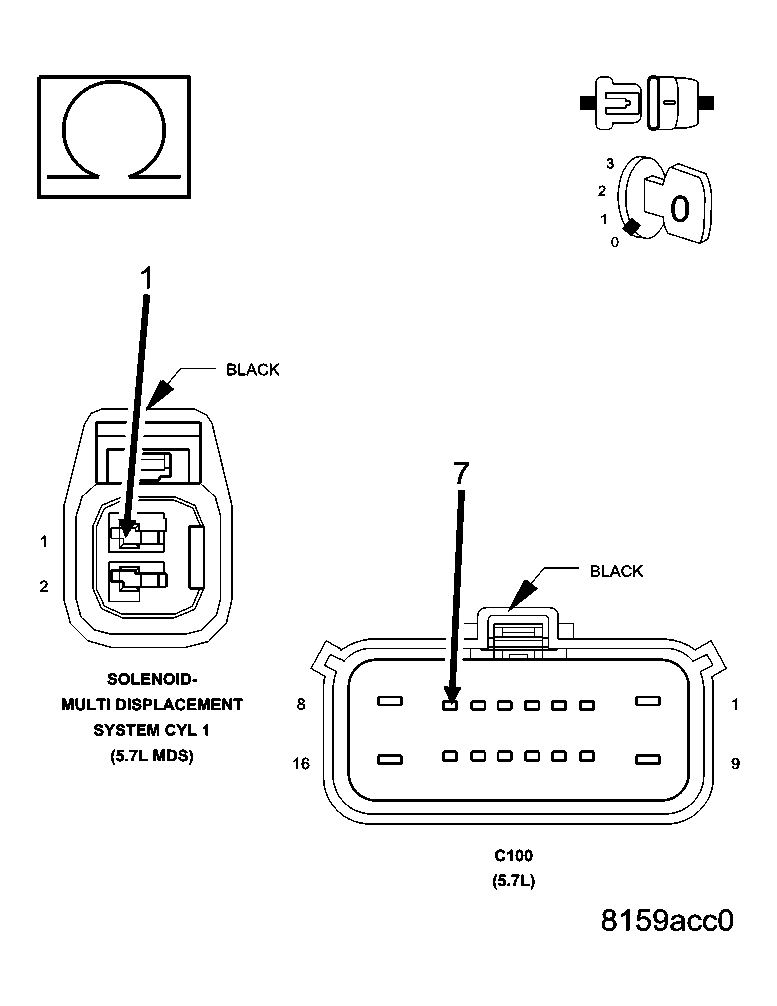

Measure the resistance of the (K451) MDS Solenoid No.1 Control circuit from the MDS Solenoid No.1 harness connector to C100 harness connector.
Is the resistance below 5.0 ohms?
Yes
- Replace the MDS Solenoid in accordance with the Service Information.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Repair the open in the (K451) MDS Solenoid No.1 Control circuit between the C100 harness connector and the MDS harness connector.
- Perform POWERTRAIN VERIFICATION TEST .
- 12)

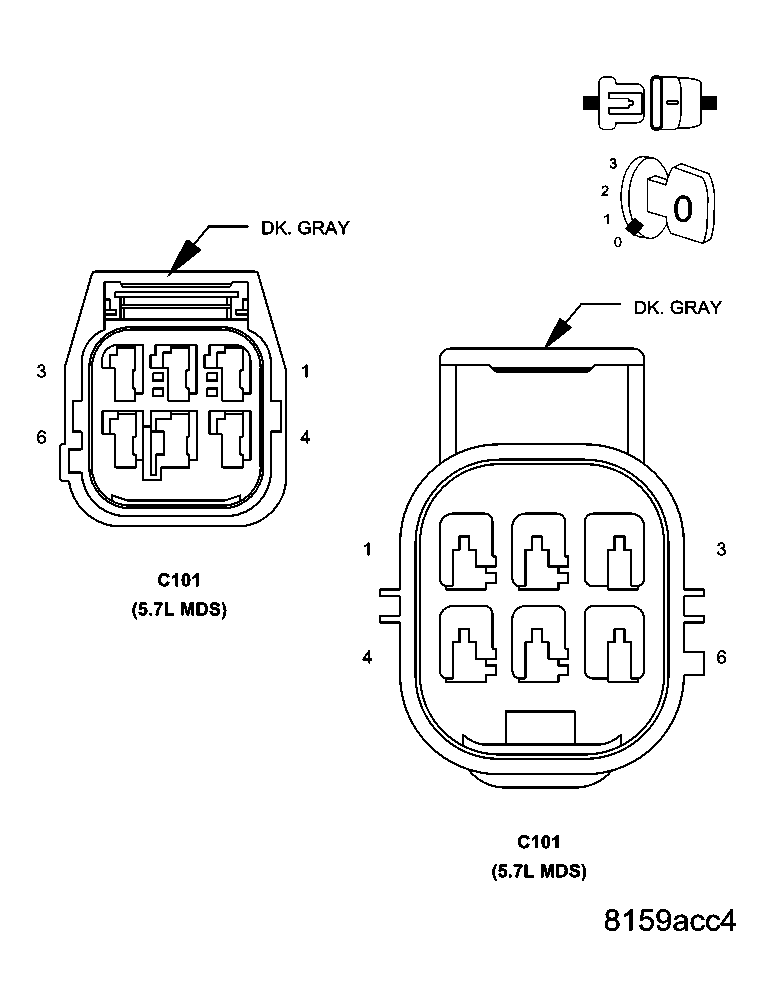

CHECKING HARNESS CONNECTOR C101 AND GROUND CONNECTION G102
Inspect the C101 harness connector.
Ensure the Ground terminal and Control terminal are fastened securely into the connector and there are no signs of corrosion or damage.
Check wiring to terminal connection. Look for an internal broken wire under the insulation.
Inspect the G102 Ground for a tight, clean connection.
Were any problems found?
Yes
- Repair as necessary.
- Perform POWERTRAIN VERIFICATION TEST .
No
- Refer to INTERMITTENT CONDITION .
- Perform POWERTRAIN VERIFICATION TEST .
