Diagnostic Test

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

1) ACTIVE DTC
Ignition on, engine not running.

With a scan tool, read DTC.

Is the DTC active at this time?

Yes
1. Go To 2).
No
1. Refer to INTERMITTENT CONDITION .
2. Perform POWERTRAIN VERIFICATION TEST .
2) MANIFOLD TUNE VALVE SOLENOID OPERATION
Turn the ignition off.

Disconnect the MTV Solenoid harness connector.

Ignition on, engine not running.

Using a 12-volt test light, connect one end to the (K136) MTV Control circuit and the other end the (Z904) Ground circuit in the MTV Solenoid harness connector.

With the scan tool, actuate (Toggle) the MTV Solenoid.

Does the test light illuminate brightly and flash on and off?

Yes
1. Replace the Manifold Tune Valve Solenoid.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Go To 3).
3) MTV SOLENOID (Z904) GROUND CIRCUIT OPEN

Fig 1: Checking Manifold Tune Valve Solenoid Ground Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Measure the resistance between the Ground circuit in the MTV Solenoid harness connector and ground.

Is the resistance below 5.0 ohms?

Yes
1. Go To 4).
No
1. Repair the open in the MTV Solenoid Ground circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
4) (K136) MTV CONTROL CIRCUIT SHORT TO BATTERY VOLTAGE

Fig 2: Checking Manifold Tune Valve Solenoid Control Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off

Disconnect the PCM harness connectors.

Turn the ignition on.

Measure the voltage of the (K136) MTV Control circuit in the MTV Solenoid harness connector.

Does the voltage indicate voltage present?

Yes
1. Repair the short to voltage in the (K136) MTV Control circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Go To 5).
5) (K136) MTV CONTROL CIRCUIT SHORT TO GROUND

Fig 3: Checking Manifold Tune Valve Solenoid Control Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off.

Measure the resistance between the (K136) MTV Control circuit in the MTV Solenoid harness connector and ground.

Is the resistance below 5.0 ohms?

Yes
1. Repair the short to ground in the (K136) MTV Control circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Go To 6).
6) (K136) MTV CONTROL CIRCUIT OPEN

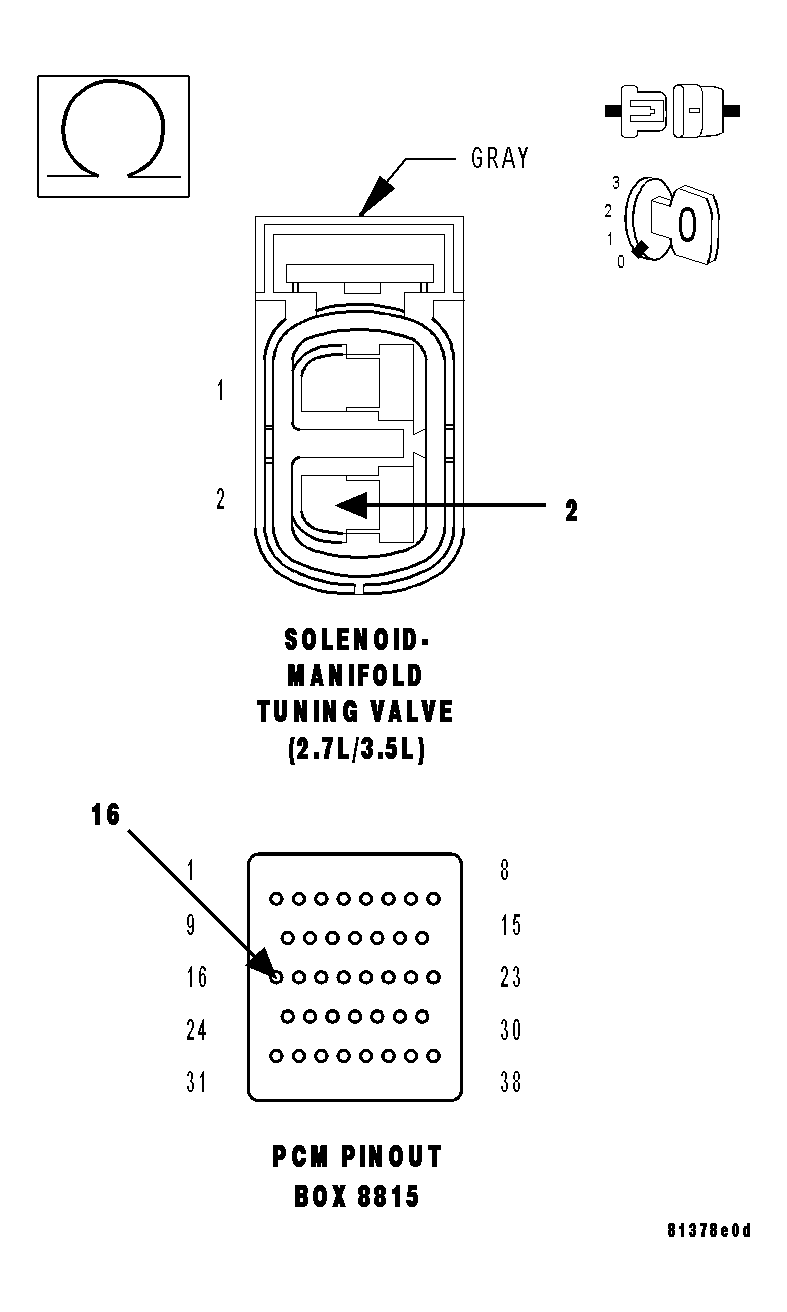

Fig 4: Checking Manifold Tune Valve Solenoid Control Circuit
Courtesy of DAIMLERCHRYSLER CORP.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

Measure the resistance of the (K136) MTV Control circuit between from the MTV Solenoid harness connector to the appropriate terminal of the special tool.

Is the resistance below 5.0 ohms?

Yes
1. Go To 7).
No
1. Repair the open in the (K136) MTV Control circuit.
2. Perform POWERTRAIN VERIFICATION TEST .
3. Go To 7).
7) PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes
1. Repair as necessary.
2. Perform POWERTRAIN VERIFICATION TEST .
No
1. Replace and program the Powertrain Control Module per Service Information.
2. Perform POWERTRAIN VERIFICATION TEST .
