Diagnostic Test

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1)  A/C PRESSURE TRANSDUCER VOLTAGE BELOW 0.6 OF A VOLT
    NOTE: Make sure the A/C refrigerant System is properly charged per Service Information.

    Start the engine.

    With a scan tool, read the A/C Pressure Sensor voltage.

    Is the voltage below 0.6 of a volt?

    Yes

    1. Go To  2).

    No

    1. Refer to INTERMITTENT CONDITION .
    2. Perform POWERTRAIN VERIFICATION TEST .
  2. 2)  (F891) 5-VOLT SUPPLY CIRCUIT
    Fig 1: Checking A/C Pressure Transducer 5-Volt Supply Circuit
    GC0015030Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the A/C Pressure Transducer harness connector.

    Ignition on, engine not running.

    Measure the voltage on the (F891) 5-volt Supply circuit in the A/C Pressure Transducer harness connector.

    Is the voltage between 4.5 to 5.2 volts?

    Yes

    1. Go To  3).

    No

    1. Go To  6).
  3. 3)  A/C PRESSURE TRANSDUCER

    With the scan tool, monitor the A/C Pressure Transducer voltage.

    Is the voltage above 0.6 of a volt?

    Yes

    1. Replace the A/C Pressure Transducer.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go To  4).
  4. 4)  (C18) A/C PRESSURE SIGNAL CIRCUIT SHORTED TO GROUND
    Fig 2: Checking A/C Pressure Transducer Signal Circuit
    GC0015031Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the C1 FCM harness connector.

    Measure the resistance between the (C18) A/C Pressure Signal circuit in the A/C Pressure Transducer harness connector and ground.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (C18) A/C Pressure Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go To  5).
  5. 5)  (C18) A/C PRESSURE SIGNAL CIRCUIT SHORTED TO THE (C918) SENSOR GROUND CIRCUIT
    Fig 3: Checking A/C Pressure Transducer Signal Circuit & Ground Circuit
    GC0015032Courtesy of DAIMLERCHRYSLER CORP.

    Disconnect the C3 FCM harness connector.

    Measure the resistance between the (C18) A/C Pressure Signal circuit and the (C918) Sensor Ground circuit in the A/C Pressure Transducer harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short between the (C918) Sensor Ground circuit and the (C18) A/C Pressure Signal circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go To  8).
  6. 6)  (F891) 5-VOLT SUPPLY CIRCUIT OPEN

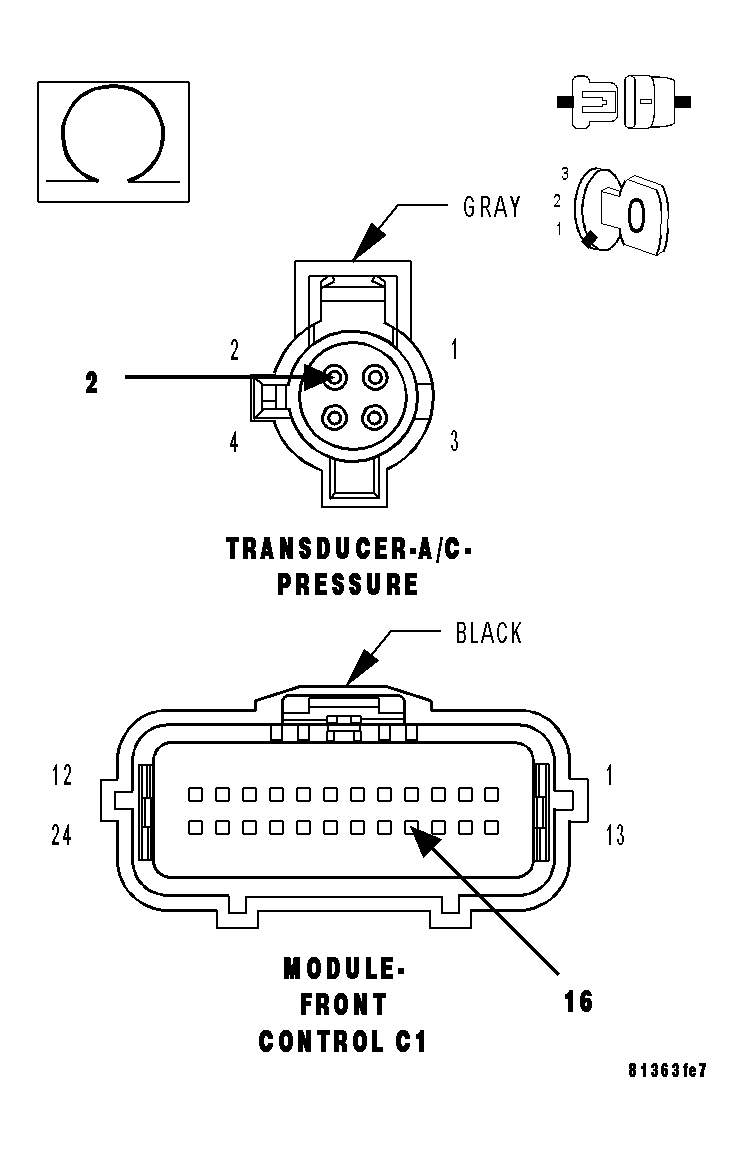

    Fig 4: Checking A/C Pressure Transducer 5-Volt Supply Circuit
    GC0015033Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the C1 FCM harness connector.

    Measure the resistance of the (F891) 5-volt Supply circuit from the A/C Pressure Transducer harness connector to the C1 FCM harness connector.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go To  7).

    No

    1. Repair the open in the (F891) 5-volt Supply circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .
  7. 7)  (F891) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
    Fig 5: Checking A/C Pressure Transducer 5-Volt Supply Circuit
    GC0015034Courtesy of DAIMLERCHRYSLER CORP.

    Measure the resistance between the (F891) 5-volt Supply circuit in the A/C Pressure Transducer harness connector and ground.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (F891) 5-volt Supply circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go To  8).
  8. 8)  FRONT CONTROL MODULE
    NOTE: Before continuing, check the FCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

    Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform BODY VERIFICATION TEST - VER 1 .

    No

    1. Replace and program the Front Control Module per Service Information.
    2. Perform BODY VERIFICATION TEST - VER 1 .
