Circuit Schematic

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

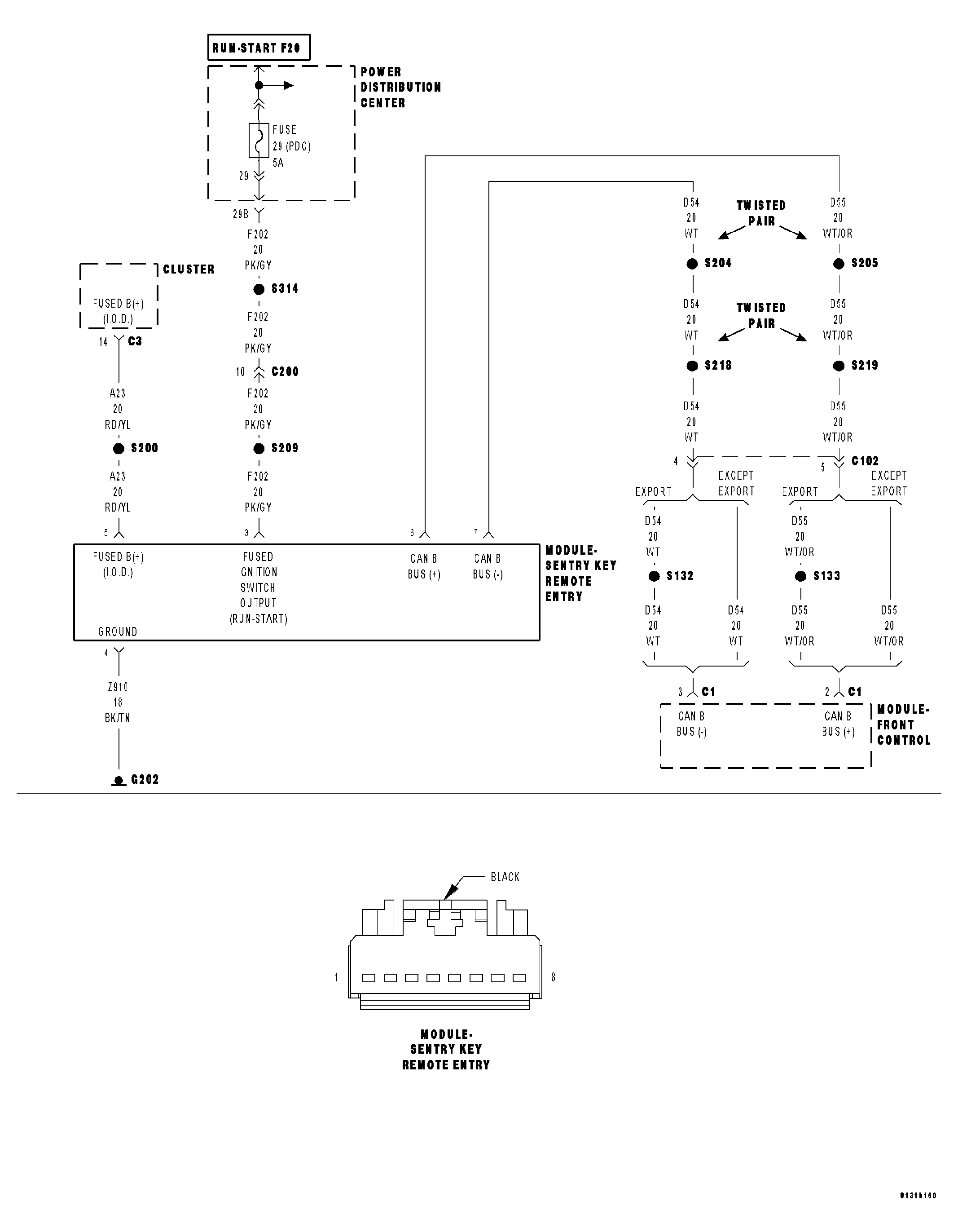

Fig 1: Sentry Key Remote Entry Module Circuit Schematic
GC0015017Courtesy of DAIMLERCHRYSLER CORP.
