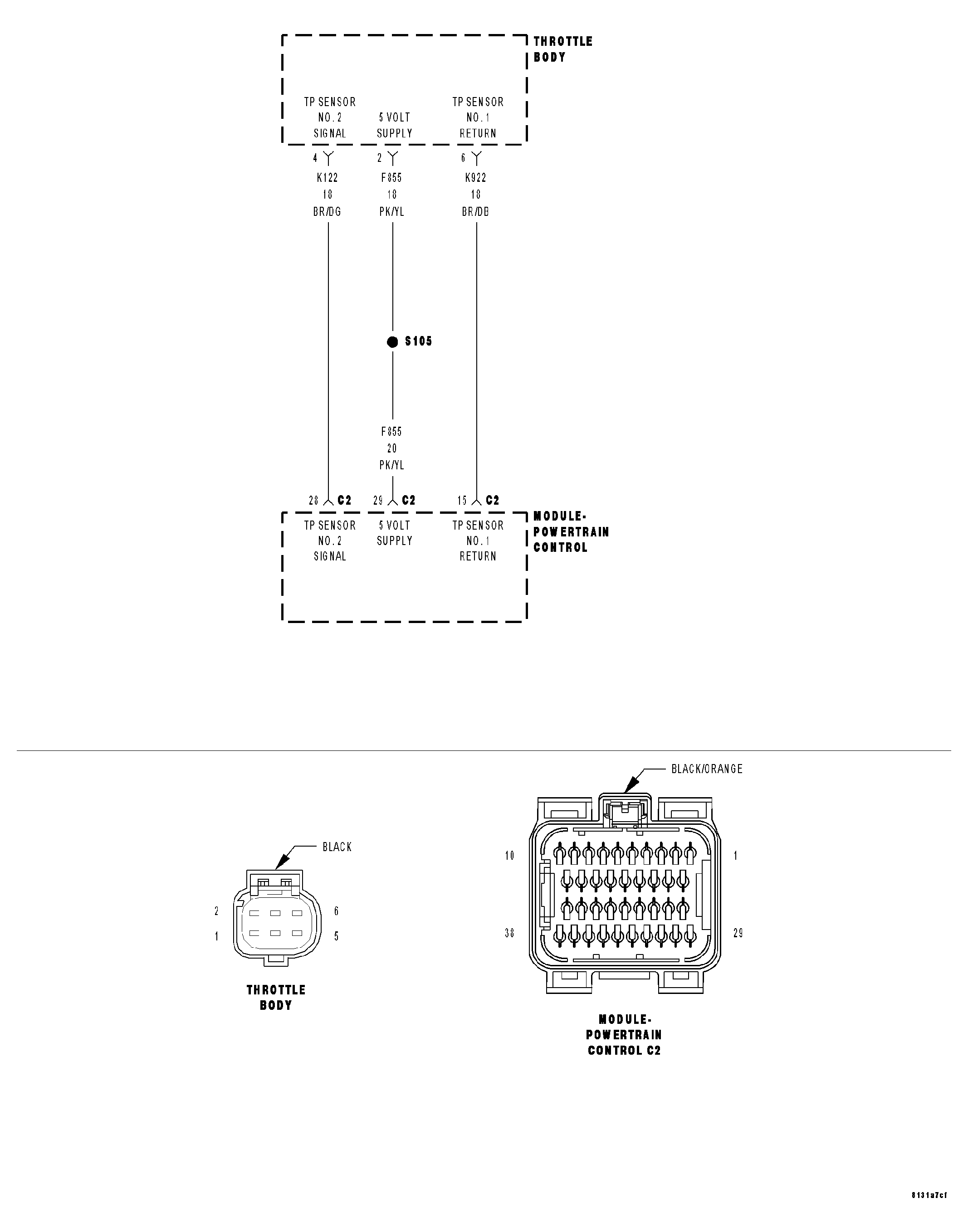

Fig 1: Throttle Position Sensor 2 Circuit Schematic
Courtesy of DAIMLERCHRYSLER CORP.
For a complete Engine wiring diagram refer to appropriate Wiring Diagram article.
