Diagnostic Test

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1)  ACTIVE DTC

    Ignition on, engine not running.

    With a scan tool, read DTCs.

    Is the DTC active at this time?

    Yes

    1. Go To  2).

    No

    1. Refer to INTERMITTENT CONDITION .
    2. Perform POWERTRAIN VERIFICATION TEST .
  2. 2)  (K33) ASD RELAY OUTPUT 2 CIRCUIT
    Fig 1: Checking Fuel Injector 1 Supply Circuit
    GC0014860Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the No.1 Fuel Injector harness connector.

    Ignition on, engine not running.

    With the scan tool, actuate the ASD Relay.

    Using a 12-volt test light connected to ground, backprobe the (K343) ASD Relay Output 2 circuit in the Fuel Injector harness connector.

    Does the test light illuminate brightly?

    Yes

    1. Go To  3).

    No

    1. Repair the excessive resistance or short to ground in the (K343) ASD Relay Output 2 circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .
  3. 3)  FUEL INJECTOR
    Fig 2: Checking Fuel Injector 1 Control Circuit
    GC0014861Courtesy of DAIMLERCHRYSLER CORP.

    Using a 12-volt test light connected to 12-volts, backprobe the (K11) Injector Control No.1 circuit.

    With the scan tool, actuate the Fuel Injector.

    What is the state of the test light during the actuation?

    Brightly Blinking.

    1. Replace the Fuel Injector.
    2. Perform POWERTRAIN VERIFICATION TEST .

    ON Constantly.

    1. Go To  4).

    OFF Constantly.

    1. Go To  5).
  4. 4)  (K11) INJECTOR CONTROL NO.1 CIRCUIT SHORTED TO GROUND
    Fig 3: Checking Fuel Injector 1 Control Circuit
    GC0014862Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the PCM harness connectors.

    Measure the resistance between ground and the (K11) Injector Control No.1 circuit in the Injector harness connector.

    Is the resistance below 100 ohms?

    Yes

    1. Repair the short to ground in the (K11) Injector Control No.1 circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Go To  6).
  5. 5)  (K11) INJECTOR CONTROL NO.1 CIRCUIT OPEN

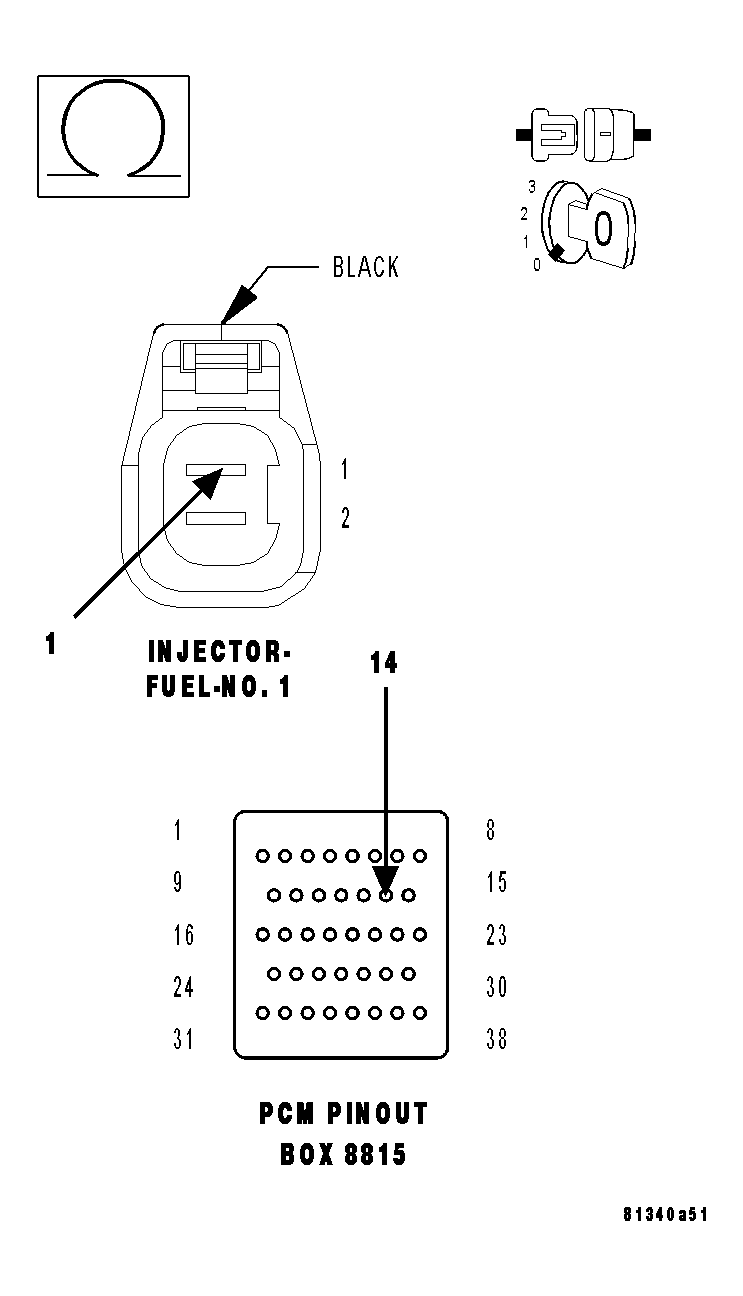

    Fig 4: Checking Fuel Injector 1 Control Circuit
    GC0014863Courtesy of DAIMLERCHRYSLER CORP.

    Turn the ignition off.

    Disconnect the PCM harness connectors.

    CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

    Measure the resistance of the (K11) Injector Control No.1 circuit from the Fuel Injector harness connector to the appropriate terminal of special tool #8815.

    Is the resistance below 5.0 ohms?

    Yes

    1. Go To  6).

    No

    1. Repair the open in the (K11) Injector Control No.1 circuit.
    2. Perform POWERTRAIN VERIFICATION TEST .
  6. 6)  PCM
    NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.

    Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

    Were there any problems found?

    Yes

    1. Repair as necessary.
    2. Perform POWERTRAIN VERIFICATION TEST .

    No

    1. Replace and program the Powertrain Control Module per Service Information.
    2. Perform POWERTRAIN VERIFICATION TEST .
