Diagnostic Test

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

1) CHECK FOR AN ACTIVE DTC
Turn the ignition on.

With the scan tool, record and erase DTCs.

Activate the rear wiper switch.

With the scan tool, read DTCs.

Is the DTC active?

Yes
1. Go To 2).
No
1. The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
2. Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1) .
2) CHECK THE (E22) INDICATOR DIMMER SIGNAL CIRCUIT FOR AN OPEN

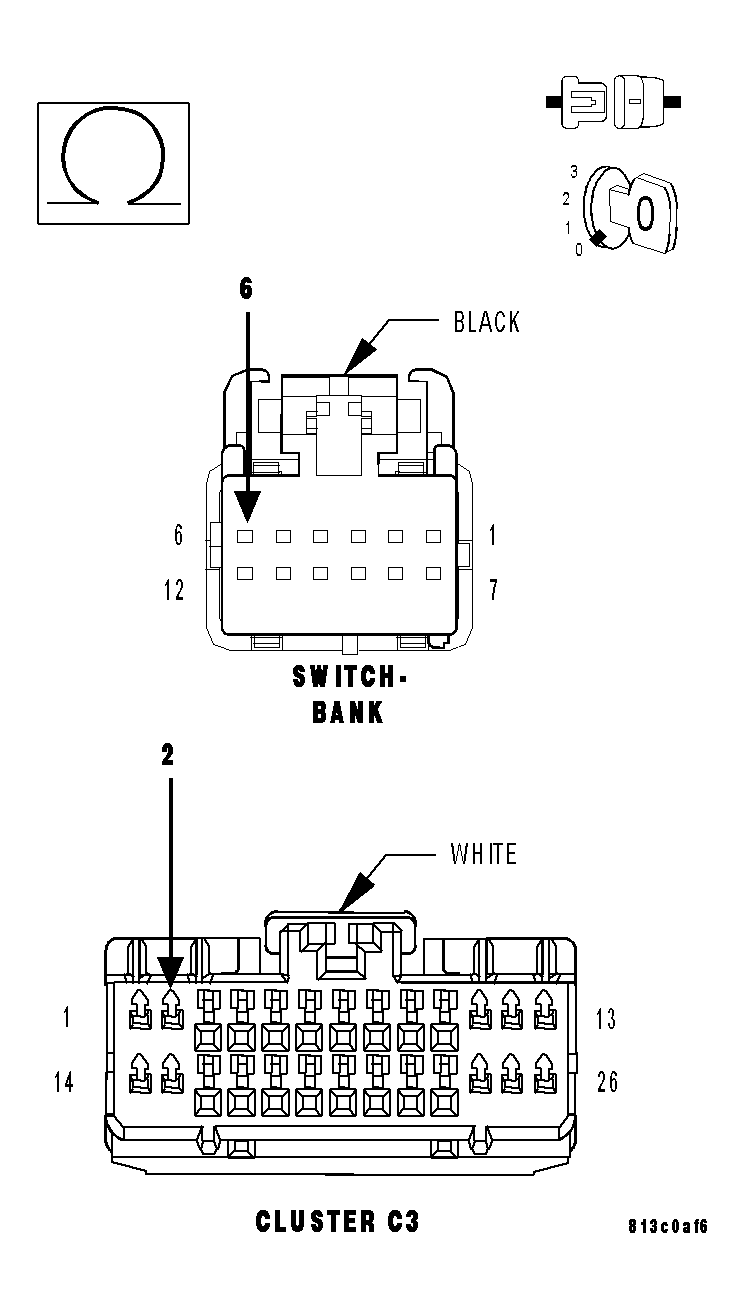

Fig 1: Measuring Resistance Of Indicator Dimmer Signal Circuit
Courtesy of DAIMLERCHRYSLER CORP.

Turn the ignition off.

Disconnect the Instrument Cluster C3 harness connector.

Disconnect the Switch Bank harness connector.

Measure the resistance of the (E22) Indicator Dimmer Signal Circuit between the Instrument Cluster C3 Harness connector and the Switch Bank harness connector.

Is the resistance above 5.0 ohms?

Yes
1. Repair the (E22) Indicator Dimmer Signal Circuit for an open.
2. Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1) .
No
1. Replace the Instrument Cluster in accordance with the service information.
2. Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1) .
