A/C Compressor
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

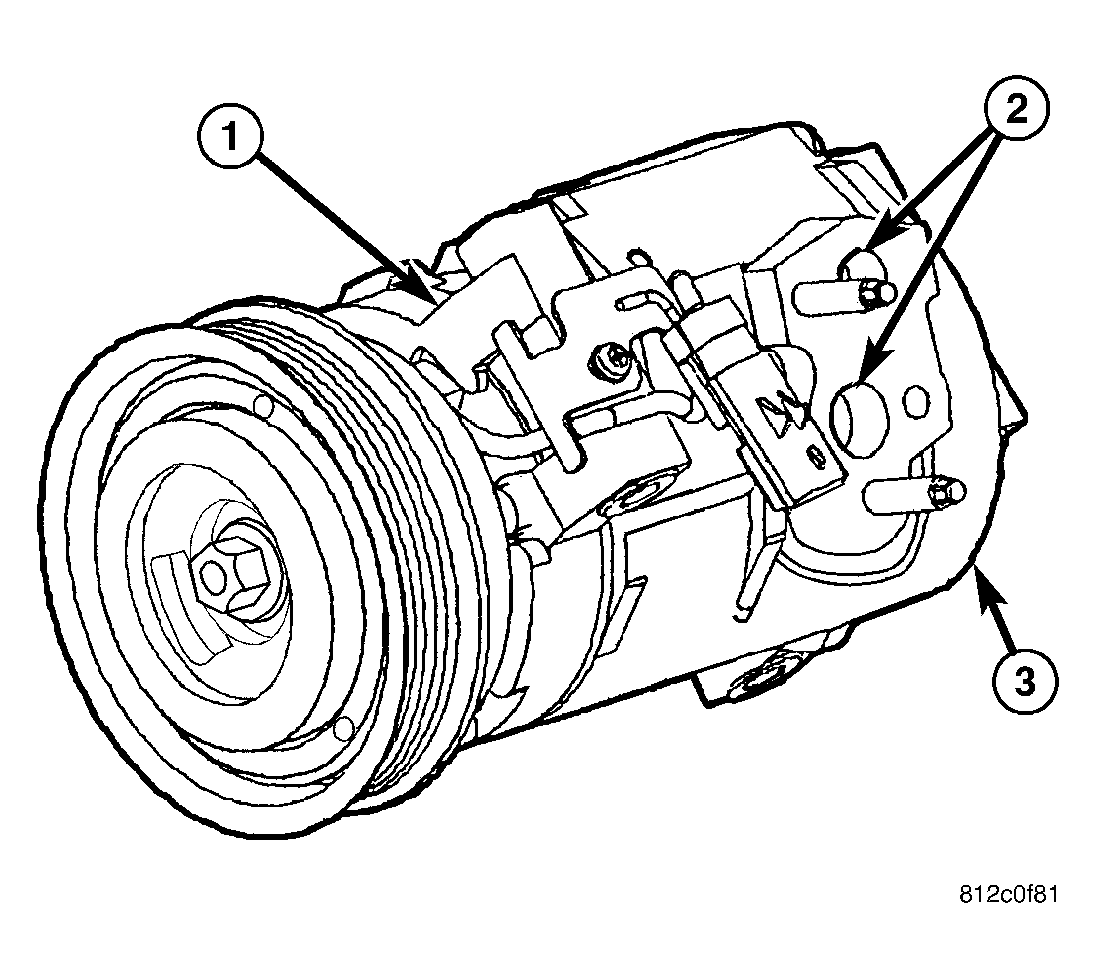

The A/C system uses a Denso 10S17C ten cylinder, double-acting swash plate-type A/C compressor (1). This A/C compressor has a fixed displacement of 170 cubic centimeters (10.374 cubic inches), and has both the suction and discharge ports (2) located on the cylinder head (3) at the rear of the compressor.
A label identifying the use of R-134a refrigerant is located on the A/C compressor.
