NOTE: The instrument panel air outlet barrels are retained to the pivots within the air outlets by a snap fit.

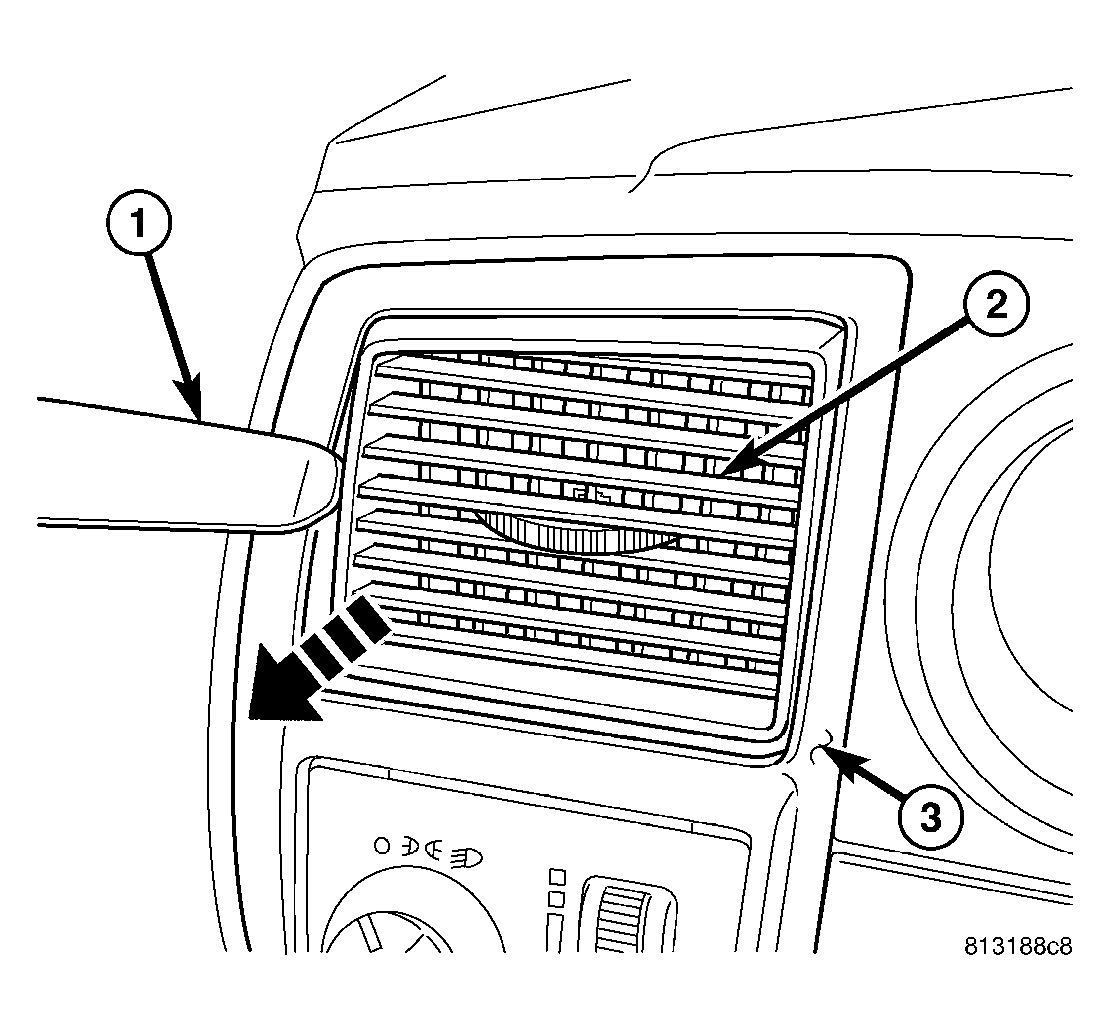

Fig 1: Removing Air Outlet Barrel

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: LHD model shown. RHD model similar.

Using a trim stick or another suitable wide flat-bladed tool (1), gently pry the air outlet barrel(s) (2) out of the instrument panel air outlet(s) (3) as required.
