WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LHD model shown in illustration. RHD model similar.

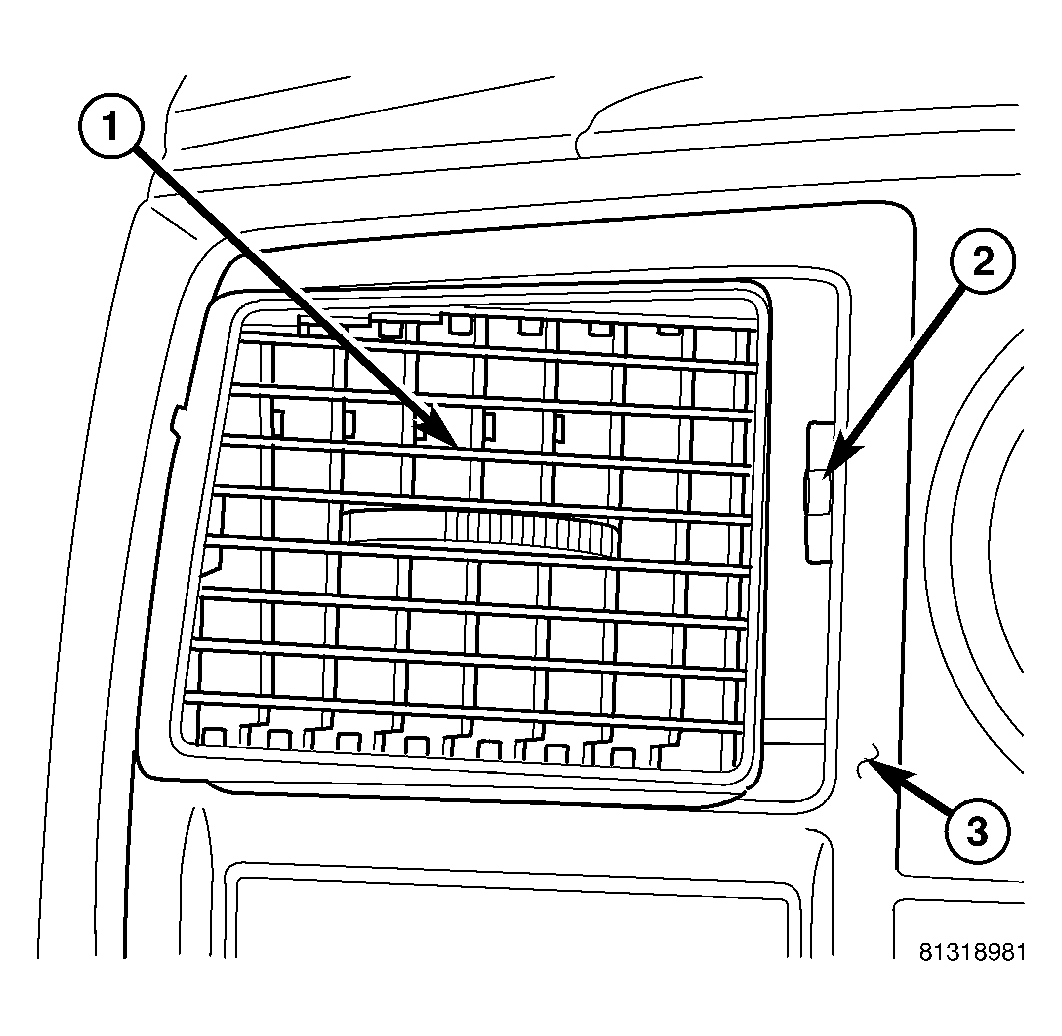

Fig 1: Install Air Outlet Barrel Onto Right Side Pivot Shaft

Courtesy of DAIMLERCHRYSLER CORP.

Install the air outlet barrel (1) onto the pivot shaft (2) on the right side of the instrument panel air outlet (3).

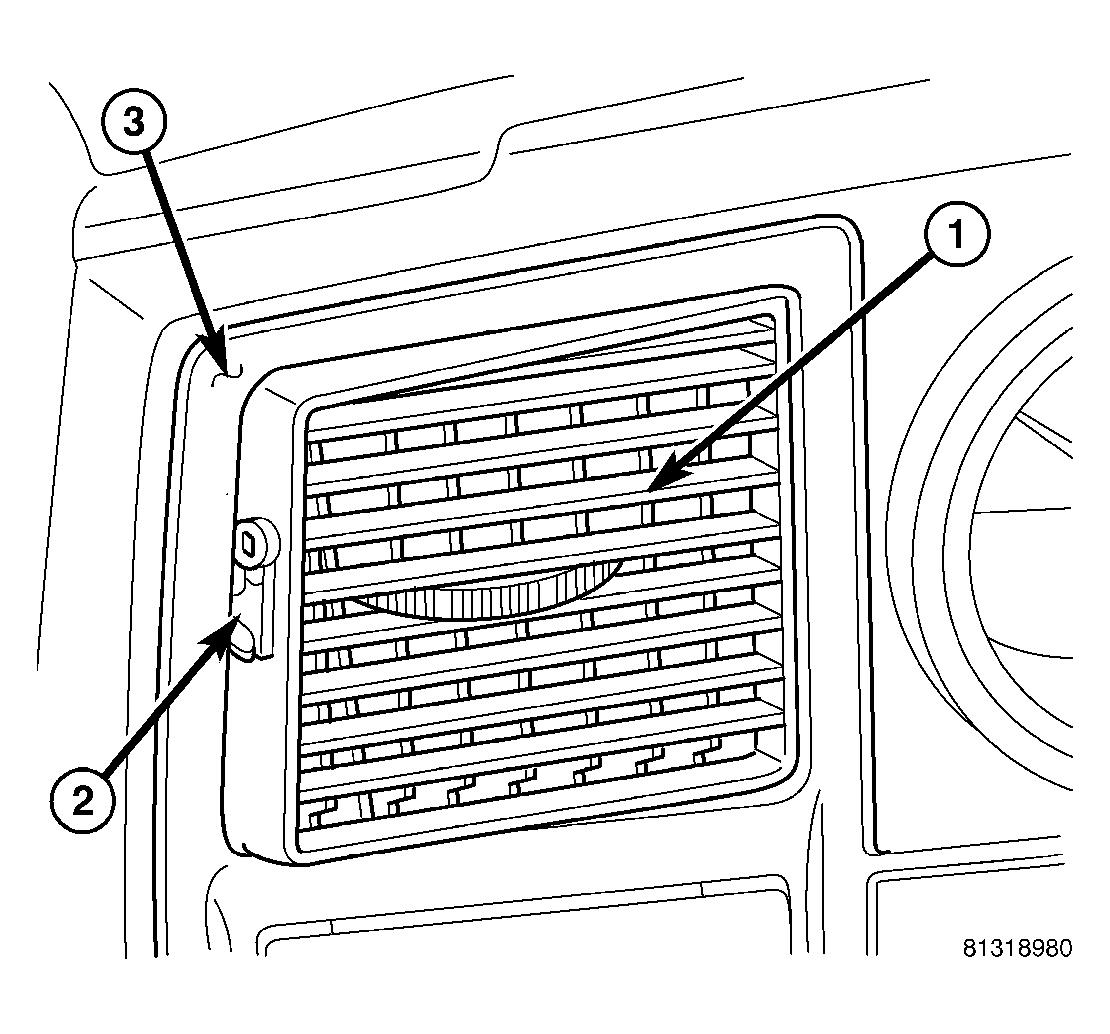

Fig 2: Install Air Outlet Barrel Onto Left Side Pivot Shaft
Courtesy of DAIMLERCHRYSLER CORP.
Gently push the air outlet barrel (1) onto the pivot shaft (2) on the left side of the instrument panel air outlet (3).
