Air Outlet - Dodge

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

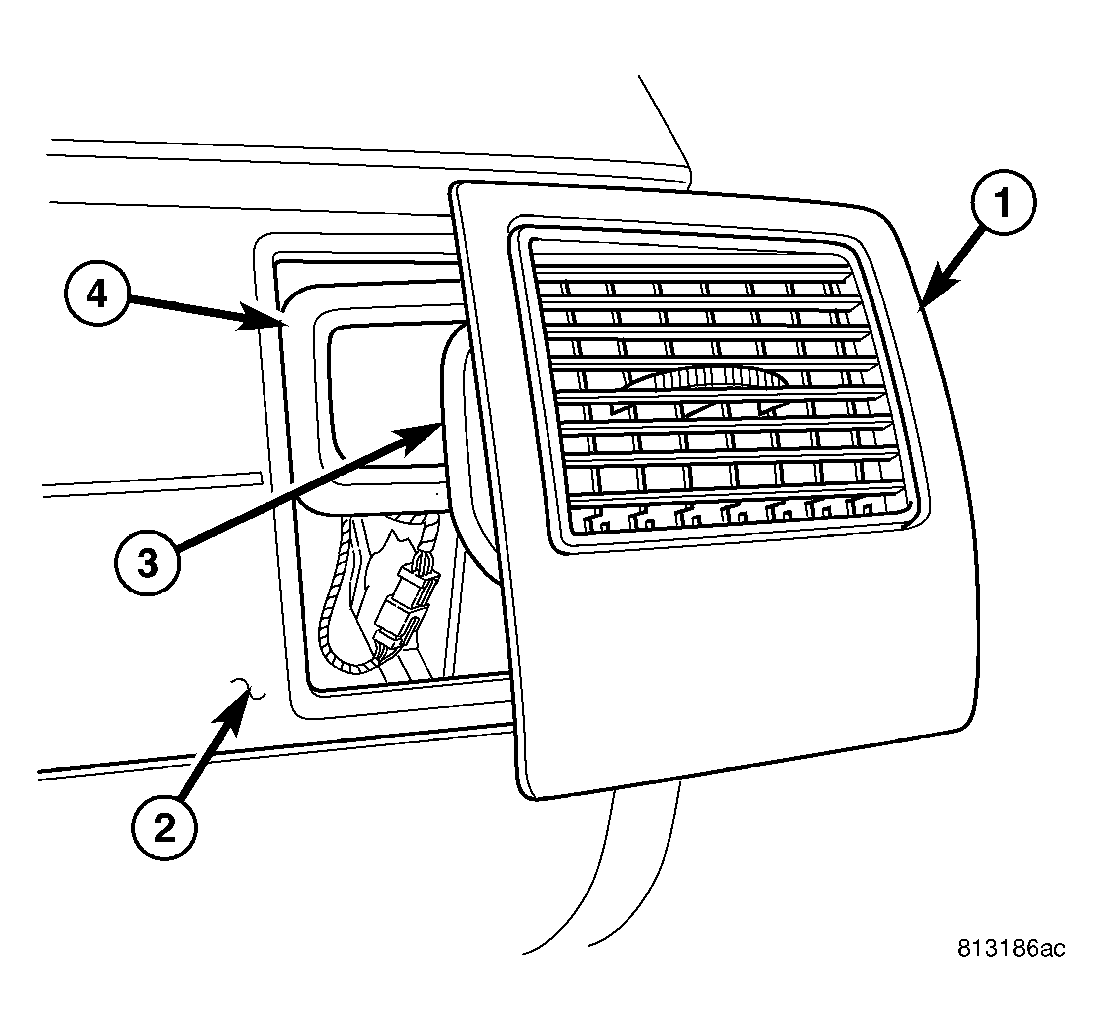

Fig 1: Installing Air Outlet

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: LHD model shown. RHD model similar.

Position the air outlet (1) into its location on the outboard passenger side of the instrument panel (2).
NOTE: Make sure that the air outlet is properly aligned to the duct within the instrument panel opening and that the foam seal on the outlet is properly installed.
Align the air outlet foam seal (3) with the duct in the instrument panel (4) and gently push on the air outlet until the snap clip retainers on the outlet are fully engaged to the instrument panel.
