Section 46 (HVAC System (Service Information)): Distribution: Motor-Blower: Description
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

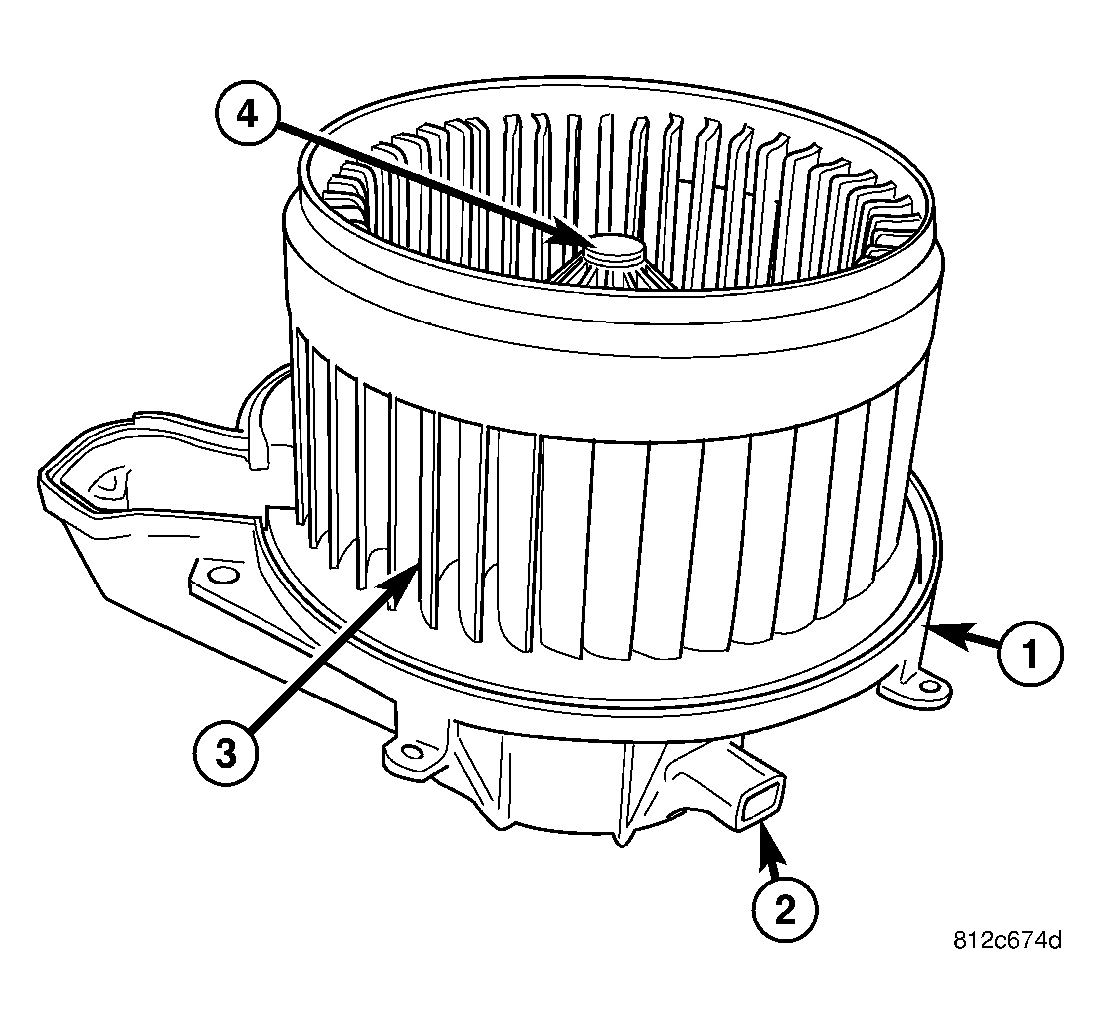

The blower motor (1) is a 12-volt, direct current (DC) motor mounted within a plastic housing with an integral wire harness connector (2) and squirrel cage-type blower wheel (3) that is secured to the blower motor shaft (4). The blower motor wheel is located in the HVAC air inlet housing which is mounted to the passenger side end of the HVAC housing. The blower motor can be accessed for service from underneath the instrument panel.
