Relay-A/C Clutch: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

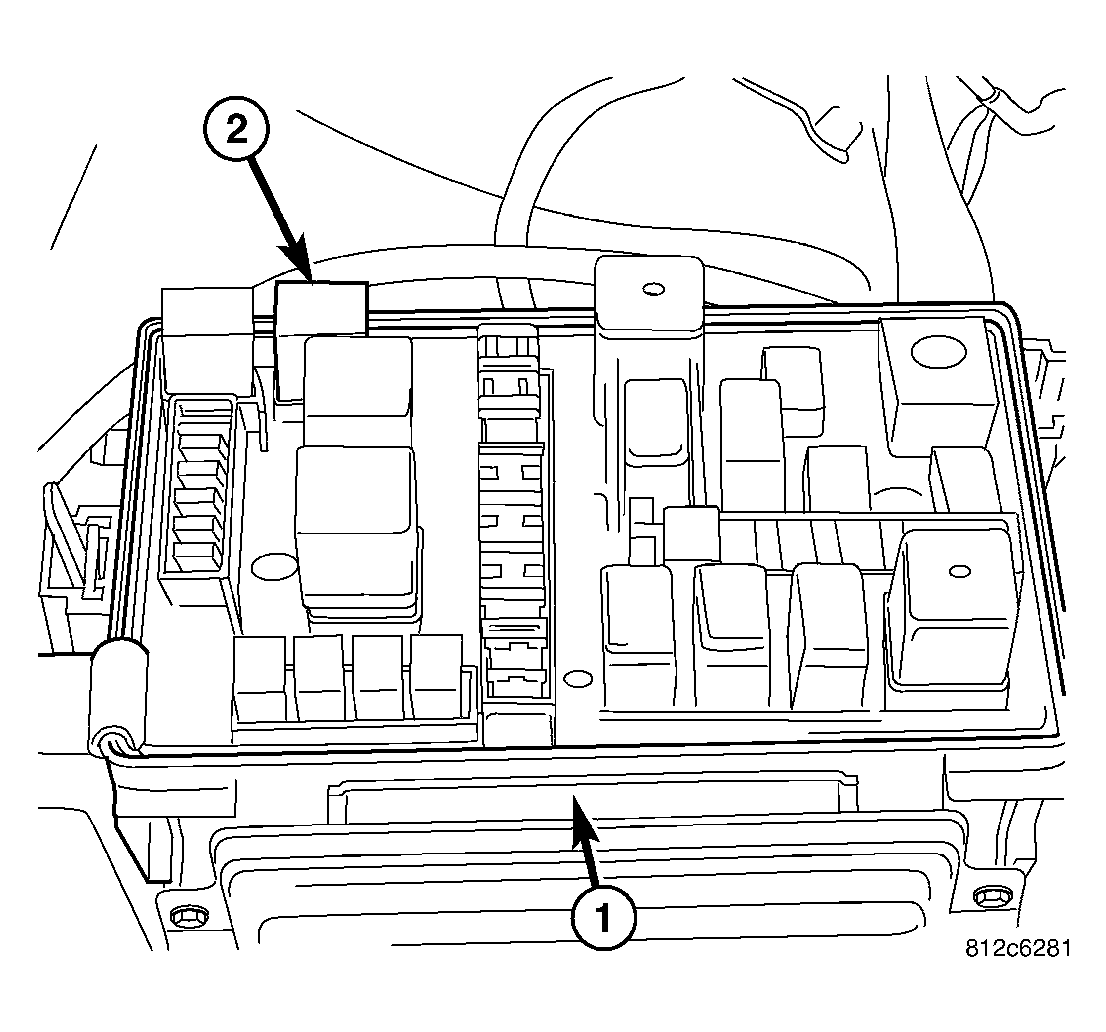

Fig 1: Relay-A/C Clutch
GC0013934Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the negative battery cable.
  2. Open the cover of the integrated power module (IPM) (1) located in the engine compartment.
  3. Remove the A/C clutch relay (2) from the IPM.
