Front Door Speaker

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

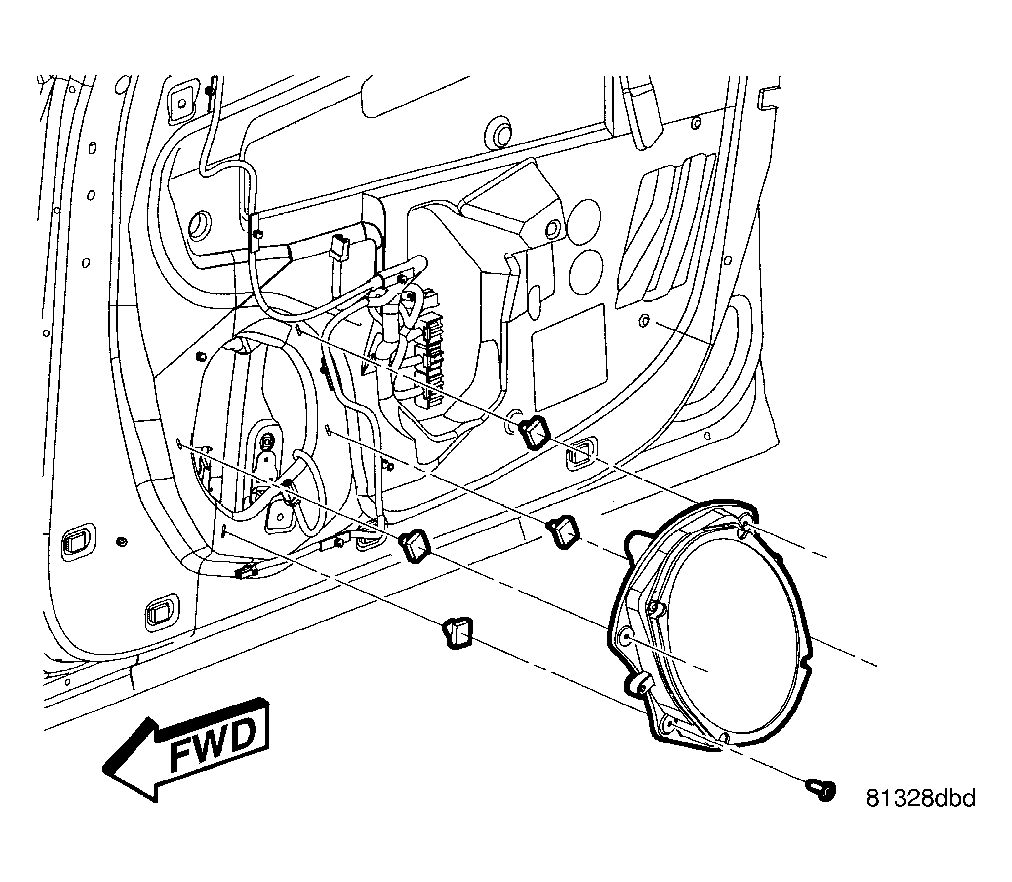

Fig 1: Front Door Speaker
GC0015579Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Disconnect and isolate the battery negative cable.
  2. Remove front door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - REMOVAL) .
  3. Remove mounting fasteners.
  4. Disconnect electrical harness connector and remove speaker.
