Rear Speaker - Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

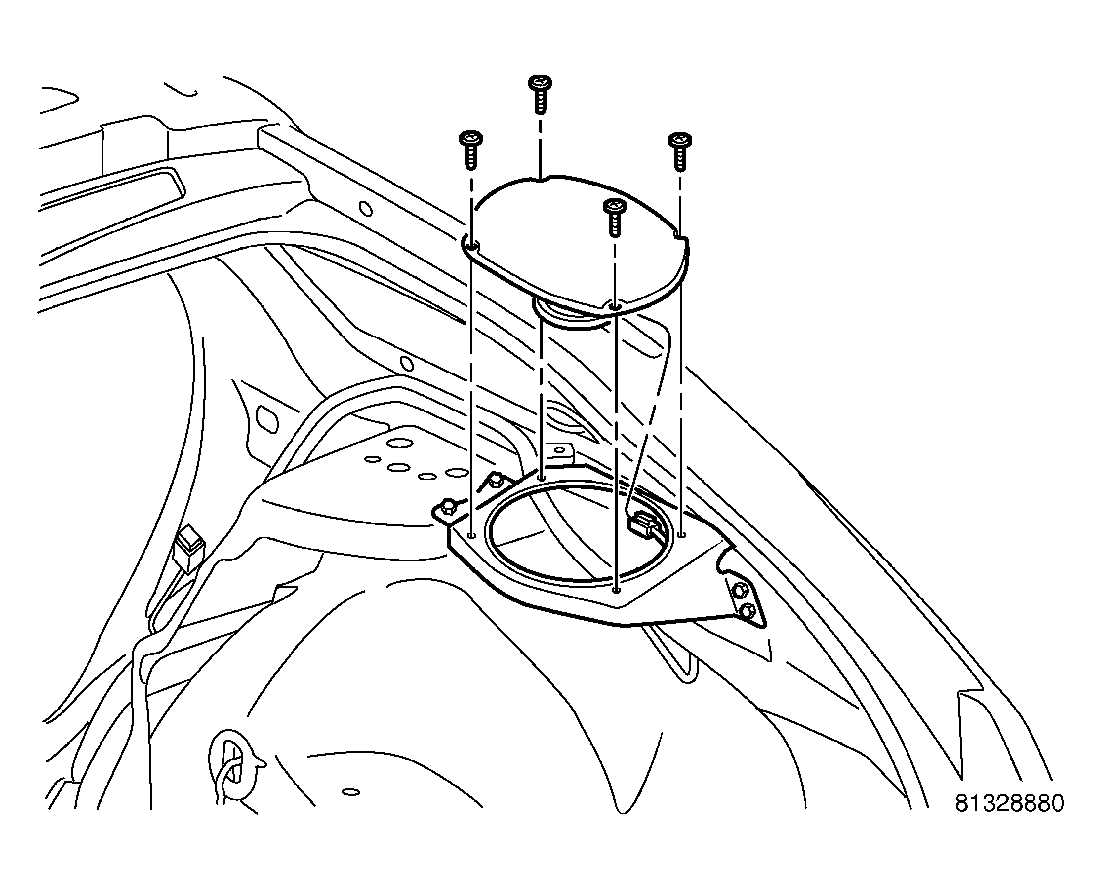

Fig 1: Rear Speaker
GC0015582Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Connect electrical harness connector and position speaker.
  2. Install and tighten mounting fasteners.
  3. Install the speaker grille trim (Refer to BODY/INTERIOR/SPEAKER BOX TRIM COVER - INSTALLATION) .
  4. Connect the battery negative cable.
