Section 40 (Audio System (Service Information)): Receiver-Satellite: Removal: Sedan

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

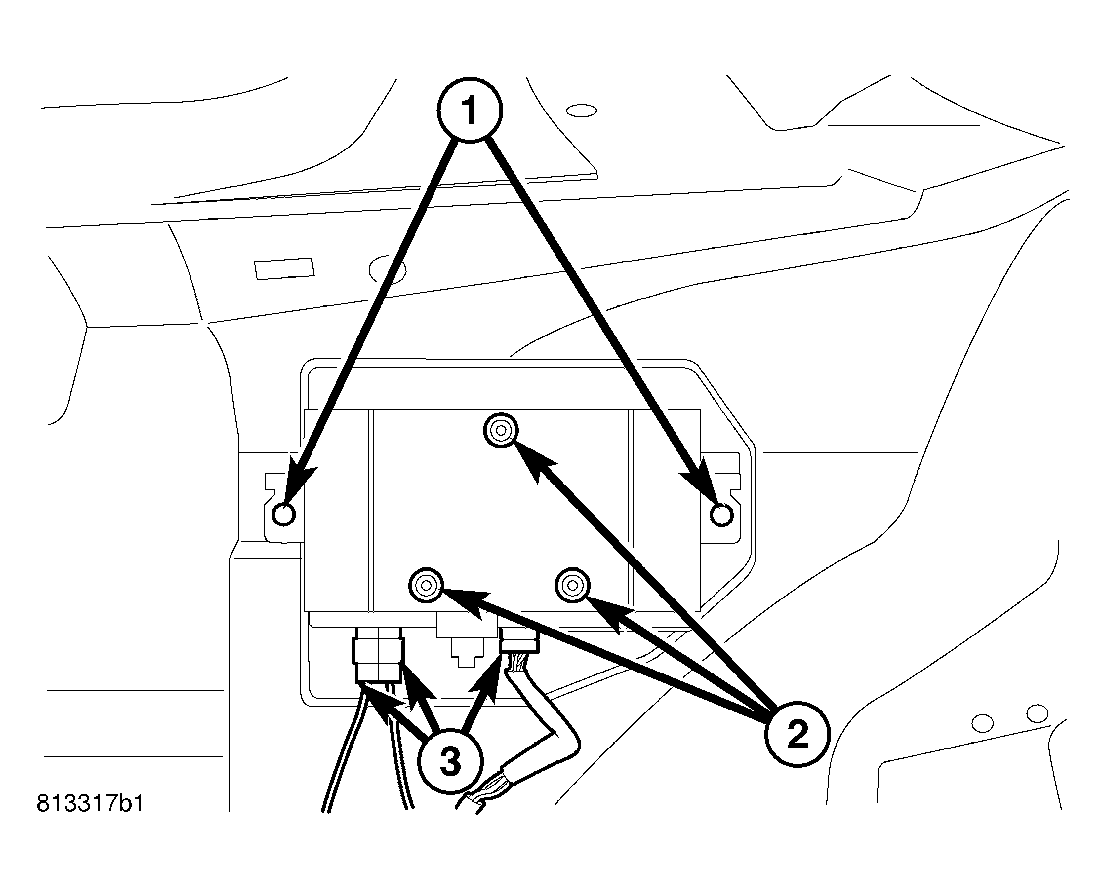

Fig 1: Fasteners & Electrical Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .

Disconnect and isolate the battery negative cable.
Remove left side trunk trim.
Disconnect electrical harness connector (3).
Disconnect antenna harness connectors.
Remove mounting bracket fasteners (1).
Remove module to mounting bracket fasteners (2).
