Section 40 (Audio System (Service Information)): Receiver-Satellite: Installation: Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the owner's satellite service was active before the satellite receiver was replaced the new satellite receiver will have to be activated. The existing satellite receiver will have to be deactivated before the replacement satellite receiver can be activated.

To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following information available when activating a system:

Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced
ESN/SID of the replacement receiver
Vehicle Owner's name and address
VIN

The ESN/SID number can be obtained through the radio display by following the steps in the satellite radio owner's manual.

The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the activation signal.

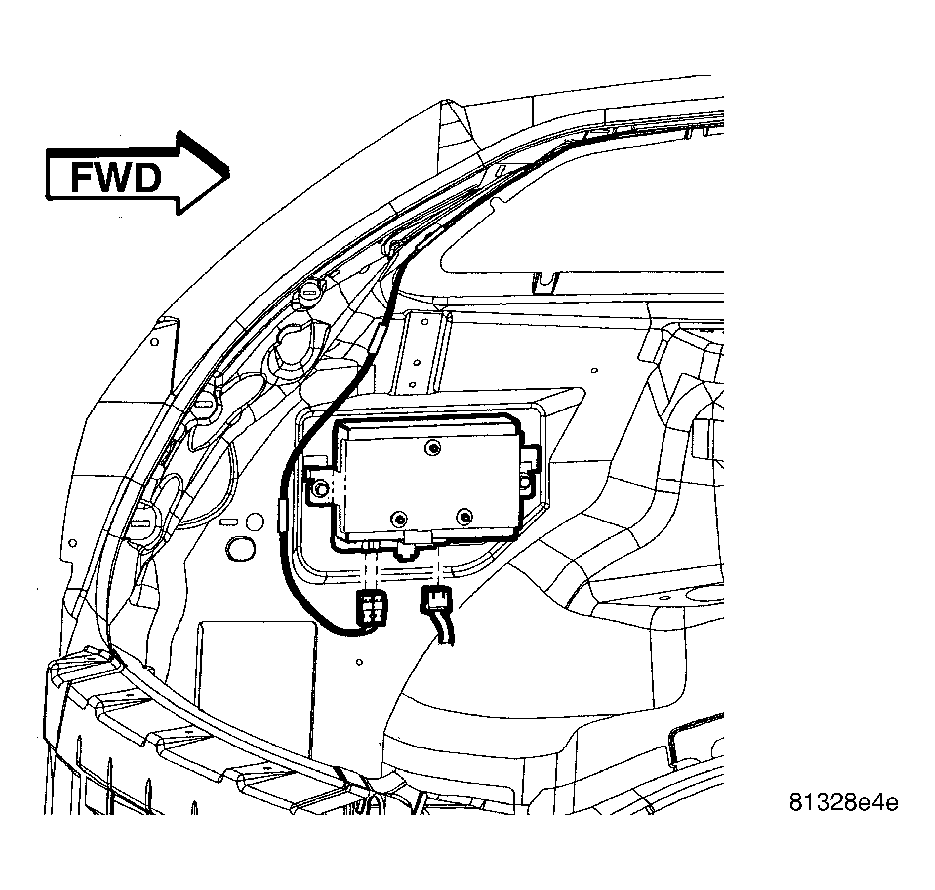

Fig 1: Fasteners & Electrical Harness Connector

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .

Install and tighten module to mounting bracket fasteners (2).
Position module into place.

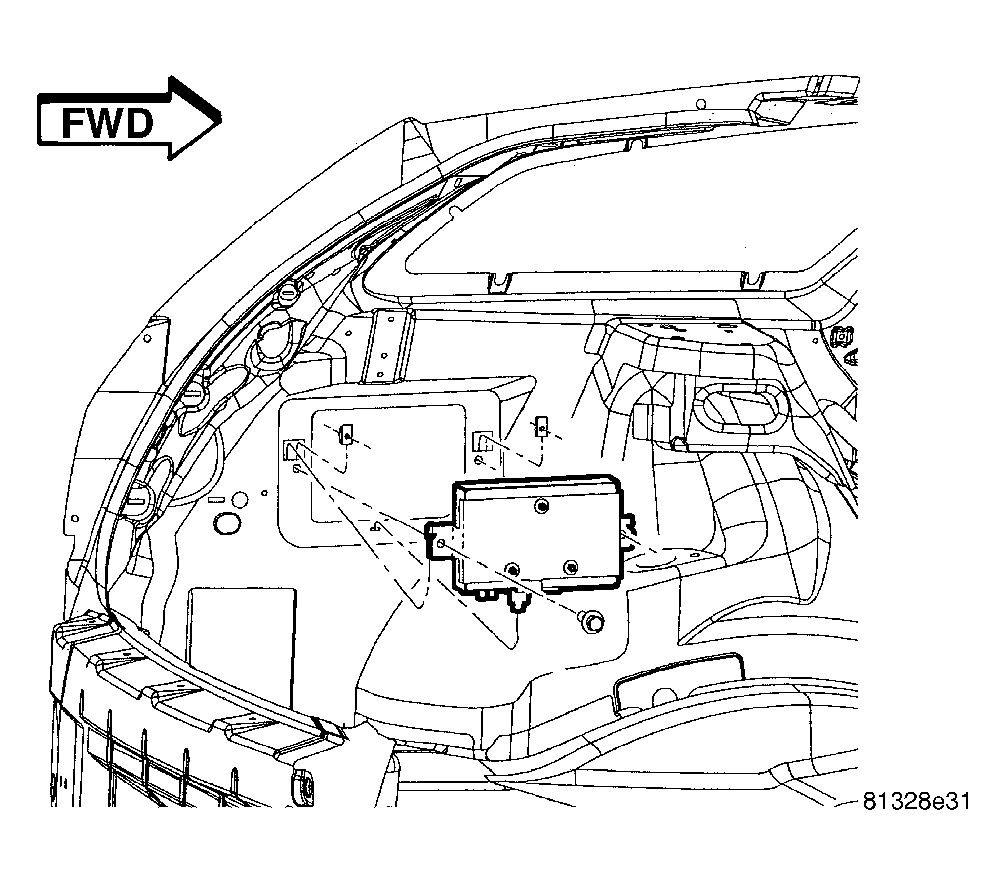

Fig 2: Removing/Installing Mounting Bracket Fasteners
Courtesy of DAIMLERCHRYSLER CORP.
Install and tighten mounting bracket fasteners.

Fig 3: Satellite Receiver
Courtesy of DAIMLERCHRYSLER CORP.
Connect antenna harness connectors.
Connect electrical harness connectors.
Install left rear quarter trim panel.
Connect battery negative cable.
