Section 40 (Audio System (Service Information)): Radio: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Radio
GC0015567Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel center bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - REMOVAL) .
  3. Remove mounting fasteners.

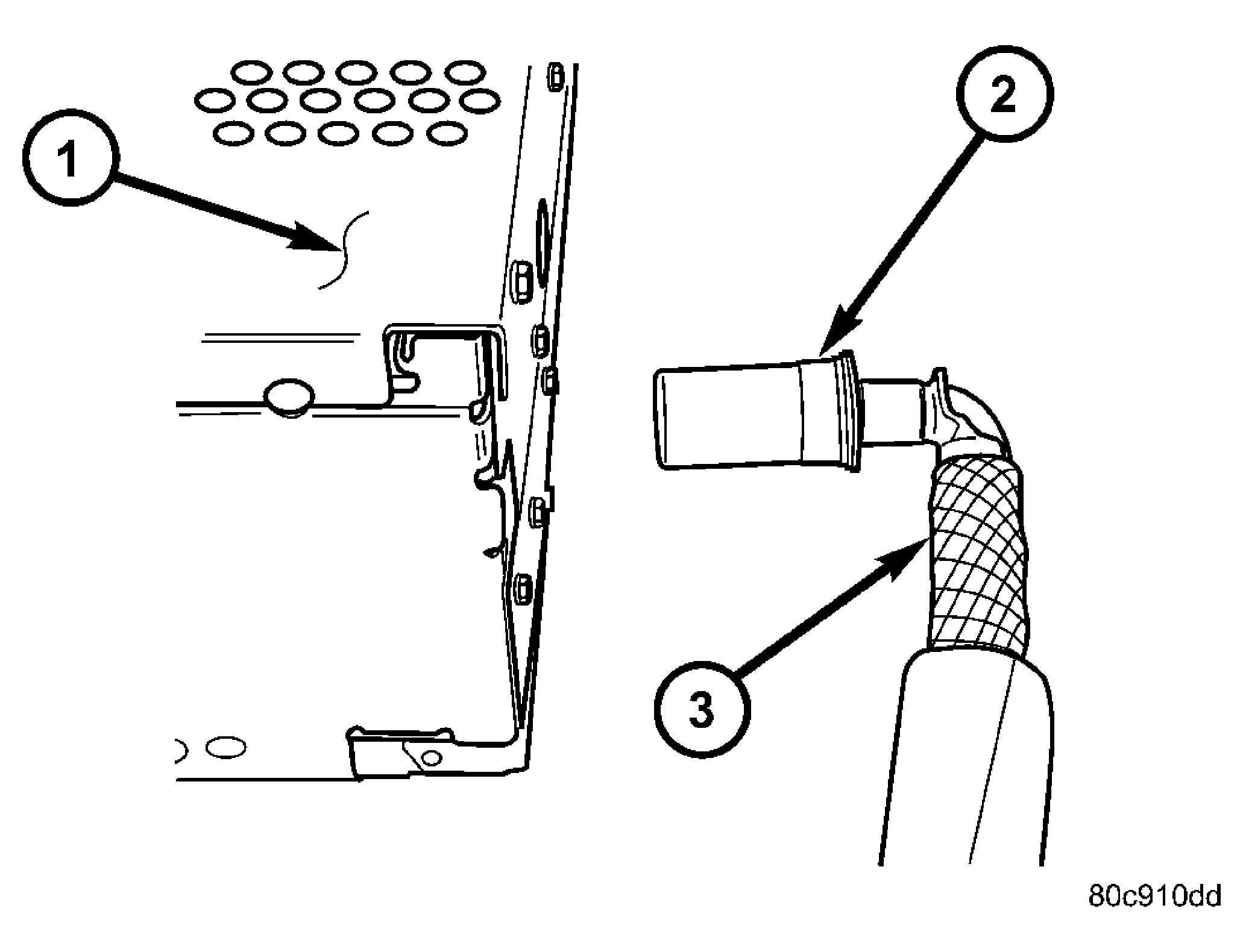

    Fig 2: Antenna Cable At Radio
    GC0015566Courtesy of DAIMLERCHRYSLER CORP.
    CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
  4. Disconnect the antenna cable (3) by pulling the locking antenna connector (2) away from the radio (1).
  5. Disconnect the electrical harness connector and remove radio.
