Section 40 (Audio System (Service Information)): Radio: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

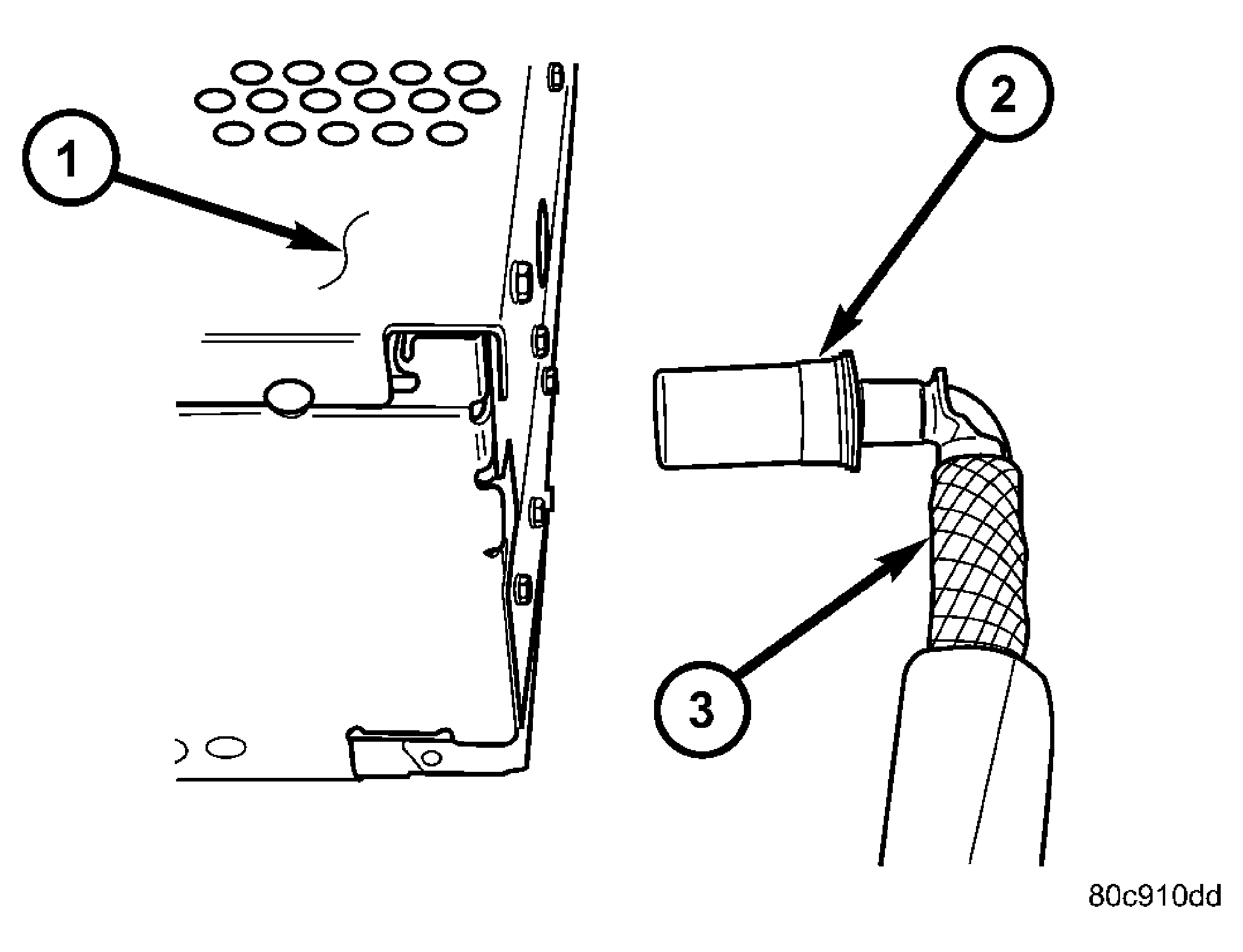

Fig 1: Antenna Cable At Radio

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .

Connect the electrical harness and antenna cable (3) to radio (1).

Fig 2: Wire Harness Connectors And Antenna Cable
Courtesy of DAIMLERCHRYSLER CORP.
Position radio and install mounting fasteners.
Install instrument panel center bezel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL CENTER BEZEL - INSTALLATION) .
Connect battery negative cable.
