Antenna - Satellite Radio: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

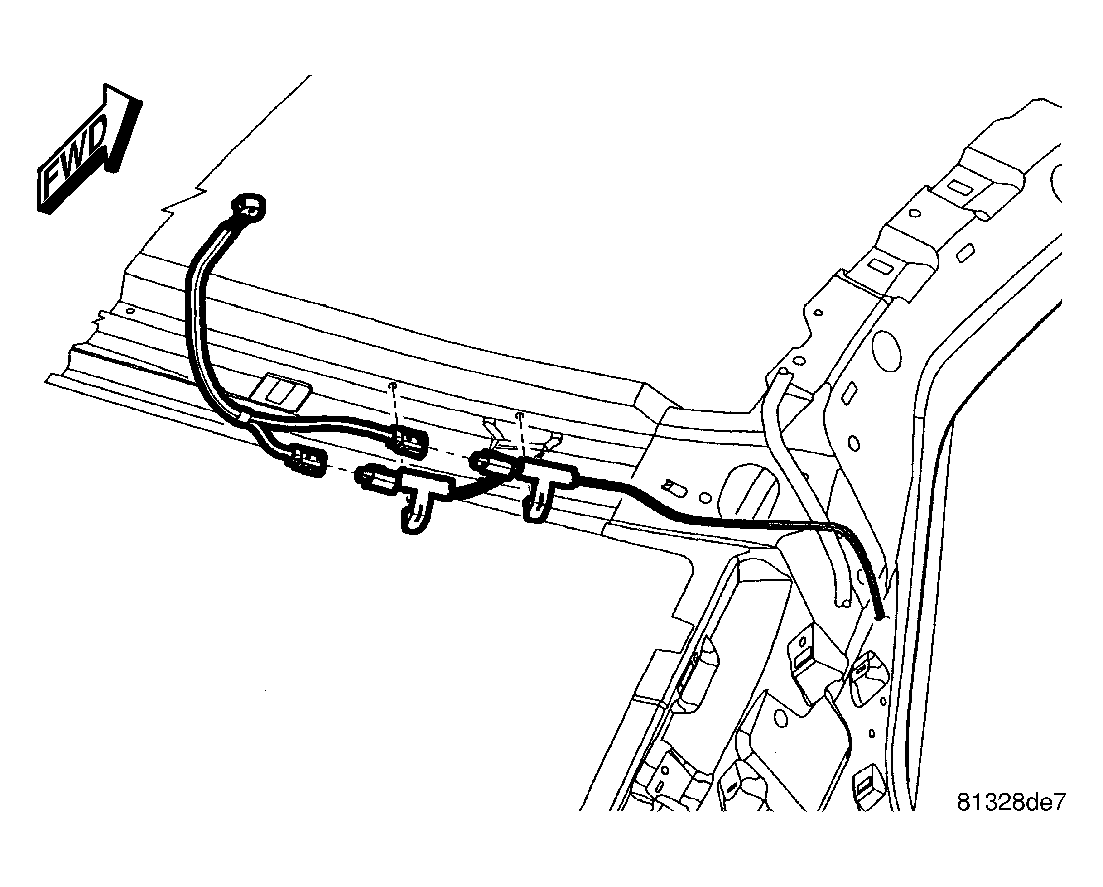

Fig 1: Wire Harness Connectors
GC0015554Courtesy of DAIMLERCHRYSLER CORP.
NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .
  1. Disconnect and isolate the battery negative cable.
  2. Lower the rear portion of the headliner as necessary to access underside of antenna
  3. Disconnect the wire harness connectors from the antenna.

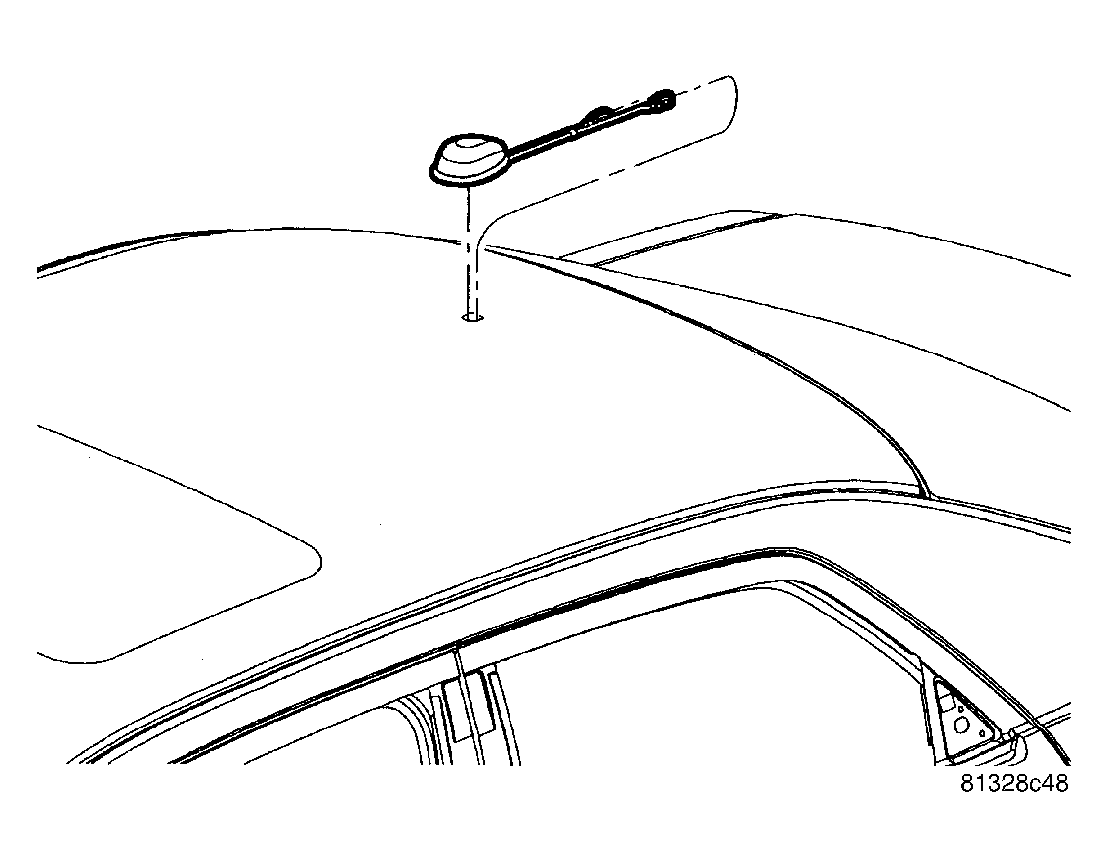

    Fig 2: Satellite Radio Antenna
    GC0015552Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the mounting fastener.
  5. From inside the vehicle, and using a flat bladed tool, depress one of the retaining tabs on the antenna. Push up the one side of the antenna connector through the roof panel. Depress the other side of the connector and remove the antenna.
