Antenna - Satellite Radio: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

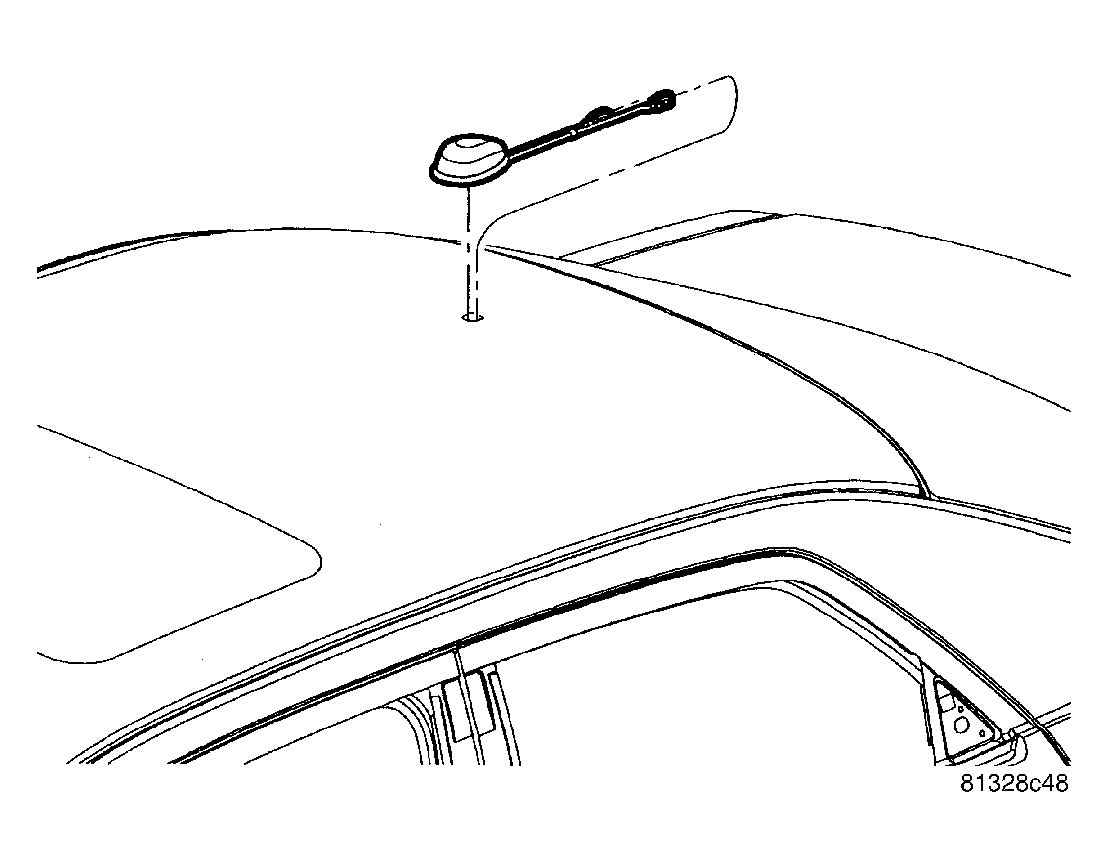

Fig 1: Satellite Radio Antenna

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE) .

Insert wire harness through hole in roof panel. Press antenna into position until both retainers engage into position.
Install and tighten mounting fastener.

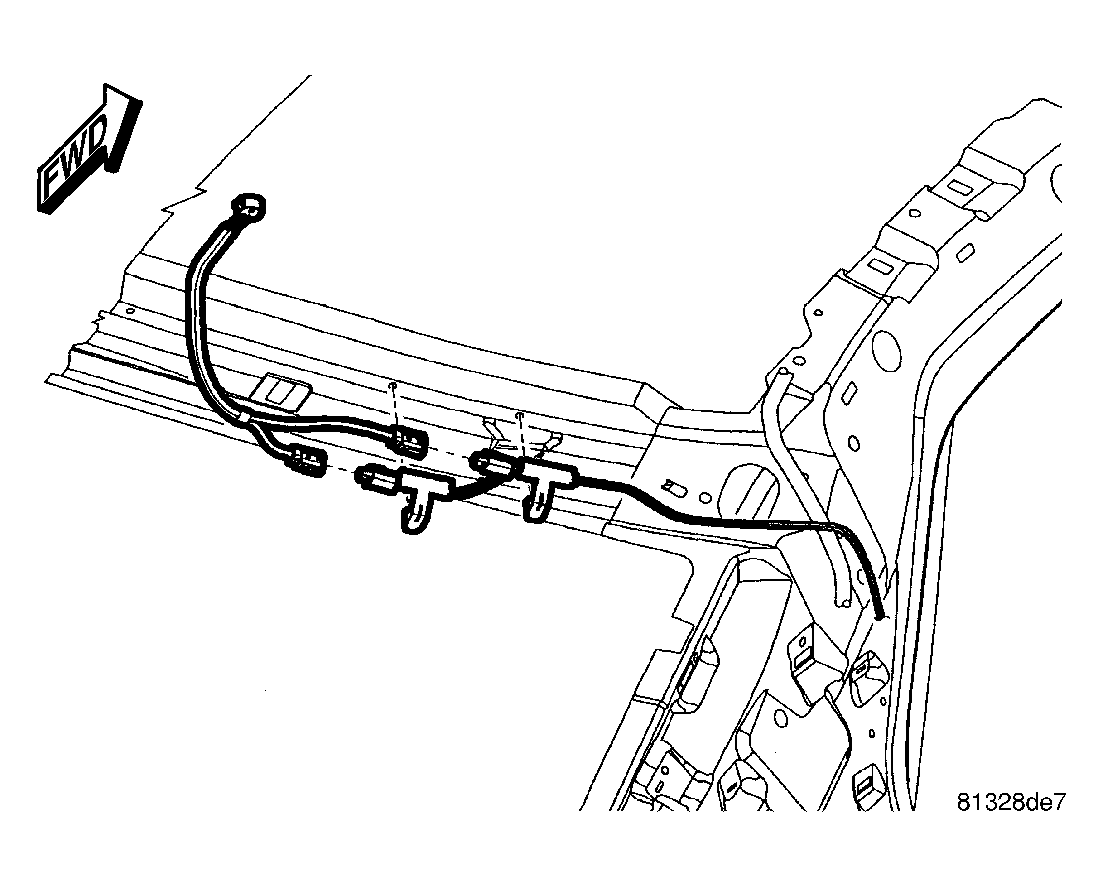

Fig 2: Wire Harness Connectors
Courtesy of DAIMLERCHRYSLER CORP.
Connect wire harness connectors to antenna.
Install headliner.
Connect battery negative cable.
