Section 38 (Steering System (Service Information)): Pump: Reservoir: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

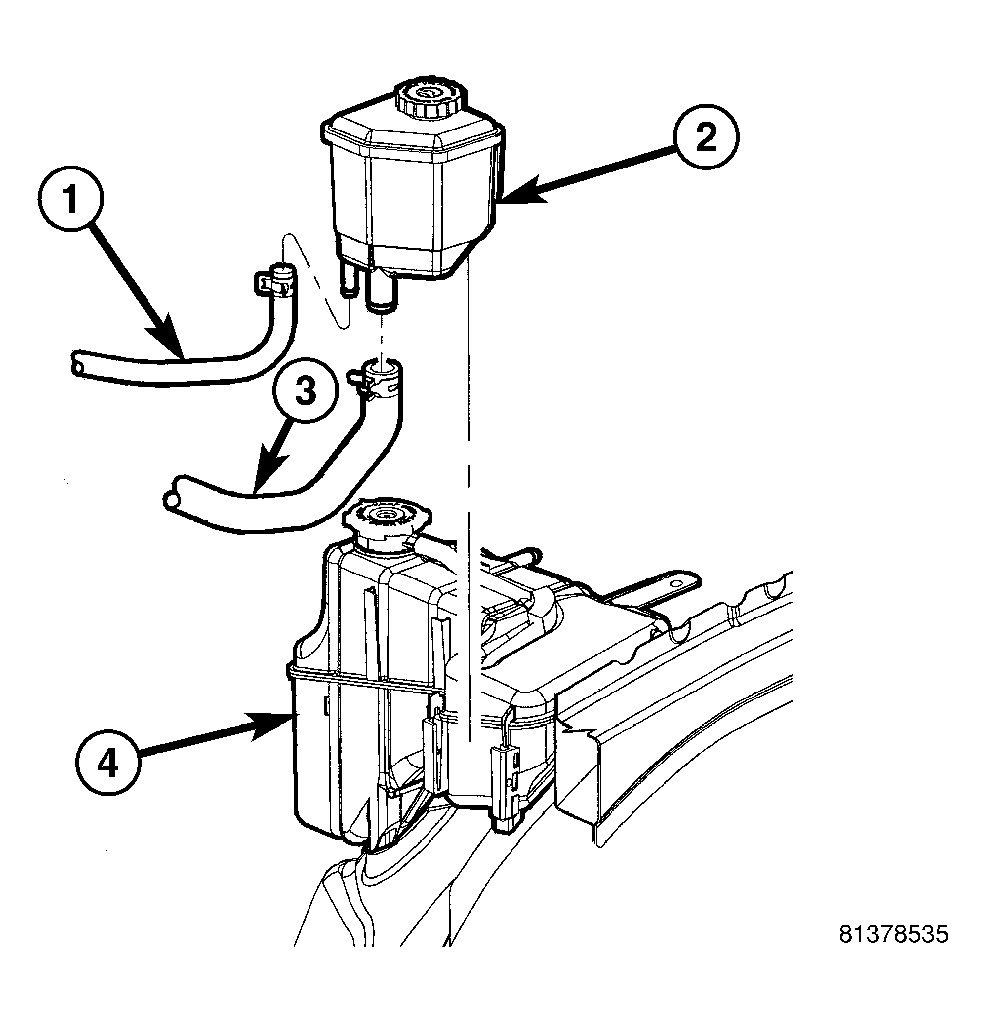

- Install reservoir (2) on coolant bottle (4) by sliding it into guide and allowing it to lock into place.
- Install return hose (1) on reservoir hose fitting. Install clamp securing hose in place.
- Install supply hose (3) on reservoir hose fitting. Install clamp securing hose in place.
- Install air cleaner housing and inlet tube. Refer to appropriate ENGINE - SERVICE INFORMATION article.
- Connect battery negative cable (2) to battery post. It is important that this is performed properly. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
- Fill pump reservoir with fluid and perform pump initial operation procedure. (Refer to STEERING/PUMP - STANDARD PROCEDURE)
