Hose - Pressure: Installation: RHD

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install pressure hose in engine compartment from underneath.
    NOTE: Always use a NEW O-ring on the end of the pressure hose.
  2. Lubricate NEW O-ring on steering gear end of pressure hose with clean power steering fluid.

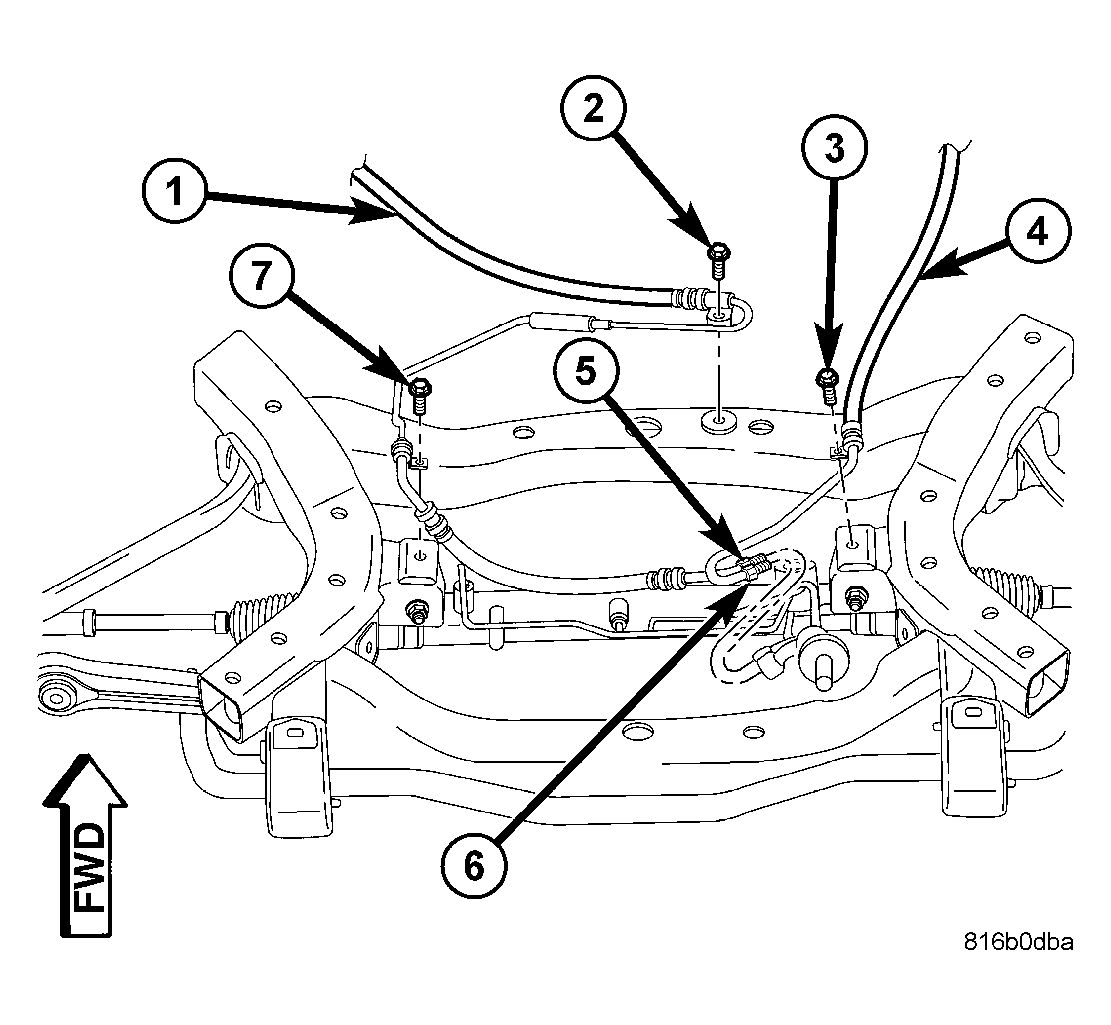

    Fig 1: POWER STEERING HOSE ROUTING - RHD
    GC0039598Courtesy of DAIMLERCHRYSLER CORP.
  3. Install gear end of pressure hose (5) into steering gear port. Do not tighten tube nut at this time.
  4. Route pressure hose along left side of engine cradle. Position pressure hose routing clamp, then install screw (7) through clamp, securing hose to left side of engine cradle.
  5. Route pressure hose along front of engine cradle. Install screw (2) through routing clamp securing hose to front of engine cradle.
  6. Tighten pressure hose tube nut (5) at steering gear to 47 N.m (35 ft. lbs.).
  7. Install belly pan. (Refer to BODY/EXTERIOR/BELLY PAN - INSTALLATION)
  8. Lower vehicle.
    NOTE: Always use a NEW O-ring on the end of the pressure hose.
  9. Lubricate NEW O-ring on power steering pump end of pressure hose with clean power steering fluid.
    Fig 2: Remove/Install Pressure Hose At Pump - 2.7L/3.5L
    GC0013303Courtesy of DAIMLERCHRYSLER CORP.
  10. 2.7L/3.5L Engines - Install pressure hose (2) to pump (1). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.).
    Fig 3: Remove/Install Pressure Hose at Pump - 5.7L/6.1L
    GC0013306Courtesy of DAIMLERCHRYSLER CORP.
  11. 5.7L/6.1L Engines - Install pressure hose (2) to pump (1). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.).
    Fig 4: Pressure Hose At Pump
    GC0039599Courtesy of DAIMLERCHRYSLER CORP.
  12. 3.0L Diesel Engine - Install pressure hose (2) to pump (1). Tighten pressure hose tube nut to 47 N.m (35 ft. lbs.).
  13. Install air cleaner housing and inlet tube. Refer to appropriate ENGINE - SERVICE INFORMATION article.
    Fig 5: Disconnecting/Connecting Battery Cables
    GC0012970Courtesy of DAIMLERCHRYSLER CORP.
  14. Connect battery negative cable (2) to battery post. It is important that this is performed properly. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
  15. Fill pump reservoir with fluid and perform pump initial operation procedure. (Refer to STEERING/PUMP - STANDARD PROCEDURE)
