Fluid Cooler: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

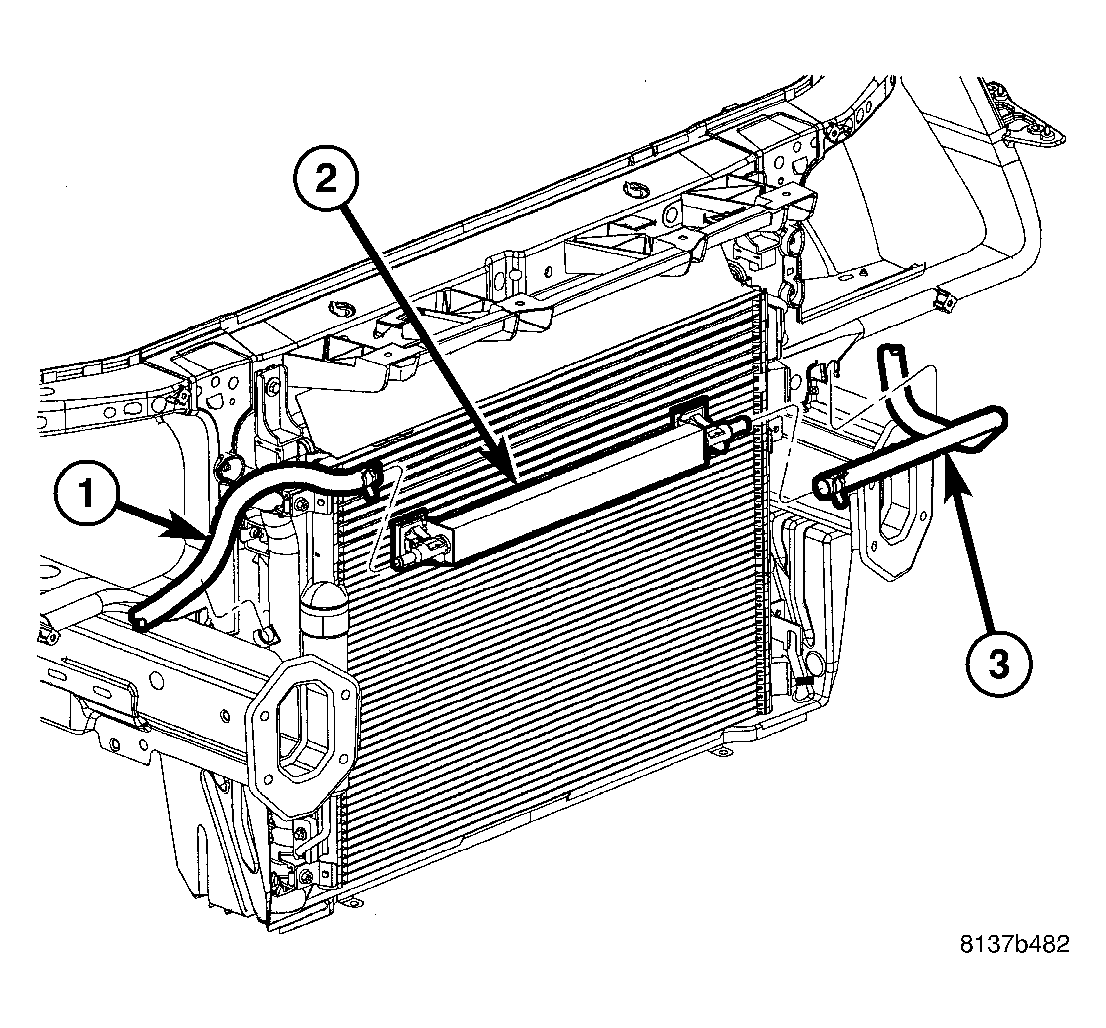

Fig 1: Fluid Cooler & Hoses

Courtesy of DAIMLERCHRYSLER CORP.

This vehicle uses a fluid-to-air type power steering fluid cooler (2) with external cooling fins. The cooler mounts to clips attached to the front of the cooling module.

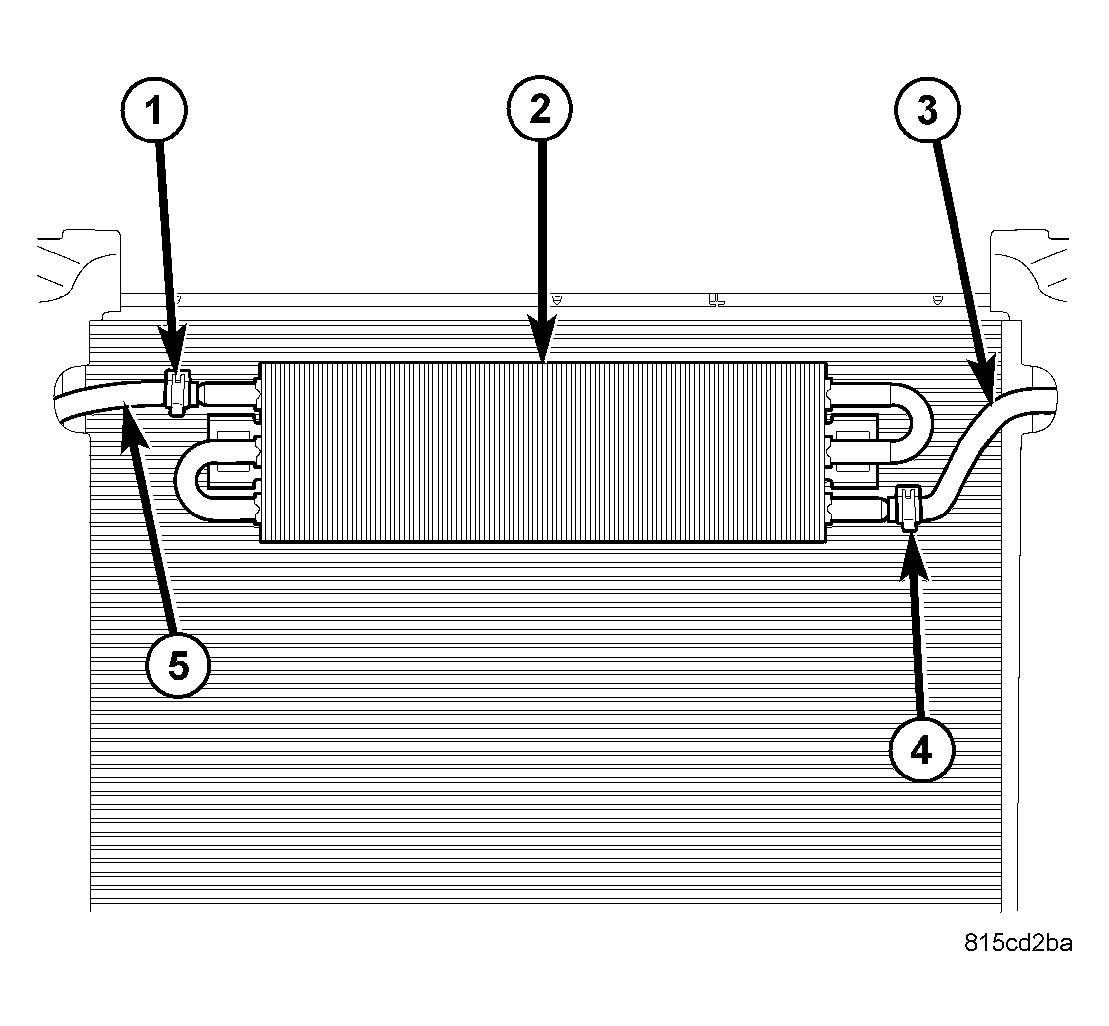

Fig 2: SRT8 FLUID COOLER AND HOSES

Courtesy of DAIMLERCHRYSLER CORP.

Unlike the standard power steering fluid cooler which makes one pass across the cooling module, the SRT8 (and Police Package) cooler (2) makes three passes across the front of the cooling module.
