Section 38 (Steering System (Service Information)): Pump: Description
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

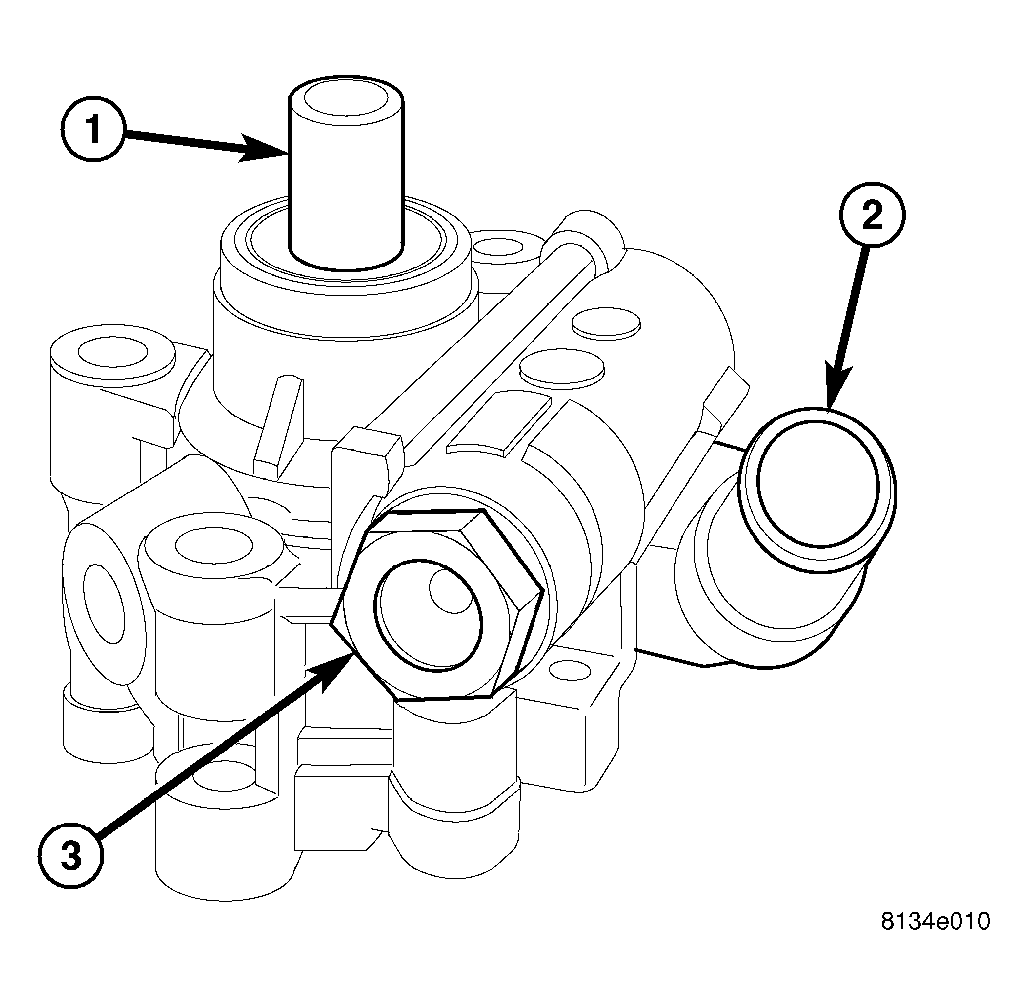

| 1 - SHAFT |
| 2 - SUPPLY INLET |
| 3 - PRESSURE OUTLET |
Hydraulic pressure for operation of the power steering gear is provided by a belt-driven all-aluminum power steering pump. Most vehicles use a common droop flow rate and constant displacement type pump that is mounted in a common location (left front of engine). The SRT8 power steering pump is a constant-flow type, but appears the same externally and is mounted in the same location as others.
