Park Assist Module: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Remove/Install Park Assist Module
GC0015714Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Peel back the right inner trunk carpet to expose the Park Assist Module (2).
  3. Remove the two attaching screws (1) and separate the module (2) from the vehicle.

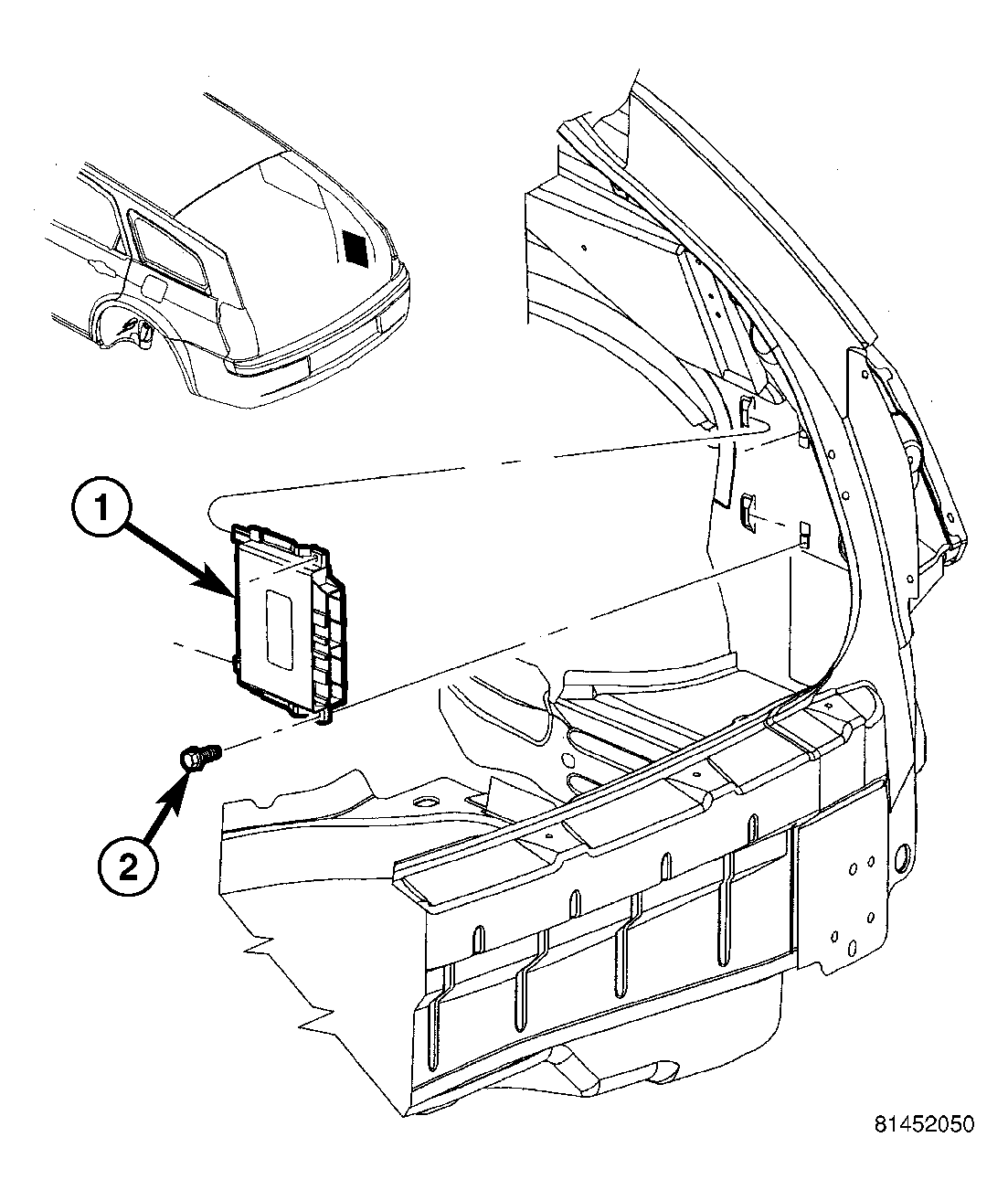

    Fig 2: Remove/Install Park Assist Module
    GC0015717Courtesy of DAIMLERCHRYSLER CORP.
  4. On the wagon, the module will be behind the right side D-pillar trim and is attached the same as the sedan.

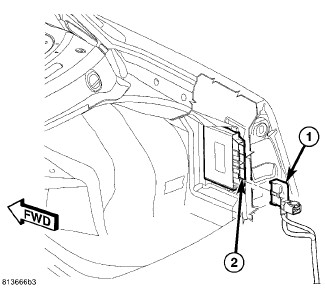

    Fig 3: Disconnecting/Connecting Park Assist Module Electrical Connector
    GC0015716Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect the Park Assist Module (2) electrical connector (1).
