Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Turn the ignition on.
2. With a scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go to step 2
  No
  - Perform the INTERMITTENT CONDITION Diagnostic Procedure. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
STARTER CONTROL OPERATION FROM THE PCM

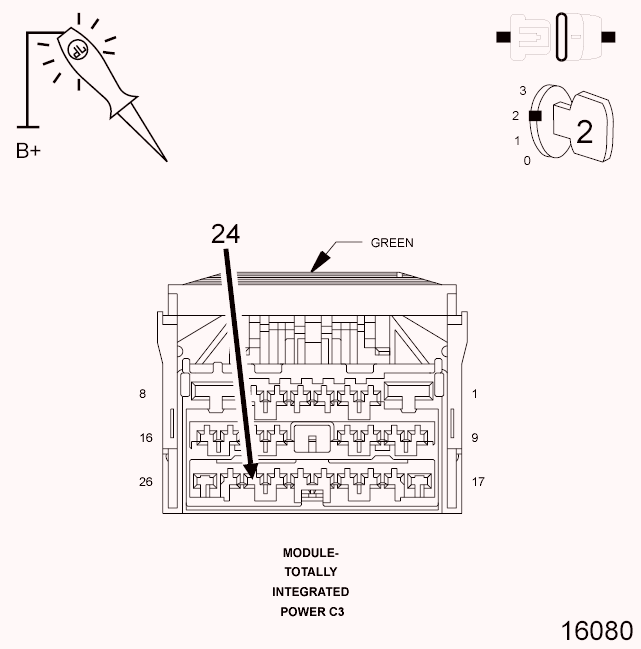

Fig 1: Checking Starter Control Operation From PCM
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C3 TIPM harness connector.
3. Ignition on, engine not running.
4. With a 12-volt test light connected to B+, probe the (T752) Starter Control circuit in the C3 TIPM harness connector.
5. Using the scan tool under the PCM Actuators, actuate the Double Override Stater.
  Does the test light illuminate brightly?

  Yes
  - Go to step 5
  No
  - Go to step 3
(T752) STARTER CONTROL CIRCUIT SHORTED TO GROUND

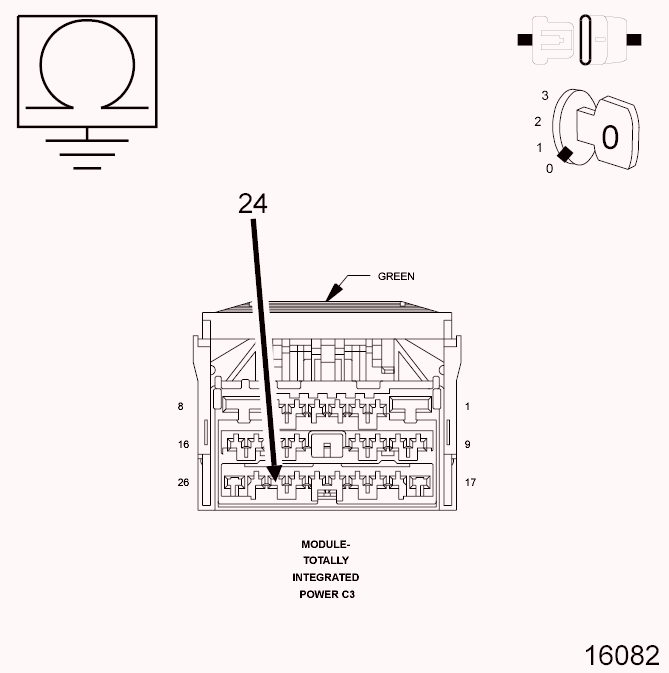

Fig 2: Checking Starter Control Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) harness connector.
3. Measure the resistance between ground and the (T752) Starter Control circuit in the C3 TIPM harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the (T752) Starter Control circuit for a short to ground.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4

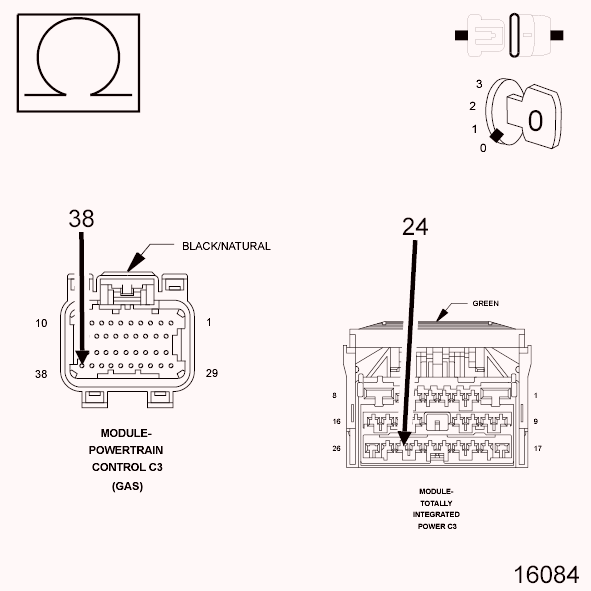

(T752) STARTER CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

Fig 3: Checking Starter Control Circuit For Open Or High Resistance
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (T752) Starter Control circuit between the PCM connector and the TIPM harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Repair the (T752) Starter Control circuit for an open circuit or high resistance.
  - Perform the PCM Verification Test. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(T750) STARTER CONTROL OUTPUT CIRCUIT SHORTED TO GROUND

Fig 4: Checking Starter Control Output Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off
2. Measure the resistance between ground and the (T752) Starter Control circuit at the C3 TIPM harness connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (T752) Starter Control circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 6
STARTER

Fig 5: Checking Starter Control Output Circuit At Starter Solenoid Harness Connector
Courtesy of CHRYSLER LLC
1. Reconnect the C3 TIPM harness connector.
2. Reconnect the C3 PCM harness connector.
  NOTE: The Stater Solenoid harness connector must be disconnected at this time.
3. Have an assistant turn the ignition key to the CRANK position.
4. Using a 12-volt test light connected ground, probe the (T750) Stater Control Output circuit in the Starter Solenoid harness connector while the ignition key is in the CRANK position.
  Does the test light illuminate brightly?

  Yes
  - Replace the starter in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 7
TOTALLY INTEGRATED POWER MODULE (TIPM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the TIPM and starter.
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact.
4. Refer to any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace the Totally Integrated Power Module per Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
