Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR DTC C1018-RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT HIGH
NOTE: This DTC must be active for the results of this test to be valid.
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Cycle the ignition switch from off to on.
4. With the scan tool, read DTCs.
  Does the scan tool display: C1018-RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT HIGH?

  Yes
  - Go to step 2
  No
  - Perform the ABS-INTERMITTENT CONDITION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
CHECK CONNECTOR/TERMINAL FOR DAMAGE
NOTE: Check all terminals for broken, bent, pushed out, or corroded terminals.
1. Turn the ignition off.
2. Inspect the Anti-Lock Brake Module harness connector, Right Front WSS, and Right Front WSS harness connector.
  Is the Right Front WSS or any of the connectors/terminals damaged?

  Yes
  - Repair as necessary.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 3
CHECK (B7) RIGHT FRONT WSS 12 VOLT SUPPLY CIRCUIT VOLTAGE

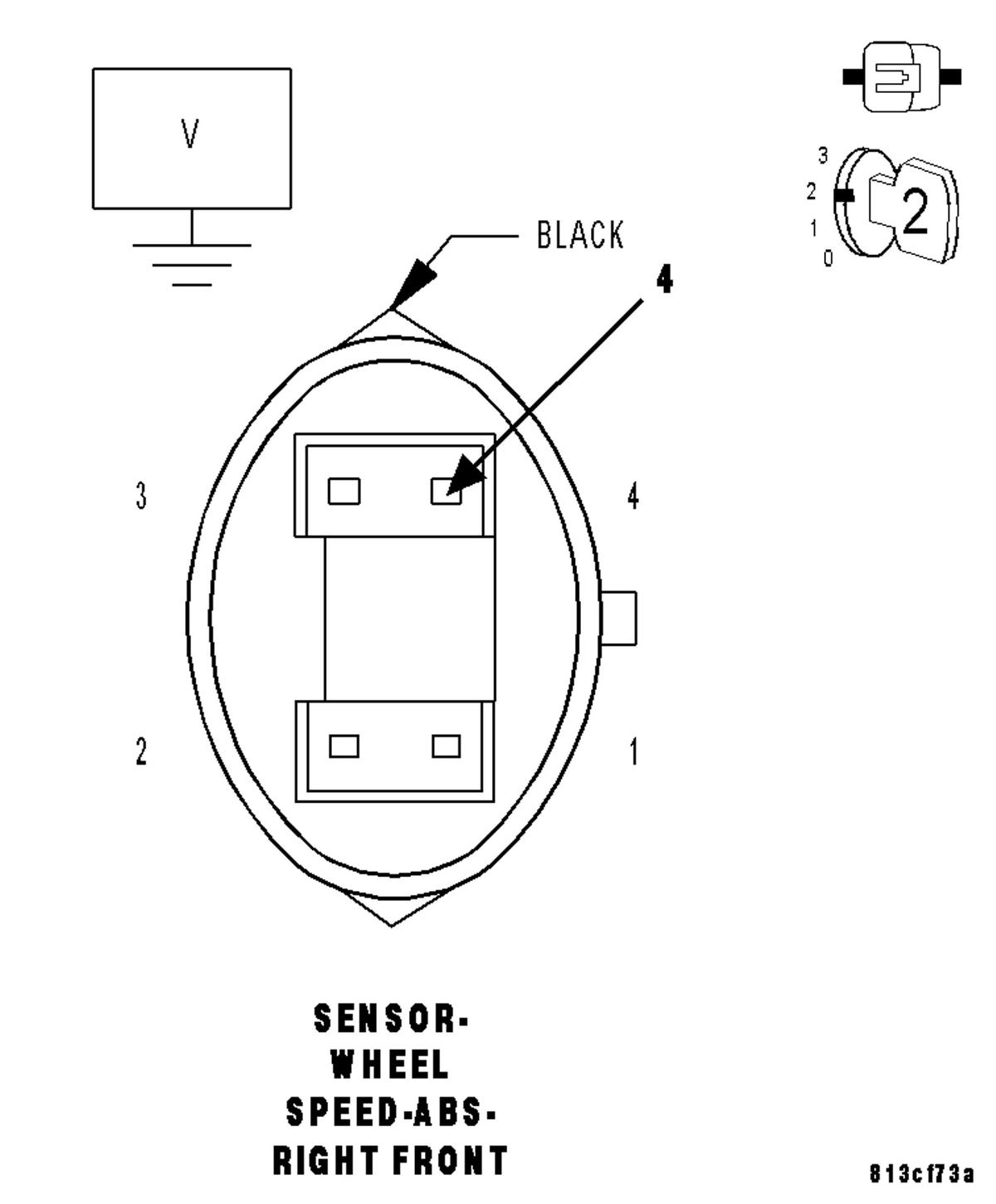

Fig 1: Measuring Voltage Of The Right Front WSS 12 Volt Supply Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the Right Front WSS harness connector.
2. Turn the ignition on.
3. Measure the voltage of the (B7) Right Front WSS 12 Volt Supply circuit.
  Is the voltage above 10.0 volts?

  Yes
  - Go to step 5
  No
  - Go to step 4
CHECK (B7) RIGHT FRONT WSS 12 VOLT SUPPLY CIRCUIT FOR AN OPEN

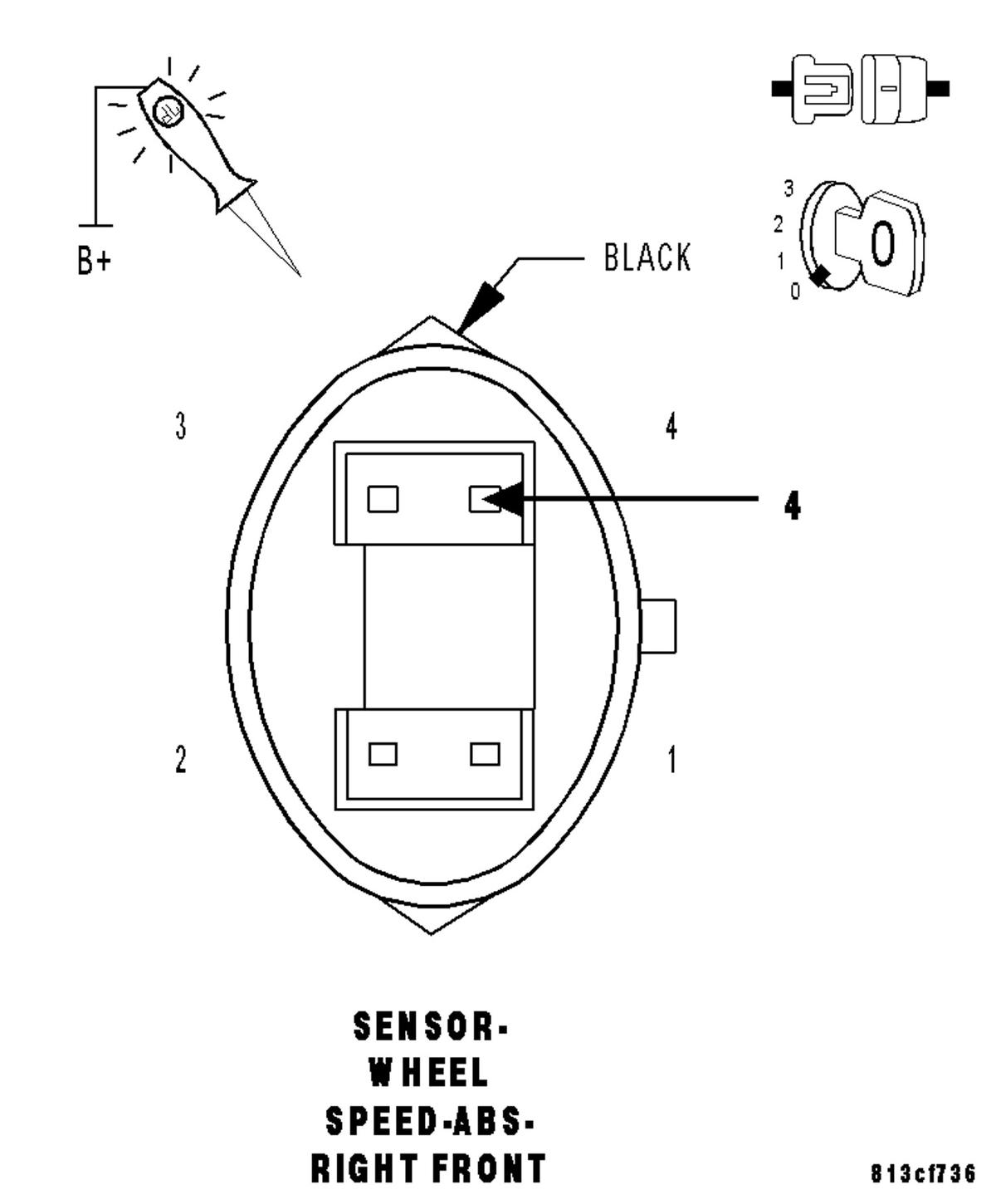

Fig 2: Checking Right Front WSS 12 Volt Supply Circuit For Open
Courtesy of CHRYSLER LLC
1. Connect a jumper wire between ground and the (B7) Right Front WSS Supply circuit in the Totally Integrated Power Module harness connector.
2. Using a 12-volt test light connected to 12-volts, probe the (B7) Right Front WSS Supply circuit.
  Does the test light illuminate brightly?

  Yes
  - Replace the Totally Integrated Power Module in accordance with the Service Information.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Repair the (B7) Right Front WSS Supply circuit for an open.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT OPEN

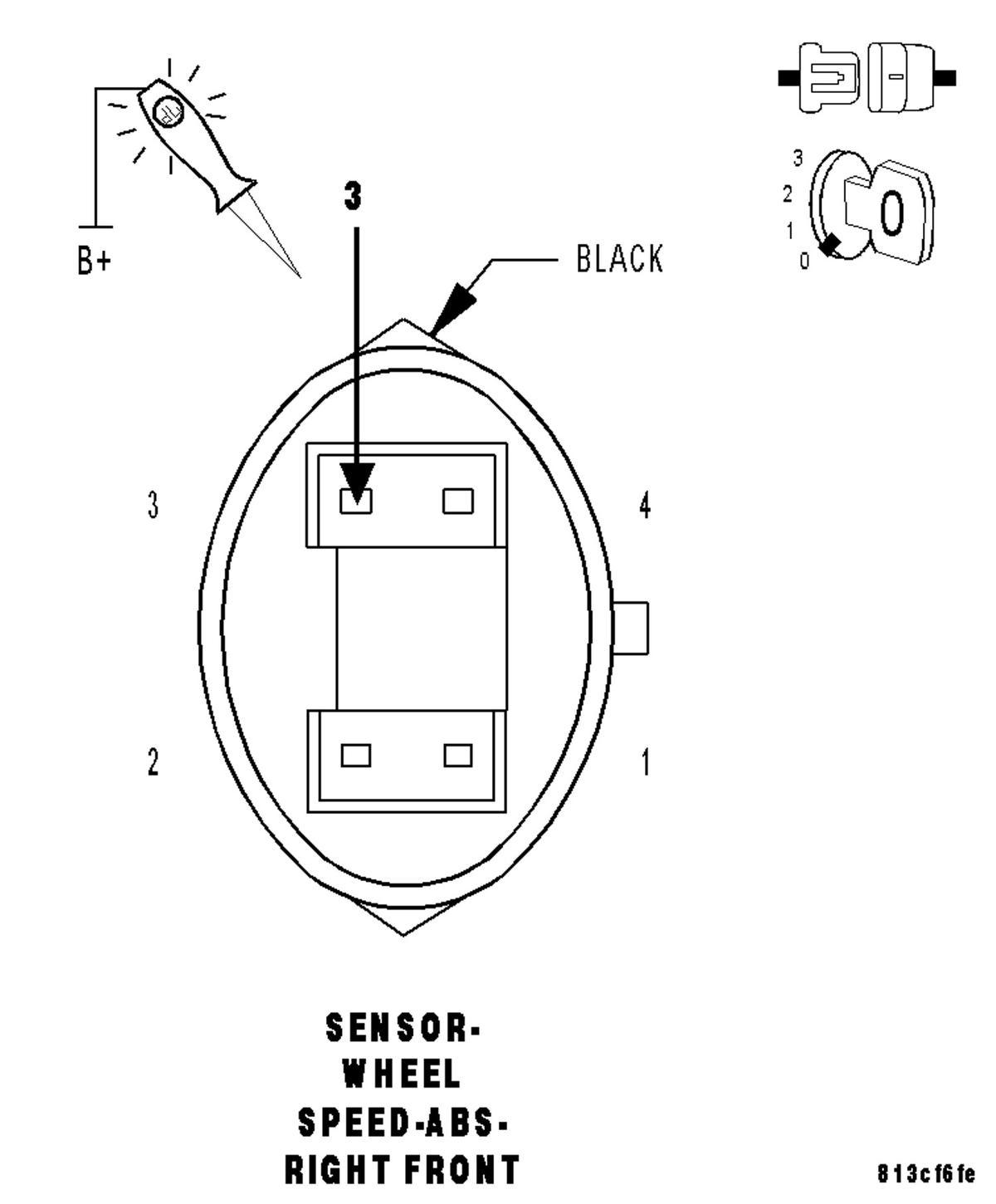

Fig 3: Checking Right Front WSS Signal Circuit For Open
Courtesy of CHRYSLER LLC
1. Connect a jumper wire between ground and the (B6) Right Front WSS Signal circuit in the Totally Integrated Power Module harness connector.
2. Using a 12-volt test light connected to 12-volts, probe the (B6) Right Front WSS Signal circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 6
  No
  - Repair the (B6) Right Front WSS Signal circuit for an open.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT FOR AN SHORT TO VOLTAGE

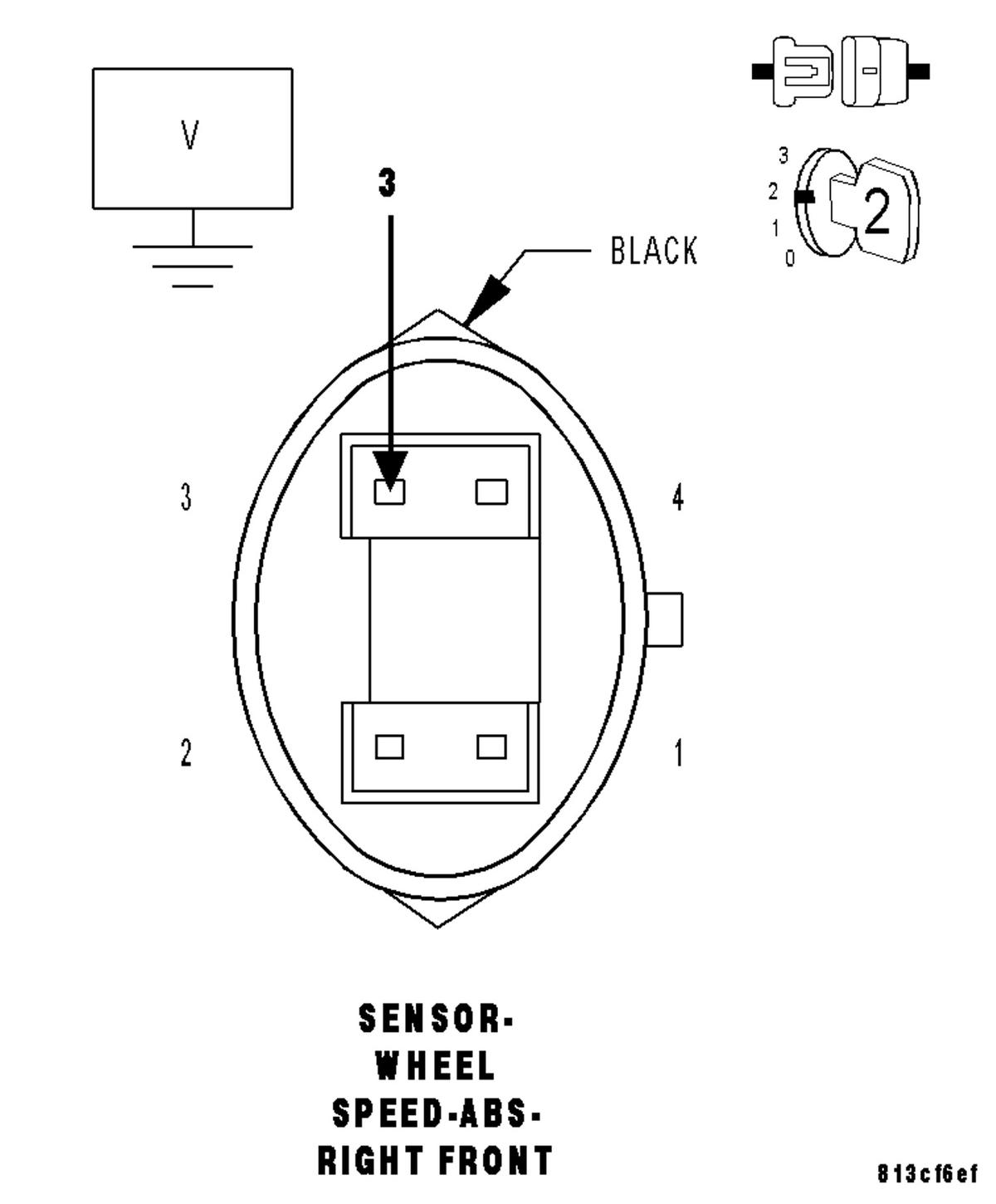

Fig 4: Checking Right Front WSS Signal Circuit For Short To Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Remove all jumper wires.
3. Measure the voltage between the (B6) Right Front WSS Signal circuit and ground.
  Is the voltage above one volt?

  Yes
  - Repair the (B6) Right Front WSS Signal circuit for a short to voltage.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Go to step 7
CHECK (B6) RIGHT FRONT WSS SIGNAL CIRCUIT AND (B7) RIGHT FRONT WSS 12 VOLT SUPPLY CIRCUIT SHORTED TOGETHER

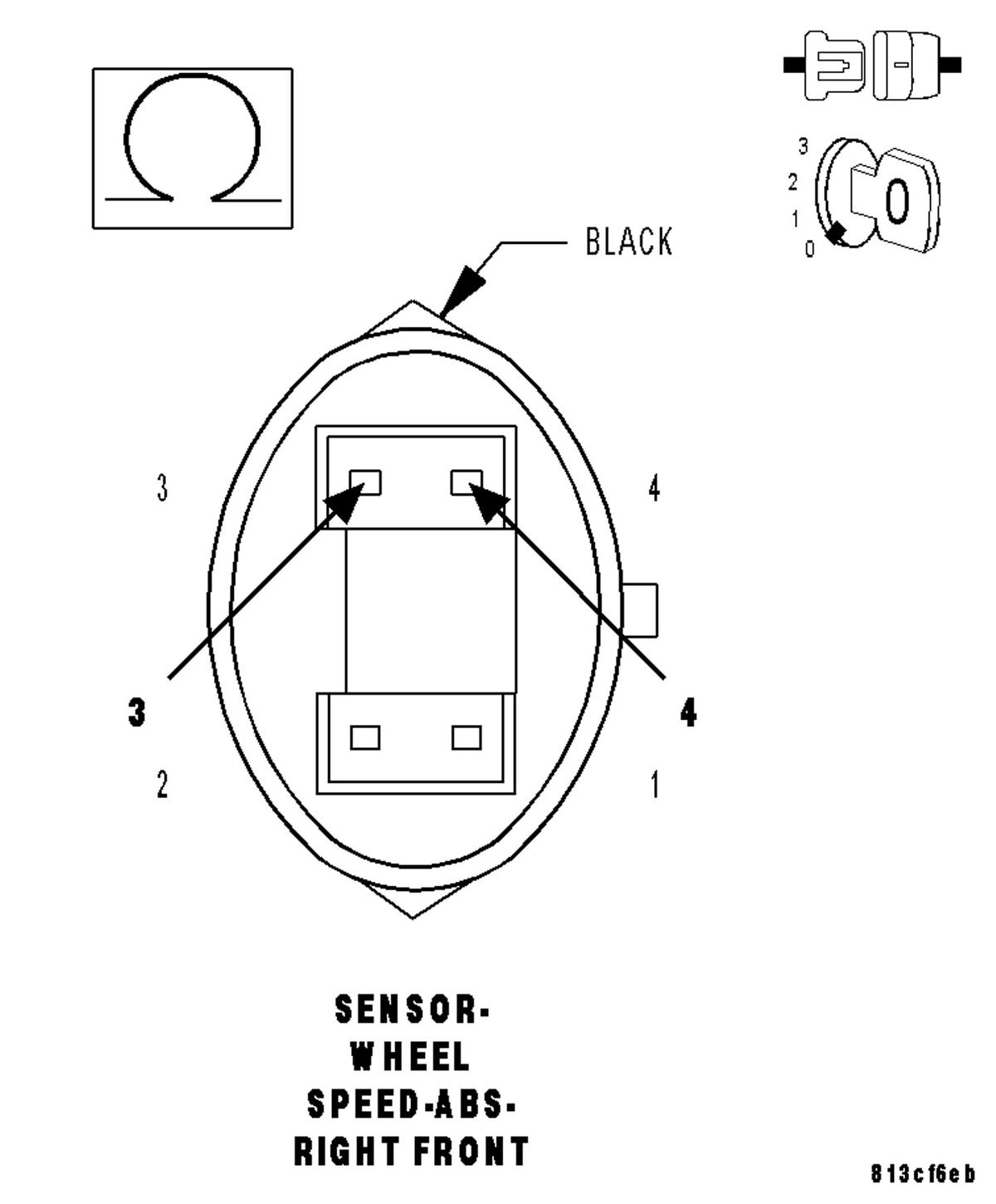

Fig 5: Measuring Resistance Between Right Front WSS Signal Circuit And Right Front WSS Supply Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Measure the resistance between the (B6) Right Front WSS Signal circuit and the (B7) Right Front WSS Supply circuit.
  Is the resistance above 120 Ohms?

  Yes
  - Go to step 8
  No
  - Repair the (B6) Right Front WSS Signal circuit and the (B7) Right Front WSS Supply circuit for a short together.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
RIGHT FRONT WHEEL SPEED SENSOR
1. Replace the Right Front Wheel Speed Sensor in accordance with the Service Information.
2. Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  CAUTION: Ensure brake capability is available before road testing.
3. Road test the vehicle over 40 km/h (25 MPH).
  NOTE: Vehicle must be driven above 40 km/h (25 MPH) for set conditions to be meet.
4. With the scan tool, read ABS DTCs.
  Did DTC C1018-RIGHT FRONT WHEEL SPEED SENSOR CIRCUIT HIGH reset?

  Yes
  - Replace the Totally Integrated Power Module in accordance with the Service Information.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure .
  No
  - Test Complete.
