Section 36 (Frame & Bumpers): Fascia-Front: Removal: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

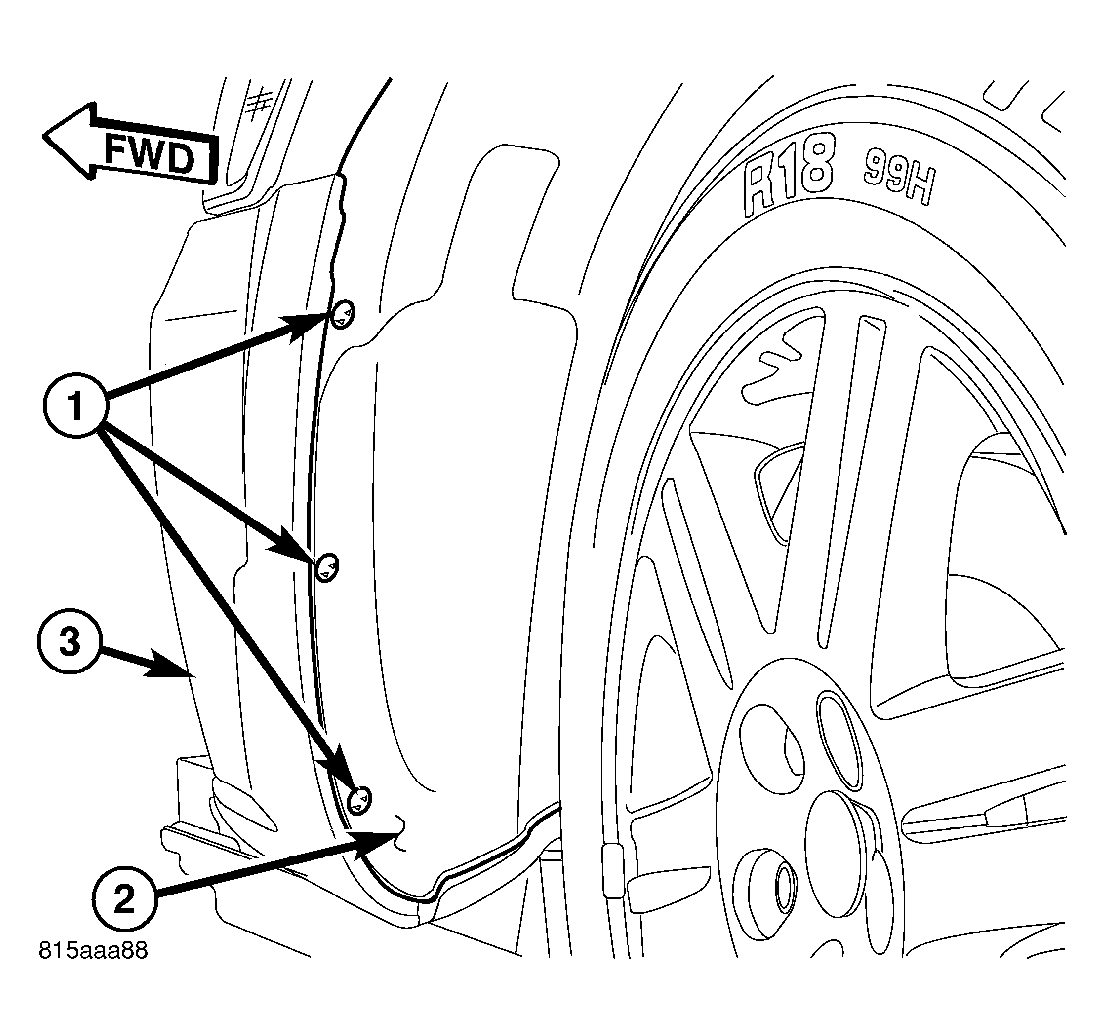

Fig 1: Wheel House Splash Shield

Courtesy of DAIMLERCHRYSLER CORP.

Raise and support the vehicle.
Remove the three push-pin retainers (1) that secure each front wheel house splash shield (2) to the front fascia assembly (3).

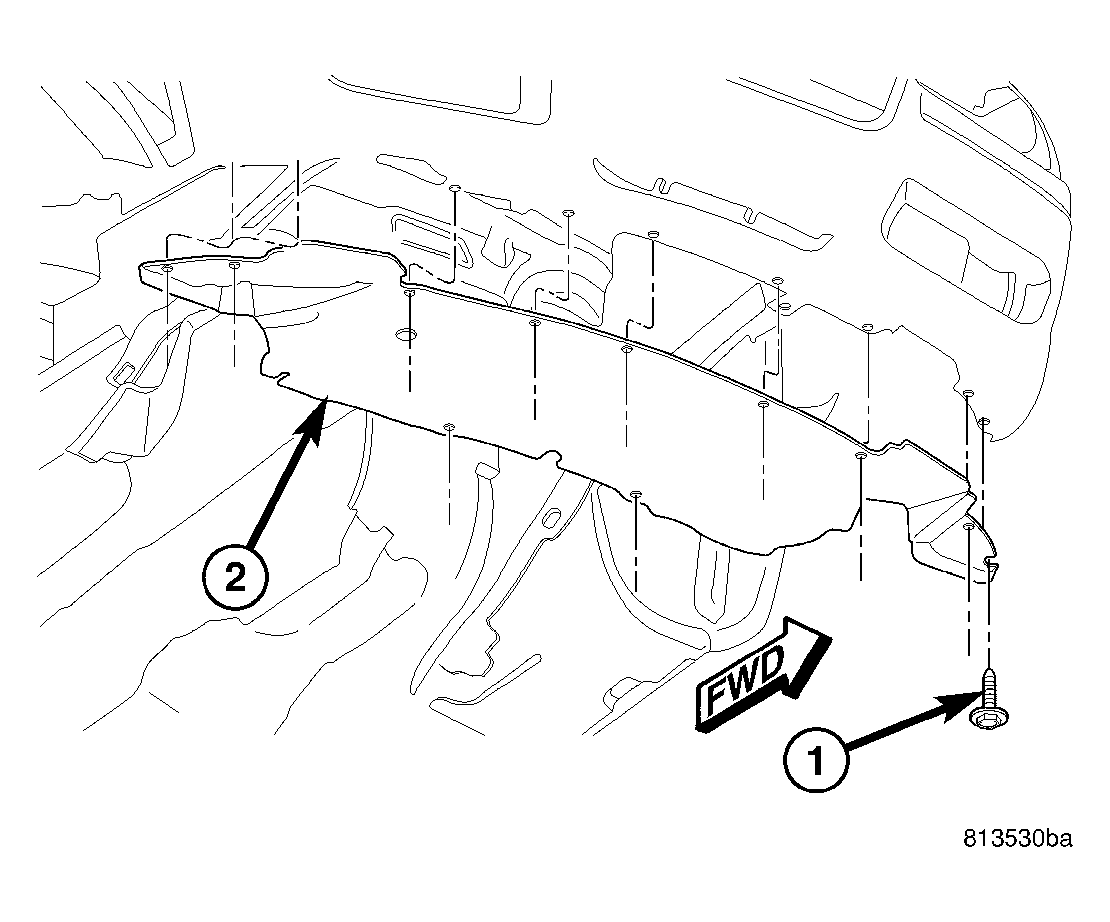

Fig 2: Locating Front Belly Pan And Screws
Courtesy of DAIMLERCHRYSLER CORP.
Remove the nine screws (1) that secure the belly pan (2) to the underbody.
NOTE: 300 Shown. Magnum and SRT8 similar

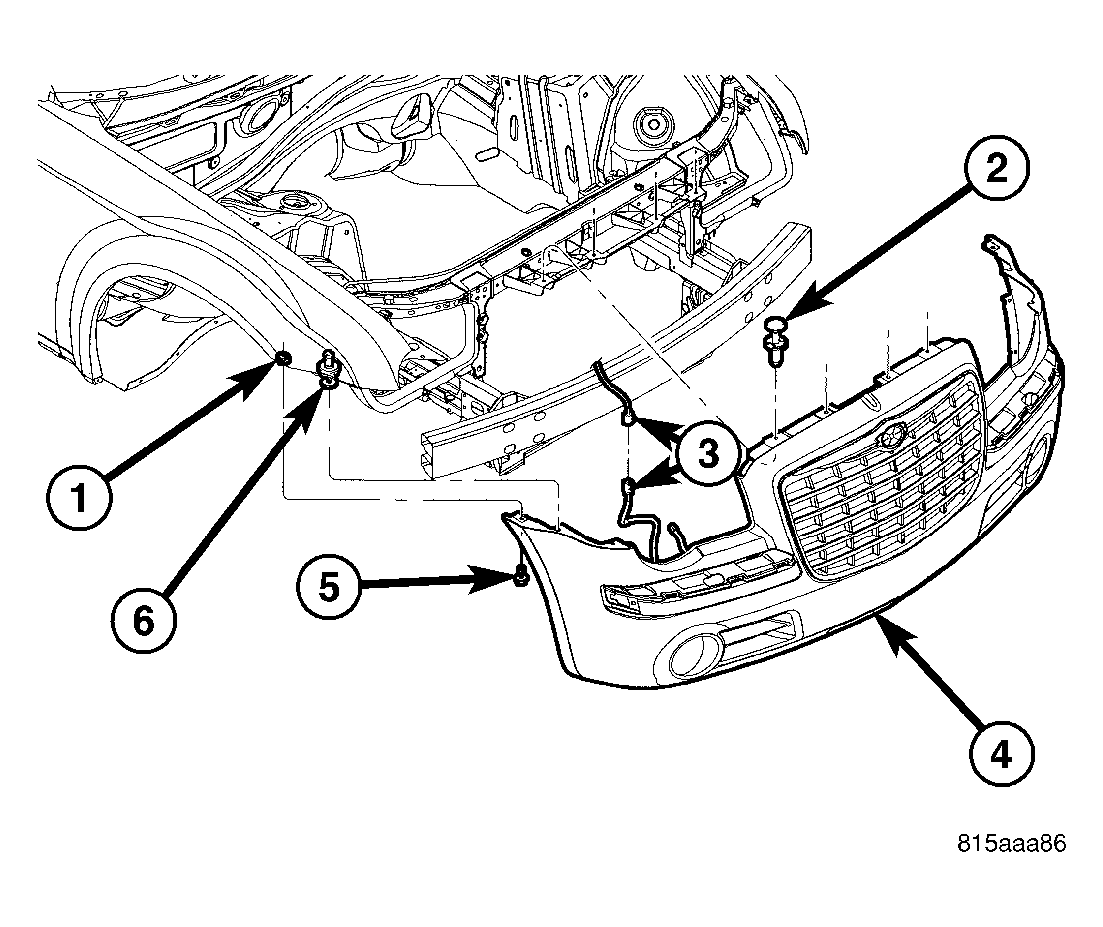

Fig 3: Remove/Install Front Fascia Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Remove the screw (5) that secures the front fascia assembly (4) to the nut insert (1) in each front fender.
Partially lower the vehicle and remove the push-pin retainers (2) (four-sedan, six-wagon, eight-Charger) that secure the front fascia assembly to the upper radiator support.
If equipped, disconnect the headlamp washer system hose from washer reservoir. (Refer to ELECTRICAL/WIPERS/WASHERS/HEADLAMP WASHER - REMOVAL)
On all three SRT8 models, disconnect the Tire Pressure Monitoring System connector. (Refer to TIRES/WHEELS/TIRE PRESSURE MONITORING/TRANSPONDER - REMOVAL)
Carefully pull the front fascia assembly forward to disengage the push-pin retainer (6) from the slot in each side the fascia and position the fascia to gain access to the fog lamp wire harness connectors (3), if equipped.
