Section 36 (Frame & Bumpers): Fascia-Front: Installation: Charger

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

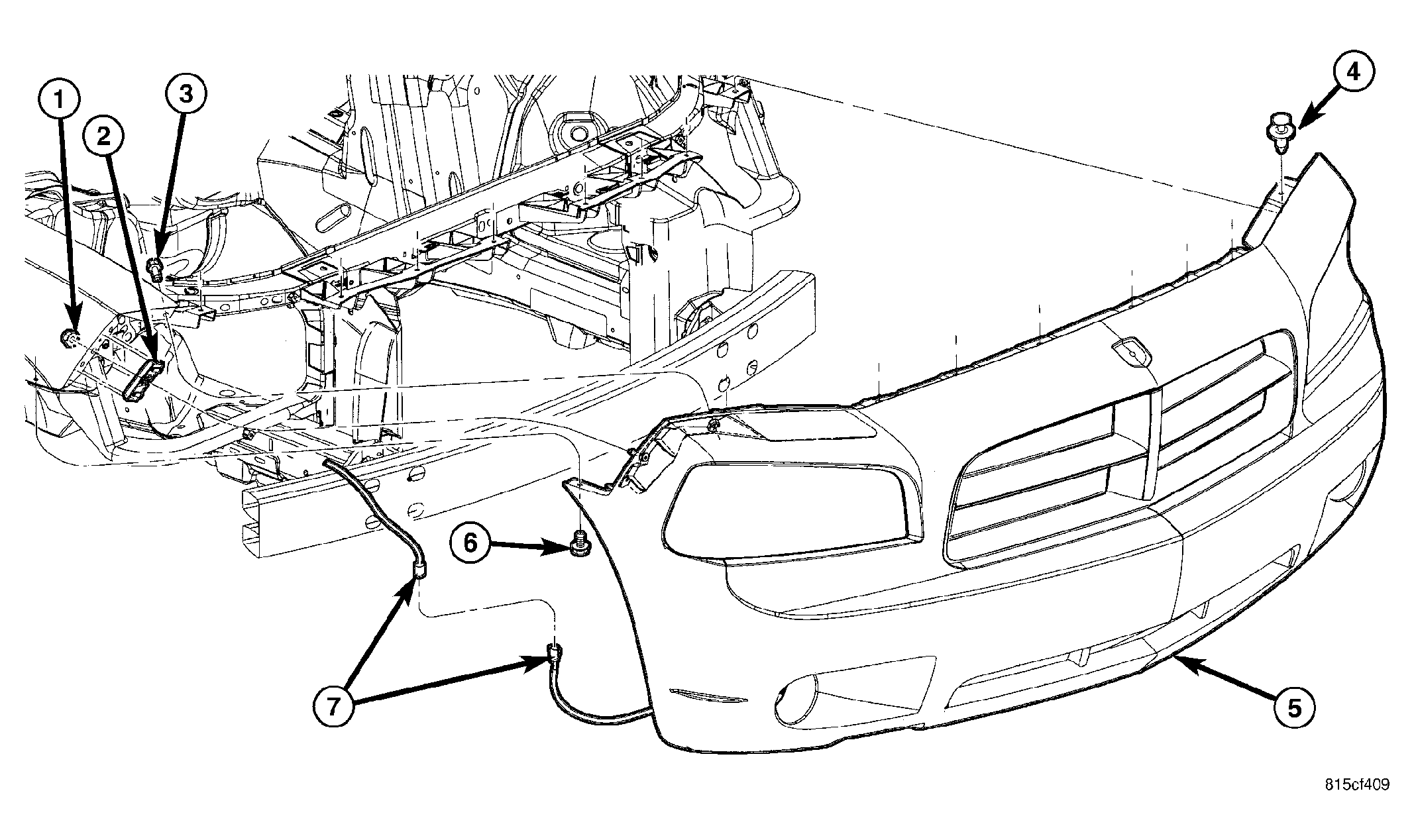

Fig 1: Front Fascia Assembly
GC0039555Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the screw (6) that secures the front fascia assembly (5) to the nut insert (1) in each front fender.
  2. Partially lower the vehicle and install the push-pin retainers (4) (four-sedan, six-wagon, eight-Charger) that secure the front fascia assembly to the upper radiator support.
  3. Carefully pull the front fascia assembly rearward to engage the push-pin retainer (6) from the slot in each side the fascia and position the fascia to gain access to the fog lamp wire harness connectors (7), if equipped.
Fig 2: Locating Front Belly Pan And Screws
GC0012960Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the belly pan (1) to the front of the vehicle underbody and install the nine screws (1). Tighten the screws securely.
    Fig 3: Wheel House Splash Shield
    GC0039550Courtesy of DAIMLERCHRYSLER CORP.
  2. Position each front wheel house splash shield (2) to the front fascia assembly (3) and install the push-pin retainers (1).
  3. Lower the vehicle.
