CROSSMEMBER-Engine Cradle: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Although AWD and RWD upper control arms are similar in appearance, they are not interchangeable.

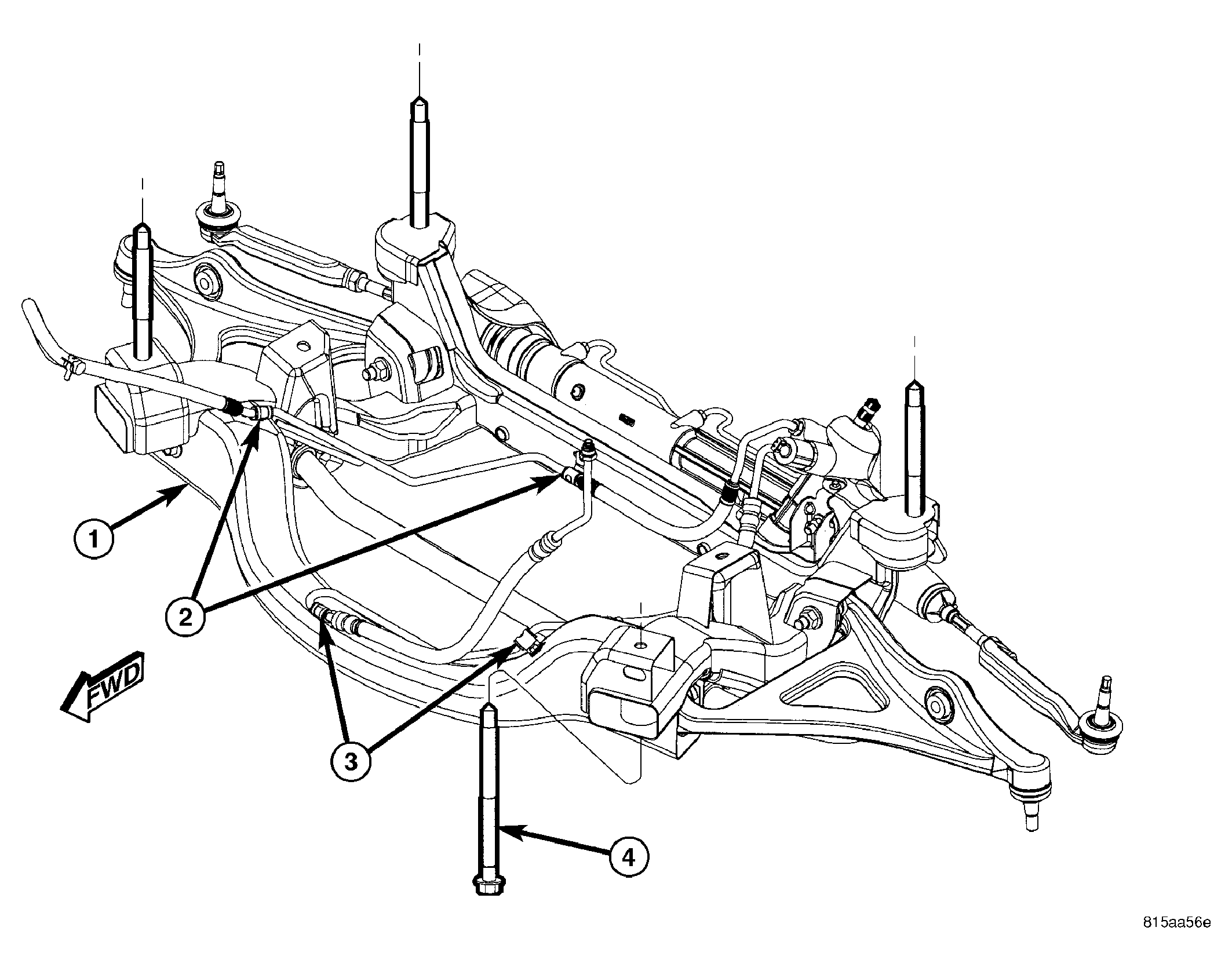

Fig 1: ENGINE CRADLE
GC0039562Courtesy of DAIMLERCHRYSLER CORP.
1 - Item_1
2 - Item _2
  1. Install control arms. (Refer to SUSPENSION/FRONT/LOWER CONTROL ARM - INSTALLATION)
  2. To aid installation, raise engine cradle to marked location.
  3. Install four engine cradle bolts (4) and raise cradle. Tighten cradle bolts to 185 N.m (136 ft. lbs.).
  4. Install stabilizer with isolators and retainers onto cradle. (Refer to SUSPENSION/FRONT/STABILIZER BAR - INSTALLATION)

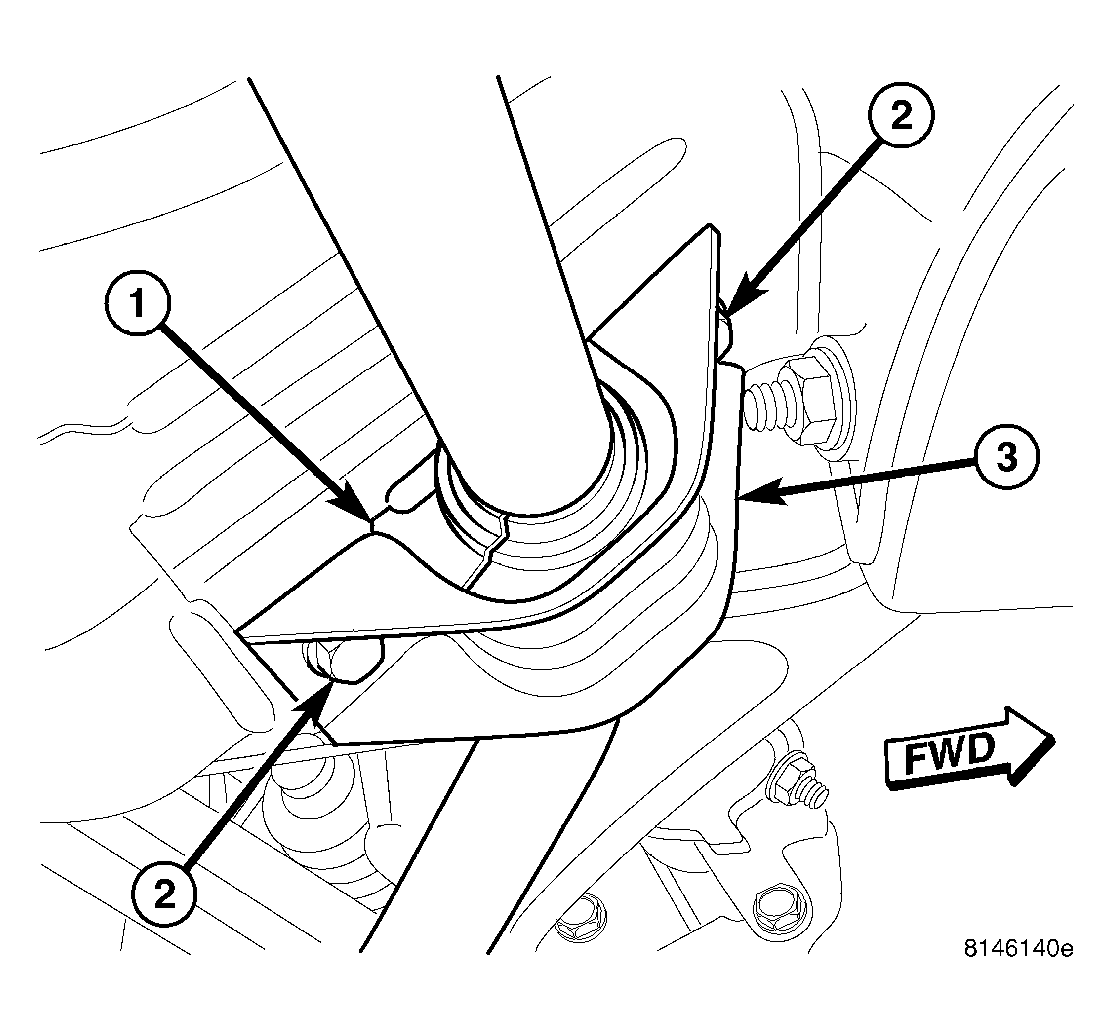

    Fig 2: Stabilizer Bar Bushing and Retainer
    GC0014091Courtesy of DAIMLERCHRYSLER CORP.
  5. On each side of vehicle, install bolts (2) fastening stabilizer bar isolator retainer (3) in place. Tighten bolts to 60 N.m (44 ft. lbs.).

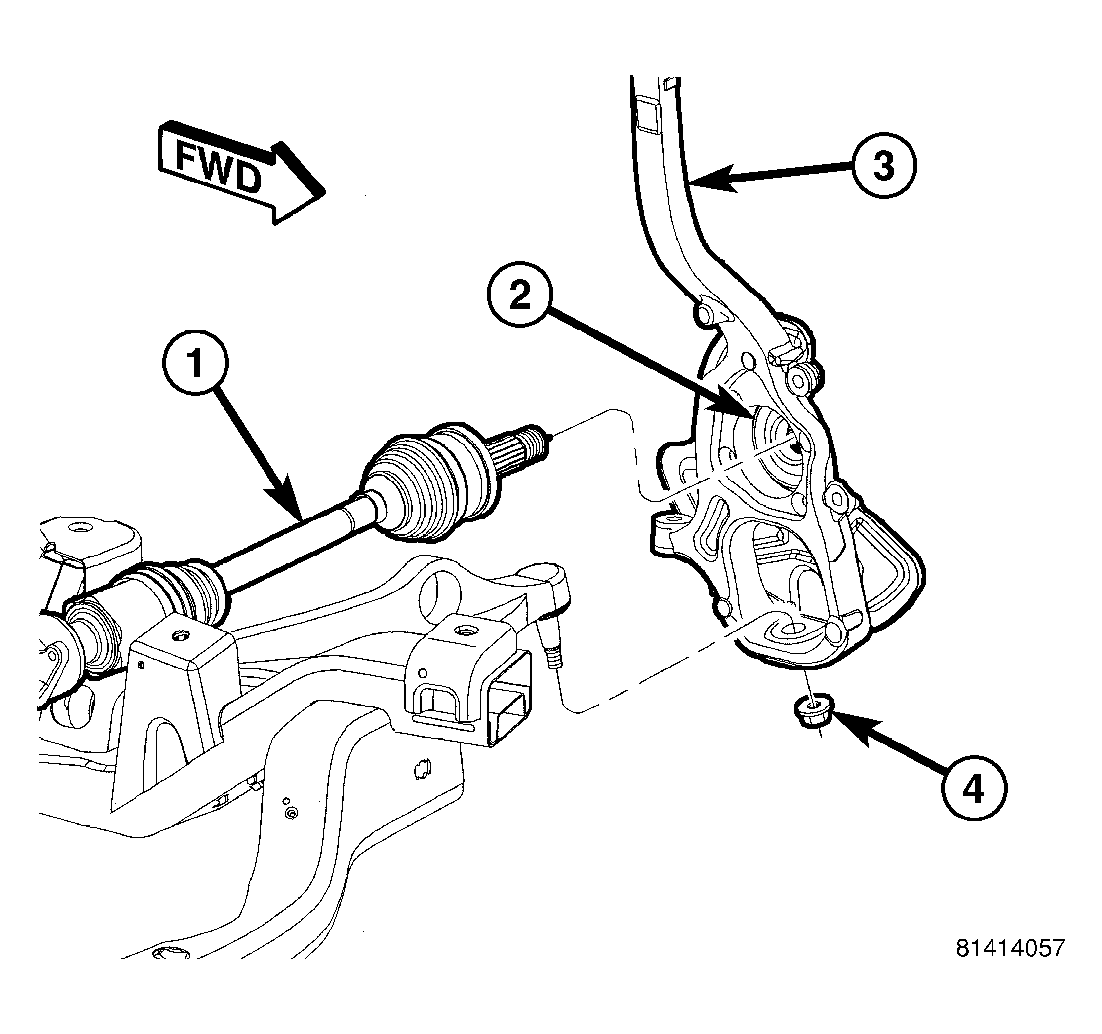

    Fig 3: Ball Joint & Axle Attachment At Knuckle
    GC0014043Courtesy of DAIMLERCHRYSLER CORP.
    1 - Item_1
    2 - Item _2
  6. Tighten engine mount nuts to 60 N.m (44 ft. lbs.).
  7. Tighten left and right ball joint nut (4) to 122 N.m (90 ft. lbs.) attaching lower control arm ball joint stud to knuckle (3).

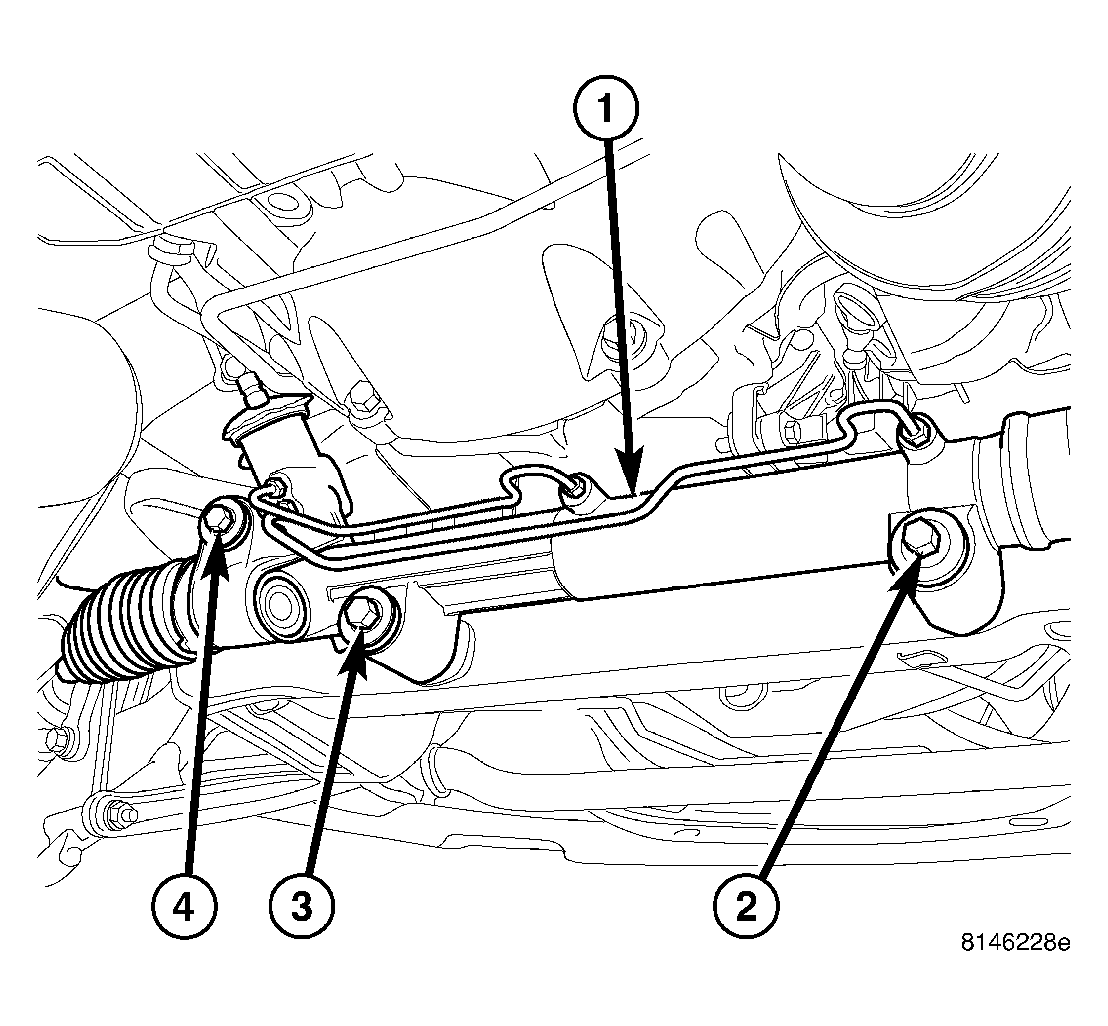

    Fig 4: Steering Gear Mounting Bolts
    GC0013291Courtesy of DAIMLERCHRYSLER CORP.
    1 - Item_1
    2 - Item _2
  8. Install steering gear (1) and support from the exhaust system. (Refer to STEERING/GEAR - INSTALLATION)
  9. Install steering gear lower mounting bolts (2 and 3). Tighten to 142 N.m (105 ft. lbs.).
  10. Install steering gear upper mounting bolt (4) and nut.

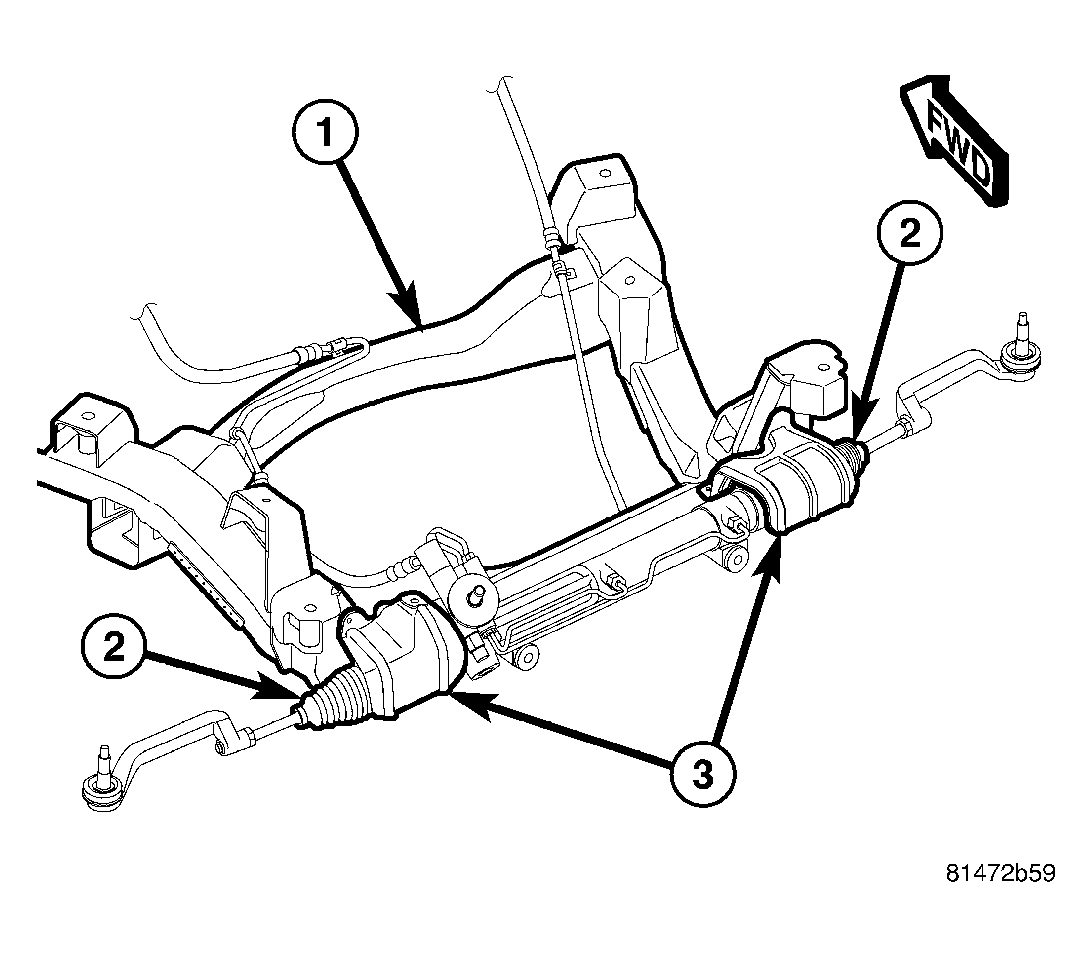

    Fig 5: Rack Assembly And Inner Tie Rod Bellows Heat Shields
    GC0013295Courtesy of DAIMLERCHRYSLER CORP.
    1 - Item_1
    2 - Item _2
  11. Install heat shield (3) and mounting screws above each inner tie rod bellow.
    Fig 6: Hose Mounting Bracket to Cradle
    GC0013312Courtesy of DAIMLERCHRYSLER CORP.
    1 - Item_1
    2 - Item _2
  12. Install two pressure line retainer bolts (1) on cradle (2).
    Fig 7: Locating Front Belly Pan And Screws
    GC0012960Courtesy of DAIMLERCHRYSLER CORP.
  13. Install front belly pan. (Refer to BODY/EXTERIOR/BELLY PAN - INSTALLATION)
    Fig 8: Shock Attachment at Lower Control Arm
    GC0014069Courtesy of DAIMLERCHRYSLER CORP.
    1 - Item_1
    2 - Item _2
  14. Install nut (3) and bolt (1) attaching shock clevis bracket (2) to lower control arm (7). Tighten to 174 N.m (128 ft. lbs.).
  15. On each side of vehicle, install nut (5) fastening stabilizer link (3) to stabilizer bar (4). Slide link ball joint stem on to bar. Tighten link nut to 81N.m (60 ft. lbs.).

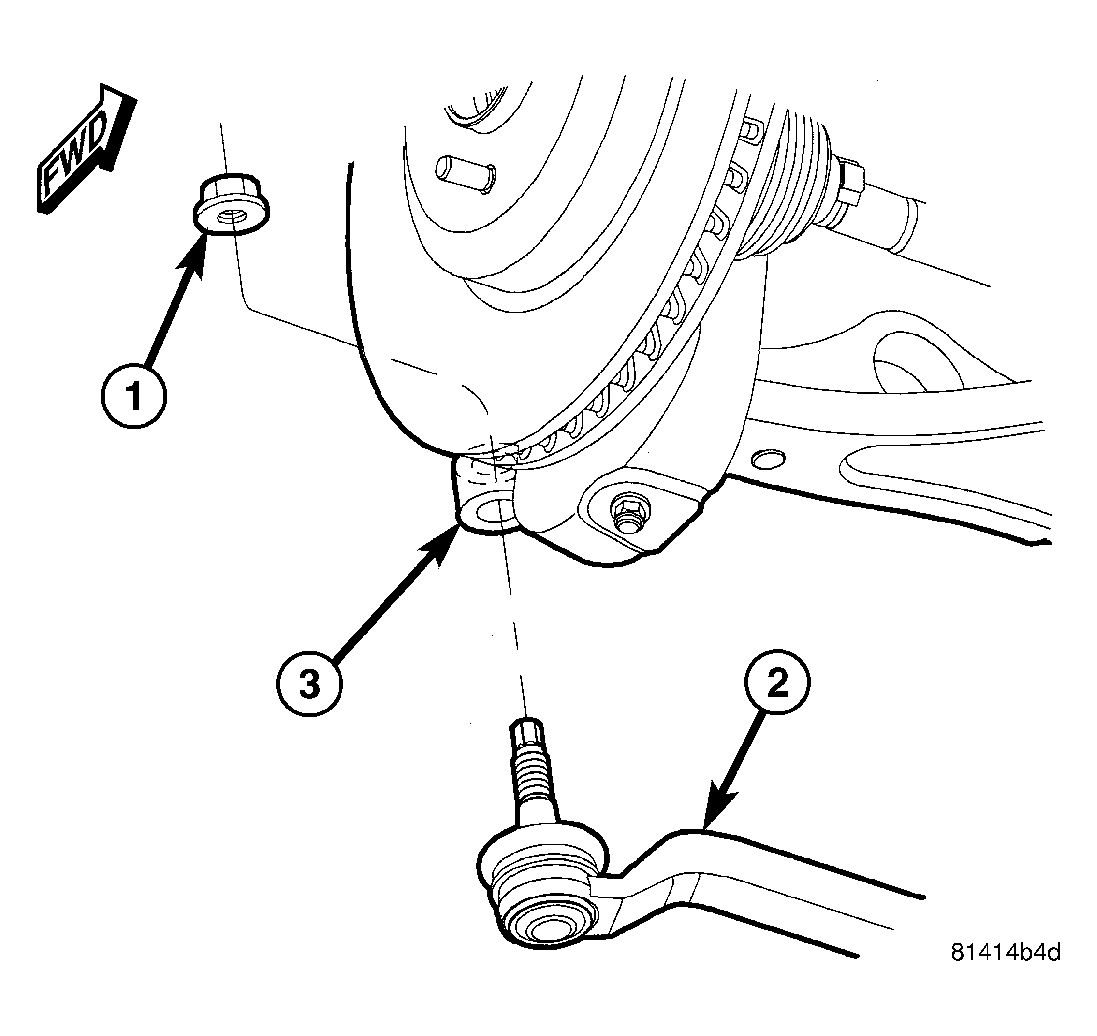

    Fig 9: Tie Rod Attachment at Knuckle
    GC0013294Courtesy of DAIMLERCHRYSLER CORP.
  16. Install outer tie rod (2) end nut (1) at each knuckle (3). Tighten end nut to 86 N.m (63 ft. lbs.).
    Fig 10: Tire And Wheel Mounting
    GC0012971Courtesy of DAIMLERCHRYSLER CORP.
  17. Install tire and wheel assembly (1). (Refer to TIRES/WHEELS - INSTALLATION) .
  18. Lower vehicle from hoist.
  19. Install power steering fluid into pump reservoir. (Refer to STEERING/PUMP/FLUID - STANDARD PROCEDURE)
    Fig 11: Disconnecting/Connecting Battery Cables
    GC0012970Courtesy of DAIMLERCHRYSLER CORP.
  20. Connect negative battery cable (2) to battery post. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
  21. Perform vehicle alignment. (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE)
