Bushing-Rear CROSSMEMBER Spring Link: Removal

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
Access and remove rear spring on side of repair. (Refer to SUSPENSION/REAR/SPRING - REMOVAL)

Fig 1: Headlamp Leveling Sensor
Courtesy of DAIMLERCHRYSLER CORP.
Export Only - If servicing right side bushing, disconnect headlamp leveling sensor (1) link at spring link (3).

Fig 2: Spring Link Mounting
Courtesy of DAIMLERCHRYSLER CORP.
Remove bolt and nut (1) fastening spring link (4) to crossmember.

Position spring link downward, away from bushing in crossmember.

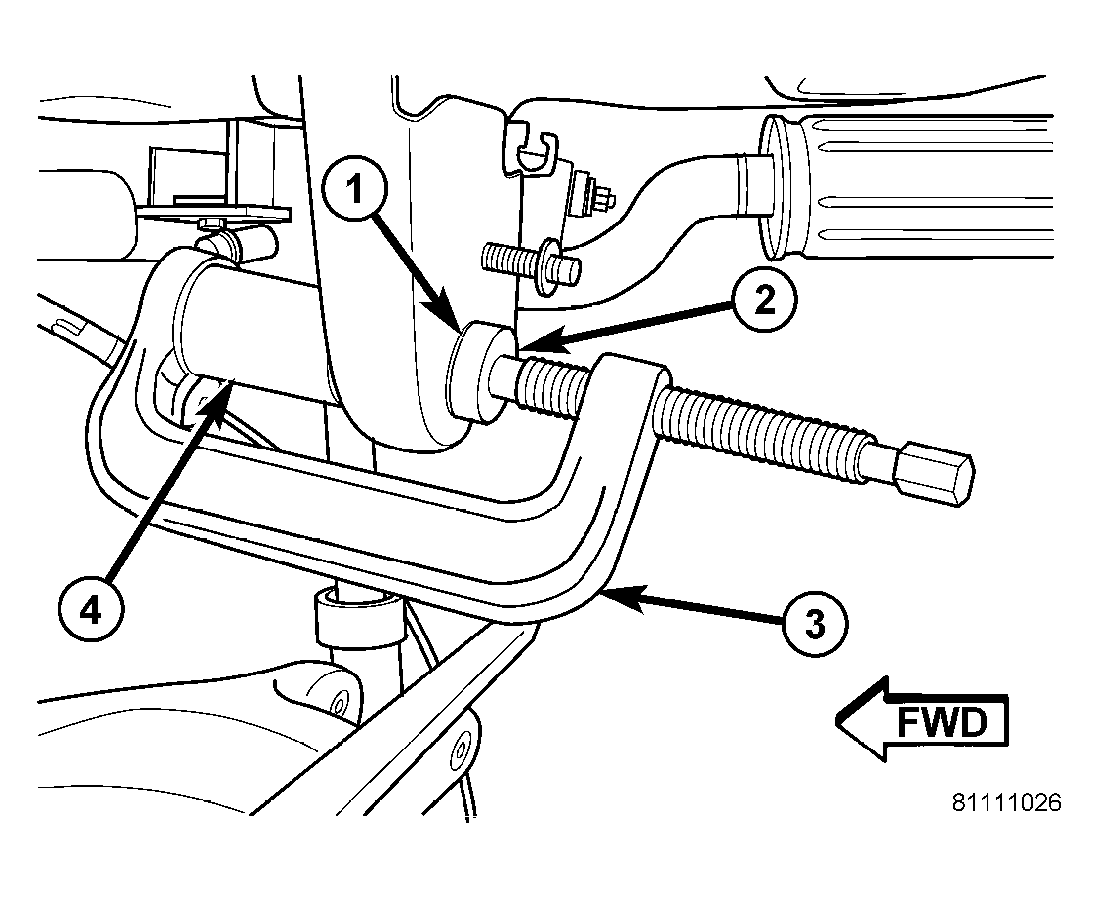

Fig 3: Spring Link Bushing Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - BUSHING

2 - REMOVER 9032-2

3 - PRESS C-4212F

4 - RECEIVER 9032-1

NOTE: Prior to using Press (3), Special Tool C-4212F, lubricate screw-drive threads to provide ease of use and promote tool longevity.

Assemble tools over bushing as shown in Fig 3(See list). Ensure Receiver, Special Tool 9032-1, sets against crossmember and not welds.
- (2) Remover 9032-2
- (3) Press C-4212F
- (4) Receiver 9032-1
Tighten Press screw-drive, pressing bushing out of crossmember.
