Section 36 (Frame & Bumpers): Bumper-Front: Installation
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

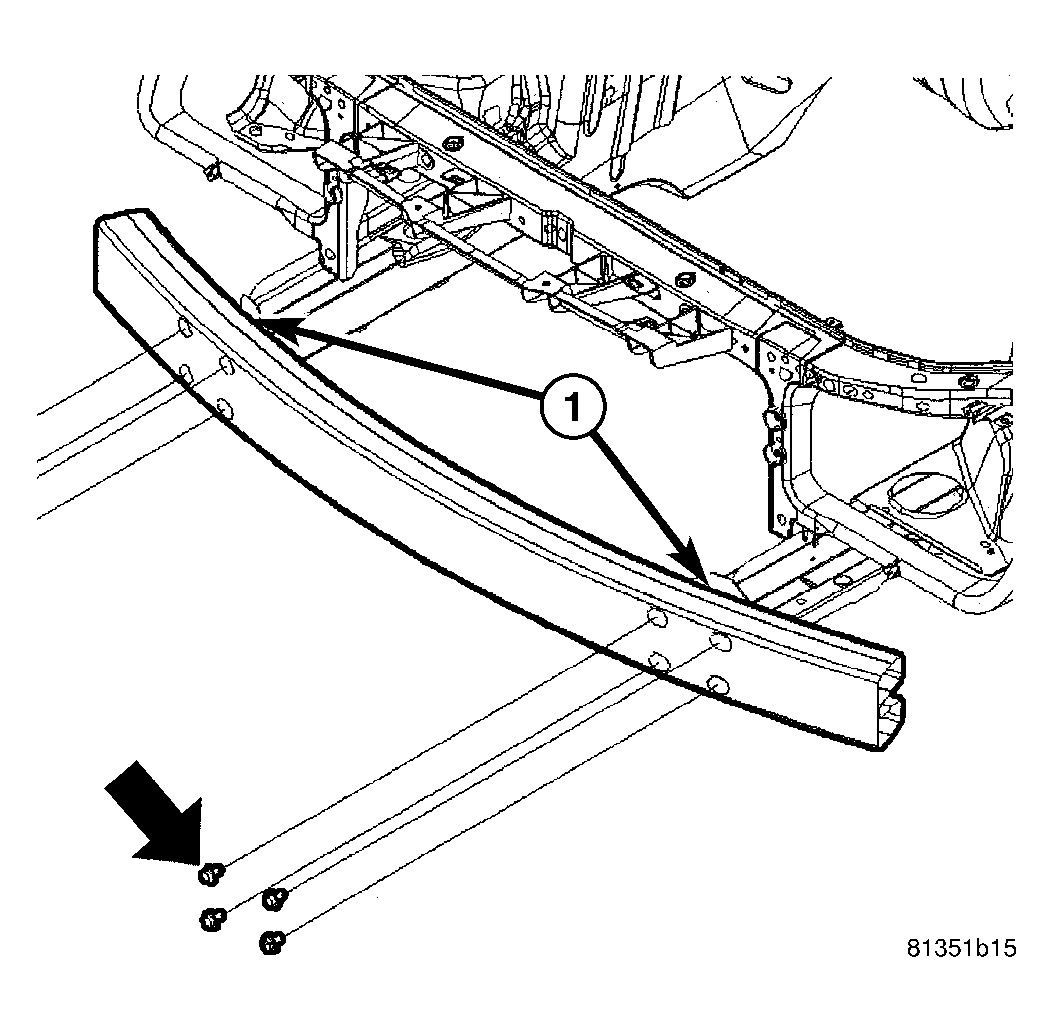

300 Shown. Magnum and Charger similar.
- Position the bumper.NOTE: It is not necessary to spot weld the bumper back into place.
- Install the bolts and tighten to 28 N.m (21 ft. lbs.).
- Install the fascia. (Refer to FRAME & BUMPERS/BUMPERS/FASCIA-FRONT - INSTALLATION)
