Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hand near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in possible serious or fatal injury.

  NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this test.
2. With the scan tool, select View DTCs.
  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F852/F855) 5-VOLT SUPPLY CIRCUIT VOLTAGE

Fig 1: CHECKING 5-VOLT SUPPLY CIRCUIT
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Accelerator Pedal Position Sensor connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5-volt Supply circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the voltage above 4.5 volts?

  Yes
  - Go to step 5
  No
  - Go to step 3
(F852/F855) 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

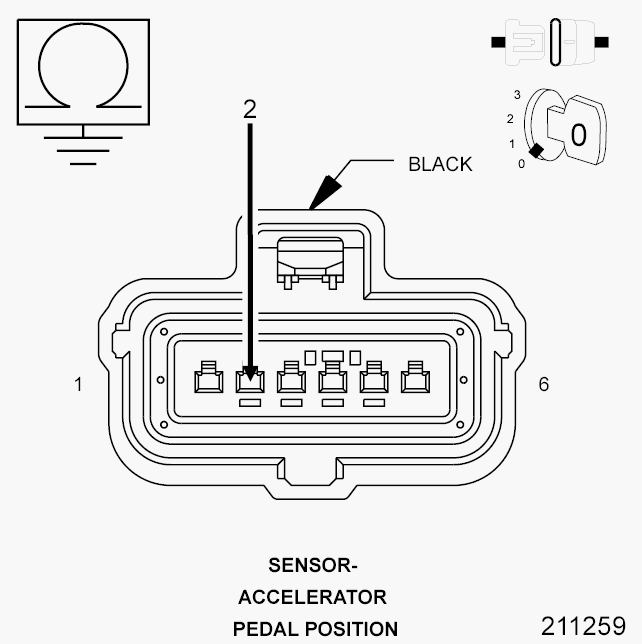

Fig 2: CHECKING 5-VOLT SUPPLY CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Disconnect the C2 Powertrain Control Module (PCM) harness connector.
3. Measure the resistance between ground and the (F855) 5-volt Supply circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 4
  No
  - Repair the (F852/F855) 5-volt Supply circuit for a short to ground.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F852/F855) 5-VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

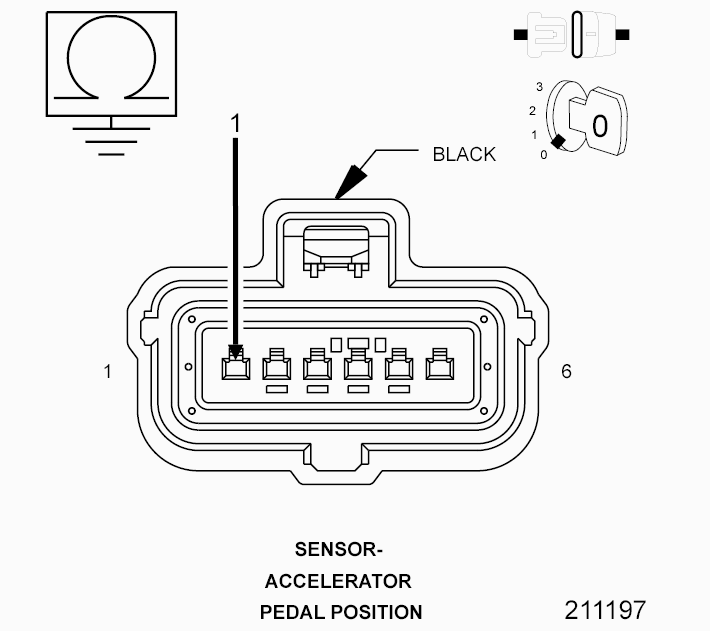

Fig 3: CHECKING 5-VOLT SUPPLY CIRCUIT FOR OPEN OR HIGH RESISTANCE
Courtesy of CHRYSLER LLC

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
1. Measure the resistance of the (F852/F855) 5-volt Supply circuit between the Accelerator Pedal Position Sensor harness connector and the appropriate terminal of PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 10
  No
  - Repair the (F852/F855) 5-volt Supply circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO GROUND

Fig 4: CHECKING APP SIGNAL 1 CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) harness connector.
3. Measure the resistance between ground and the (K23) APP Signal 1 circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 6
  No
  - Repair the short to ground in the (K23) APP Signal 1 circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO THE (K167) APP SENSOR GROUND 1 CIRCUIT

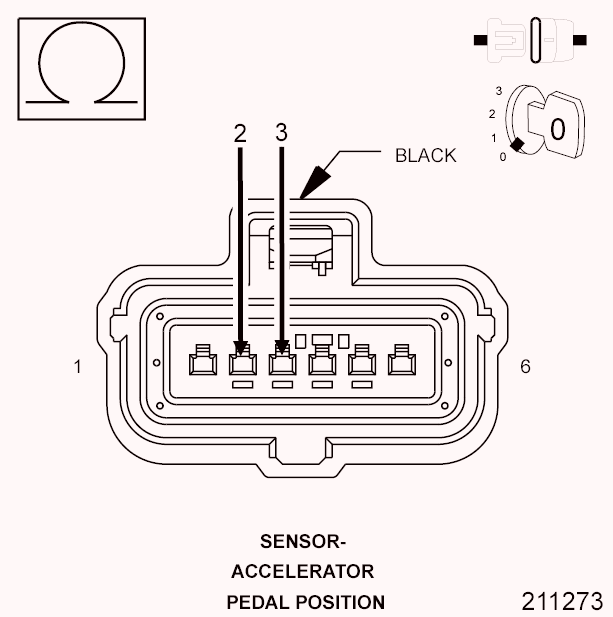

Fig 5: CHECKING APP SIGNAL 1 CIRCUIT FOR SHORT TO APP SENSOR GROUND 1 CIRCUIT
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K23) APP Signal 1 circuit and the (K167) APP Sensor Ground 1 circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 7
  No
  - Repair the (K23) APP Signal 1 circuit for a short to the (K167) APP Sensor Ground 1 circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K23) APP SIGNAL 1 CIRCUIT SHORTED TO THE (K400) APP SENSOR GROUND 2 CIRCUIT

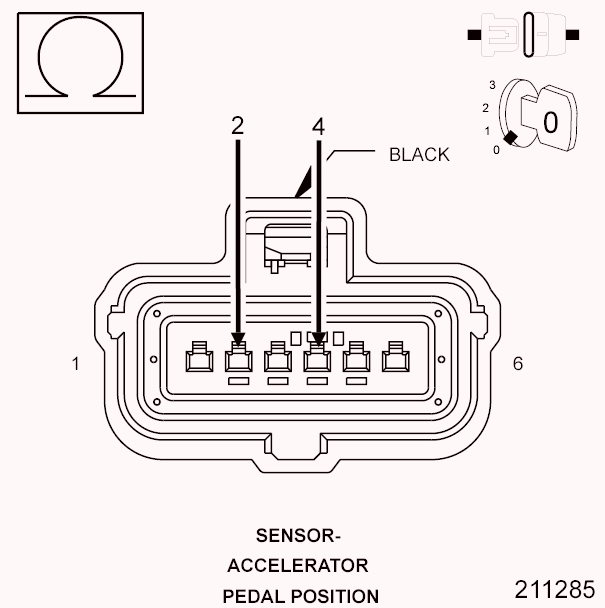

Fig 6: CHECKING APP SIGNAL 1 CIRCUIT FOR SHORT TO APP SENSOR GROUND 2 CIRCUIT
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (F855) 5-volt Supply circuit and the (K400) APP Sensor Ground 2 circuit in the Accelerator Pedal Position Sensor harness connector.
  Is the resistance above 100 Ohms?

  Yes
  - Go to step 8
  No
  - Repair the (F855) 5-volt Supply circuit for a short to the (K400) APP Sensor Ground 2 circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K23) APP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

Fig 7: CHECKING APP SIGNAL 1 CIRCUIT FOR OPEN OR HIGH RESISTANCE
Courtesy of CHRYSLER LLC

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals, resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
1. Measure the resistance of the (K23) APP Signal 1 circuit between the Accelerator Pedal Position Sensor harness connector and the appropriate terminal of PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 9
  No
  - Repair the (K23) APP Signal 1 circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
ACCELERATOR PEDAL POSITION SENSOR
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) harness connector.
3. Turn the ignition on.
4. With the scan tool, read the Accelerator Pedal Position Sensor signal voltage.
  NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus.1 of a volt) with the connector disconnected.

  Does the scan tool display the voltage as described above?

  Yes
  - Replace the Accelerator Pedal Position Sensor in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 10
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Accelerator Pedal Position Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Perform any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
