Section 353 (Gas - DTCS P1521 To P2098)
>>
P2066-Fuel Level Sensor 2 Performance
>>
Circuit Schematic
Circuit Schematic
WARNING:
This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

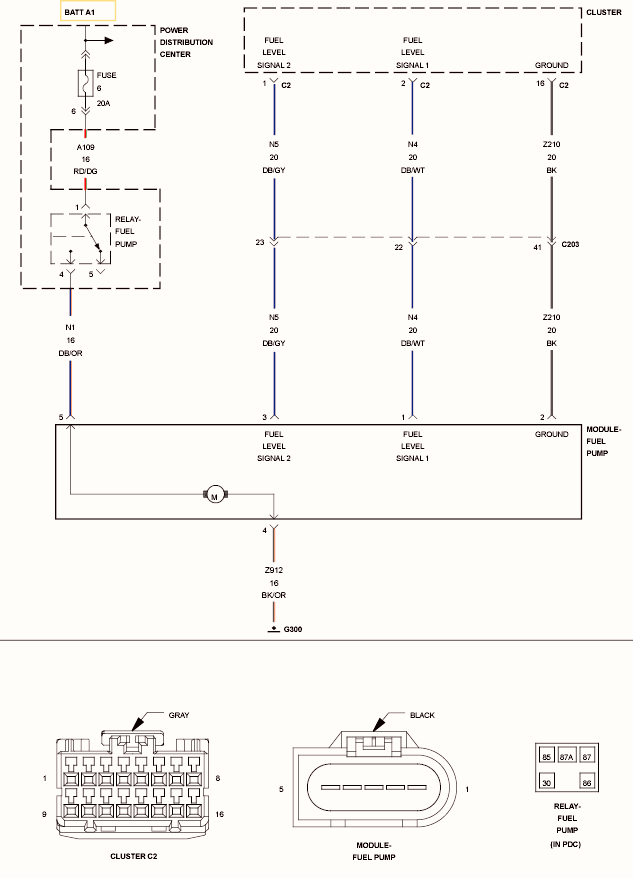

Fig 1: Fuel Level Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
