Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
NOTE: Make sure that the engine oil is at the proper level. Also, check the customers oil change history to ensure that the oil is being changed at the correct intervals and that the proper oil viscosity is being used.
1. Start the engine and allow it to reach normal operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

  NOTE: Diagnose and repair any system voltage or sensor supply voltage DTCs before continuing with this test.

  Is the DTC Active at this time?

  Yes
  - Go to step 2
  No
  - Perform the CHECKING FOR AN INTERMITTENT DTC diagnostic procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
OIL PRESSURE SWITCH

Fig 1: Oil Pressure Switch Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Oil Pressure Switch harness connector.
3. Ignition on, engine not running.
4. Connect a jumper wire to the (G6) EOP Signal circuit in the Oil Pressure Switch harness connector.
5. With the scan tool monitor the Oil Pressure Switch state.
6. Touch the other end of the jumper wire to a known good Ground several times.
  Did the Oil Pressure Switch state change from High to Low when connecting and disconnecting the jumper wire to ground?

  Yes
  - Verify that there is good pin to terminal contact in the Oil Pressure Switch and the Powertrain Control Module (PCM) connectors. Replace the Oil Pressure Switch if no problems were found with the connectors.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 3
    NOTE: Remove the jumper wire before continuing.
(G6) EOP SIGNAL CIRCUIT SHORTED TO VOLTAGE

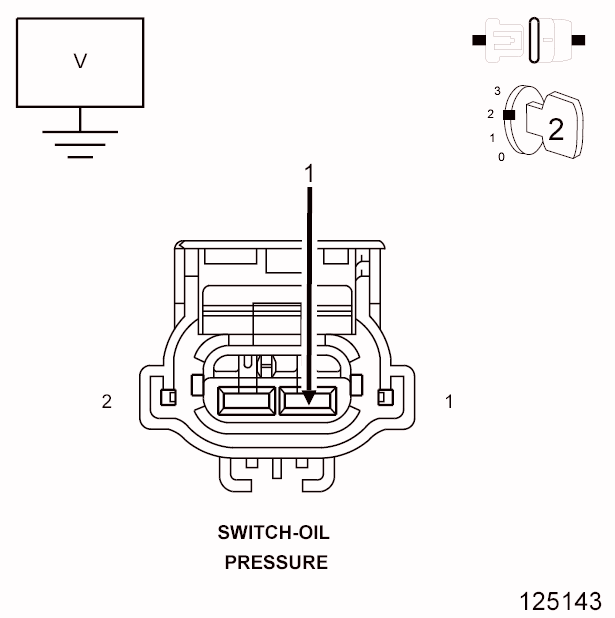

Fig 2: CHECKING EOP SIGNAL CIRCUIT FOR SHORT TO VOLTAGE
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C1 PCM harness connector.
3. Ignition on, engine not running.
4. Measure the voltage on the (G6) EOP Signal circuit in the Oil Pressure Switch harness connector.
  NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus.1 of a volt) with the connector disconnected.

  Does the scan tool display the voltage as described above?

  Yes
  - Repair the short to voltage on the (G6) EOP Signal circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 4
(G6) EOP SIGNAL CIRCUIT OPEN

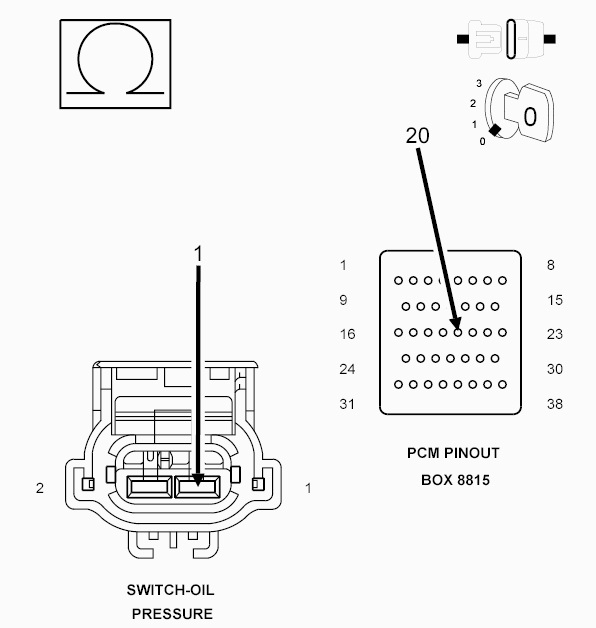

Fig 3: Checking Oil Pressure Signal Circuit
Courtesy of CHRYSLER LLC

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box 8815 to perform diagnosis.
1. Measure the resistance of the (G6) EOP Signal circuit from the Oil Pressure Switch harness connector to the appropriate terminal of PCM Pinout Box 8815.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go to step 5
  No
  - Repair the open in the (G6) EOP Signal circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(G6) EOP SIGNAL CIRCUIT SHORTED TO GROUND

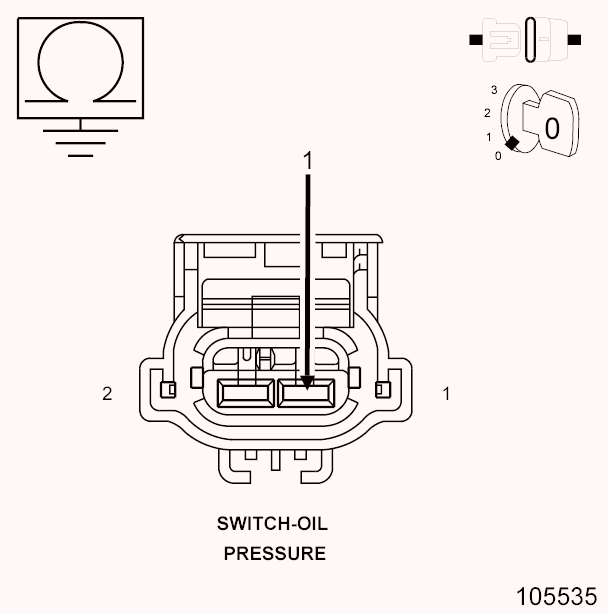

Fig 4: Checking Oil Pressure Signal Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Measure the resistance between a known good ground and the (G6) EOP Signal circuit in the Oil Pressure Switch connector.
  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the (G6) EOP Signal circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 6
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the related Oil Pressure Switch and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Oil Pressure Switch and the Powertrain Control Module connectors.
4. Refer to any Technical Service Bulletins (TSBs) that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module per Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
