Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

DTC IS ACTIVE
NOTE: Diagnose and repair any Throttle Body circuit, system voltage, or sensor supply voltage DTCs before continuing with this test.
1. Start the engine and allow it to reach operating temperature.
  WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
2. With the scan tool select View DTCs.
  NOTE: If the DTC does not reset it may be necessary to test drive the vehicle.

  NOTE: If the P2122-APP Sensor 1 Circuit Low DTC is also Active, diagnose the P2122 before continuing with the P0122 diagnostic procedure.

  Is the status Active for this DTC?

  Yes
  - Go to step 2
  No
  - Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5 VOLT SUPPLY CIRCUIT VOLTAGE

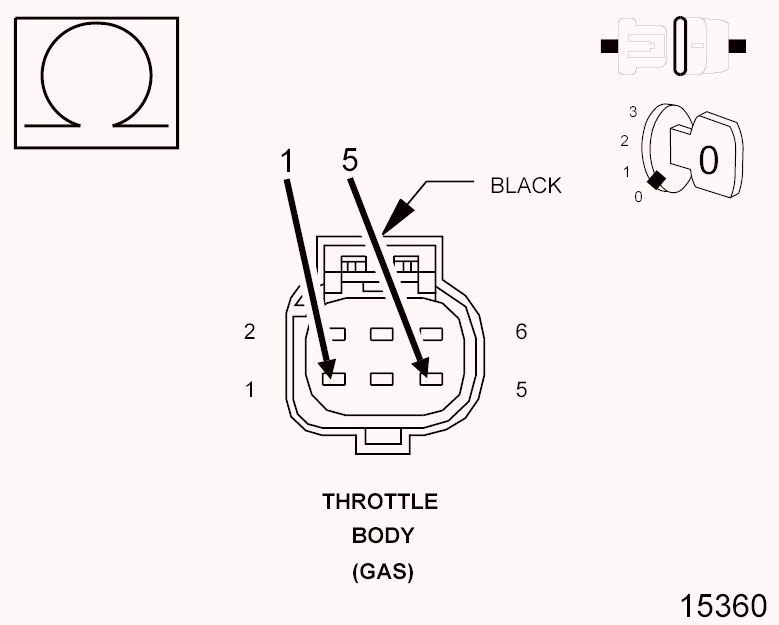

Fig 1: Checking 5-Volt Supply Circuit At Throttle Body Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Throttle Body connector.
3. Turn the ignition on.
4. Measure the voltage of the (F855) 5 Volt Supply circuit in the Throttle Body harness connector.
  Is the voltage above 4.5 volts?

  Yes
  - Go to step 6
  No
  - Go to step 3
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

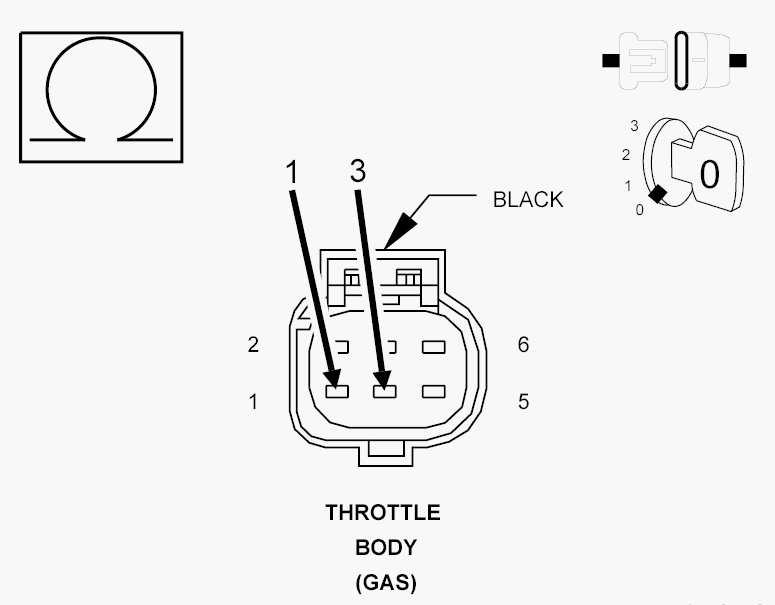

Fig 2: CHECKING THROTTLE BODY 5 VOLT SUPPLY CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Measure the resistance between ground and the (F855) 5 Volt Supply circuit in the Throttle Body harness connector.
  Is the resistance above 1000 ohms?

  Yes
  - Go to step 4
  No
  - Repair the (F855) 5 Volt Supply circuit for a short to ground.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5 VOLT SUPPLY CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT
1. Measure the resistance between the (F855) 5 Volt Supply circuit and the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 5
  No
  - Repair the (F855) 5 Volt Supply circuit for a short to the (K922) TP Sensor Ground circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(F855) 5 VOLT SUPPLY CIRCUIT OPEN OR HIGH RESISTANCE

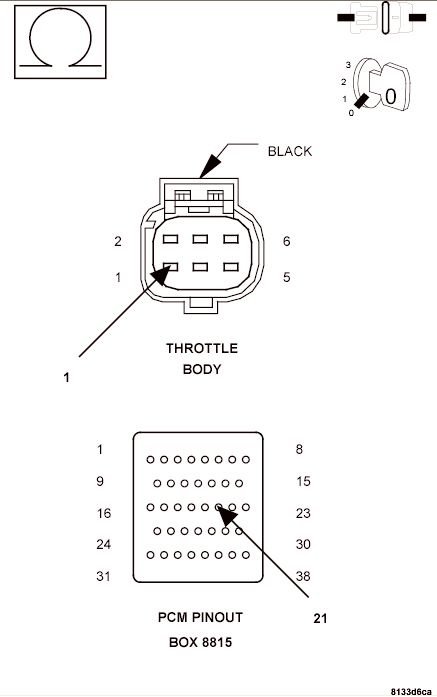

Fig 3: CHECKING 5 VOLT SUPPLY CIRCUIT FOR OPEN OR HIGH RESISTANCE
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (F855) 5 Volt Supply circuit between the Throttle Body harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 12
  No
  - Repair the (F855) 5 Volt Supply circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO GROUND

Fig 4: CHECKING TP SIGNAL 1 CIRCUIT FOR SHORT TO GROUND
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Powertrain Control Module (PCM) connector.
3. Measure the resistance between ground and the (K22) TP Signal 1 circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 7
  No
  - Repair the (K22) TP Signal 1 circuit for a short to ground.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO (K922) TP SENSOR GROUND CIRCUIT

Fig 5: CHECKING TP SIGNAL 1 CIRCUIT FOR SHORT TO TP SENSOR GROUND CIRCUIT
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K22) TP Signal 1 circuit and the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
  Is the resistance above 100 ohms?

  Yes
  - Go to step 8
  No
  - Repair the (K22) TP Signal 1 circuit for a short to the (K922) TP Sensor Ground circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K124) ETC MOTOR (+) CIRCUIT

Fig 6: CHECKING TP SIGNAL 1 CIRCUIT FOR SHORT TO ETC MOTOR (+) CIRCUIT
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K22) TP Signal 1 circuit and the (K124) ETC Motor (+) in the Throttle Body harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the (K22) TP Signal 1 circuit for a short to the (K124) ETC Motor (+) circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 9
(K22) TP SIGNAL 1 CIRCUIT SHORTED TO THE (K126) ETC MOTOR (-) CIRCUIT

Fig 7: CHECKING TP SIGNAL 2 CIRCUIT FOR SHORT TO ETC MOTOR (-) CIRCUIT
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (K22) TP Signal 1 circuit and the (K126) ETC Motor (-) in the Throttle Body harness connector.
  Is the resistance below 100 ohms?

  Yes
  - Repair the (K22) TP Signal 1 circuit for a short to the (K126) ETC Motor (-) circuit.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 10
(K22) TP SIGNAL 1 CIRCUIT OPEN OR HIGH RESISTANCE

Fig 8: CHECKING TP SIGNAL 1 CIRCUIT FOR OPEN OR HIGH RESISTANCE
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (K22) TP Signal 1 circuit between the Throttle Body harness connector and the Powertrain Control Module (PCM) harness connector.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 11
  No
  - Repair the (K22) TP Signal 1 circuit for an open circuit or high resistance.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
THROTTLE BODY
1. Turn the ignition off.
2. Connect the Powertrain Control Module (PCM) connector.
3. Connect a jumper wire between the (K22) TP Signal 1 circuit and the (F855) 5 Volt Supply circuit in the Throttle Body harness connector.
4. Turn the ignition on.
5. With the scan tool, read the Throttle Body signal voltage.
  NOTE: The sensor voltage should be approximately 5.0 volts (plus or minus.1 volt) with the jumper wire in place.
6. Turn the ignition off.
7. Connect a jumper wire between the (K22) TP Signal 1 circuit and the (K922) TP Sensor Ground circuit in the Throttle Body harness connector.
8. Turn the ignition on.
9. With a scan tool, read the Throttle Body voltage.
  NOTE: The sensor voltage should be approximately 0.0 volts (plus or minus.1 volt) with the jumper wire in place.

  Does the scan tool display the voltage as described above?

  Yes
  - Replace the Throttle Body in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Go to step 12
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Throttle Body and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals.
4. Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
5. Look for the data to change or for the DTC to reset during the wiggle test.
6. Refer to any Technical Service Bulletins that may apply.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
  No
  - Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
  - Perform the PCM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure .
