Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Activate the rear wiper switch.
4. Wait 30 seconds.
5. With the scan tool, read DTCs.
  Is the DTC active?

  Yes
  - Go to step 2
  No
  - The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
CHECK THE (W213) REAR WIPER INDICATOR DRIVER CIRCUIT FOR AN OPEN

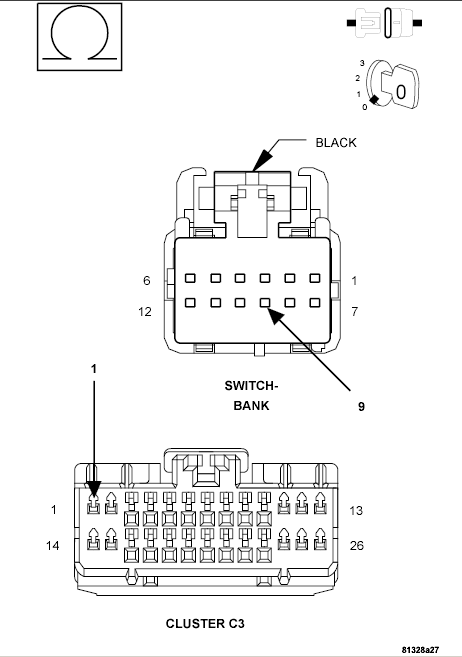

Fig 1: Checking Rear Wiper Indicator Driver Circuit For Open
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Cluster C3 harness connector.
3. Measure the resistance of the (W213) Rear Wiper Indicator Driver Circuit between the Cluster Harness connector and the Switch Bank harness connector.
  Is the resistance above 5.0 ohms?

  Yes
  - Repair the (W213) Rear Wiper Indicator Driver Circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Go to step 3
CHECK THE OPERATION OF THE REAR WIPER SWITCH

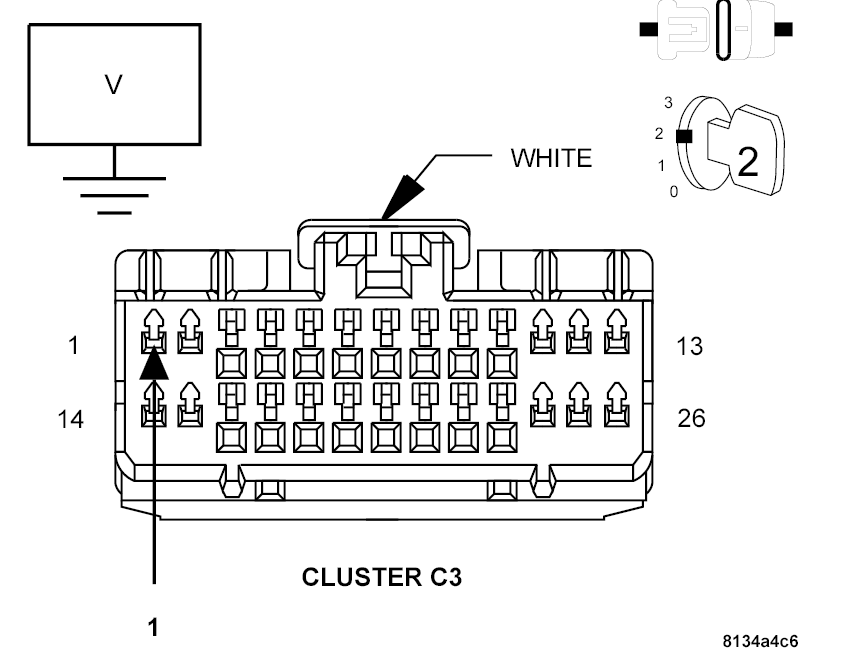

Fig 2: Checking Rear Wiper Indicator Driver Circuit Voltage
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Reconnect the Switch Bank harness connector.
3. Measure the voltage on the (W213) Rear Wiper Indicator Driver Circuit at the Cluster C3 harness connector.
  Is the voltage above 10.0 volts?

  Yes
  - Replace the Cluster in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
  No
  - Replace the Switch Bank in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure
