Home >> Chrysler >> 2009 >> 300 Signature Series >> Repair and Diagnosis >> External Pages >> Different car >> Section 344 ((Park Assist Module (PTS) - Electrical Diagnostics)) >> DTC Troubleshooting >> B1290-12-PTS Sensor 3-Circuit Short To Battery >> Circuit Schematic

Circuit Schematic

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

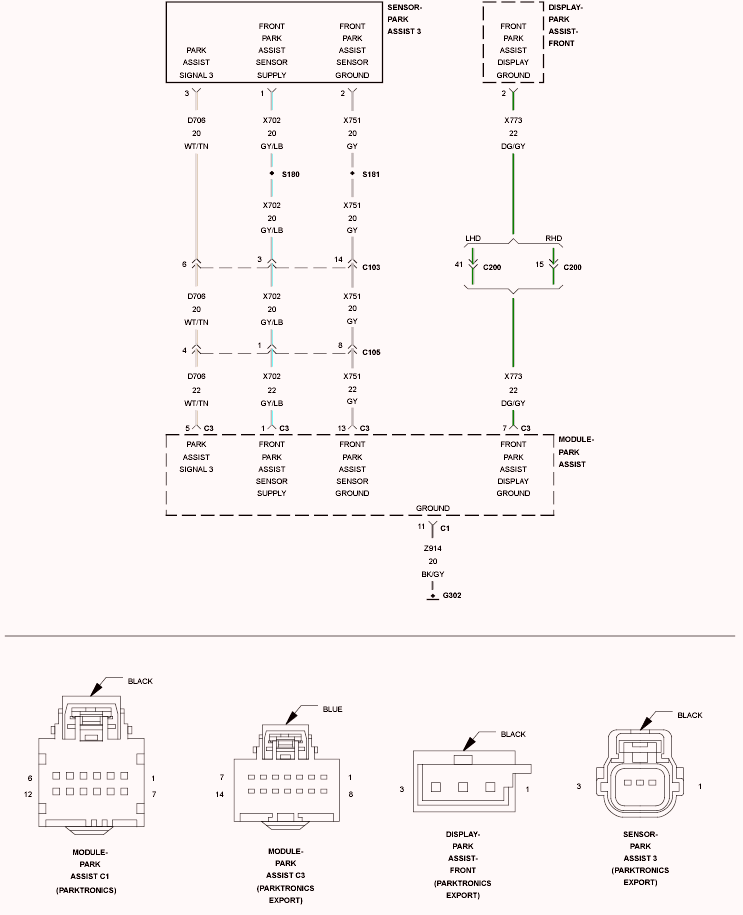

Fig 1: Front Park Assist Sensor 3 Circuit Schematic
GC0097103Courtesy of CHRYSLER LLC
