Diagnostic Test

WARNING: This page is about a different car, the 2010 Dodge Charger and 2010 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR RELATED DIAGNOSTIC TROUBLE CODES
1. Turn the ignition on.
2. With the scan tool, read DTC's.
  Does the scan tool display any seat position sensor DTC's?

  Yes
  - Diagnose and repair the other DTC(s) first. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Diagnosis and Testing for a complete list of symptoms.
  No
  - Go to step 2
TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, record and erase DTC's
3. Move the Seat Switch in the Rear Vertical position three times.
4. With the scan tool, read DTC's.
  Does the scan tool display B1D83-SEAT REAR VERTICAL MOTOR CONTROL CIRCUIT PERFORMANCE?

  Yes
  - Go to step 3
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
CHECK THE (G402) DRIVER SEAT REAR VERTICAL POSITION SENSE VOLTAGE

Fig 1: Checking Driver Seat Rear Vertical Position Sense Circuit Voltage
Courtesy of CHRYSLER LLC
1. Disconnect the Rear Driver Vertical Seat Adjuster Motor.
  NOTE: Check connectors - Clean and repair as necessary.
2. Move the Seat Switch in the rear vertical position during the next step.
3. Using a 12-volt test light connect one lead to the (G402) Driver Seat Rear Vertical Position Sense circuit and the other lead to Driver Seat Rear Vertical Sensor Ground at the Driver Rear Vertical Seat Adjuster Motor connector.
  Does the test light illuminate for approximately two seconds then turn off with the seat switch engaged?

  Yes
  - Go to step 4
  No
  - Go to step 5
CHECK THE DRIVER SEAT REAR VERTICAL UP/DOWN DRIVER VOLTAGE

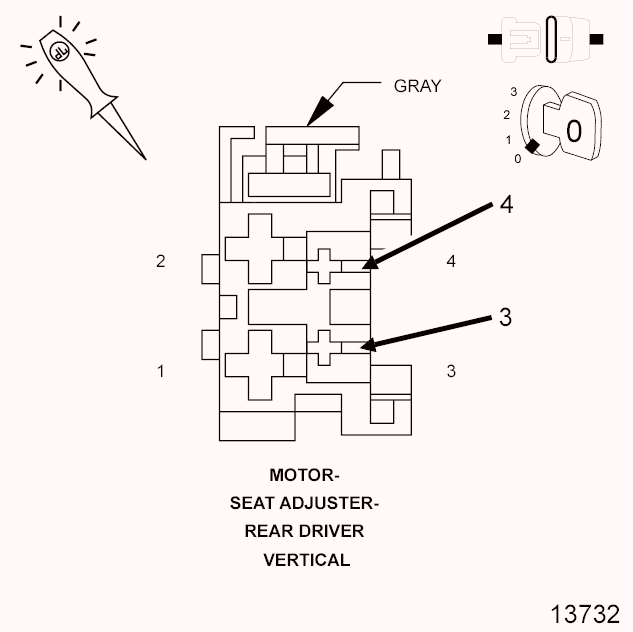

Fig 2: Checking Driver Seat Rear Vertical Up/Down Driver Circuit Voltage
Courtesy of CHRYSLER LLC
1. Move the Seat Switch in the rear vertical position during the next step.
2. Using a 12-volt test light connect one lead to the (P111) Driver Seat Rear Vertical Up Driver circuit and the other lead to (P113) Driver Seat Rear Vertical Down Driver circuit at the Rear Driver Vertical Seat Adjuster Motor connector.
  Does the test light illuminate with the seat switch engaged?

  Yes
  - Replace the Rear Driver Vertical Seat Adjuster motor assembly.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
  No
  - Go to step 7
CHECK THE (G402) DRIVER SEAT REAR VERTICAL POSITION SENSE WIRE FOR AN OPEN

Fig 3: Checking Driver Seat Rear Vertical Position Sense Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the Memory Seat Module C3 connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. Measure the resistance of the (G402) Driver Seat Rear Vertical Position Sense circuit at the Rear Driver Vertical Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (G402) Driver Seat Rear Vertical Position Sense circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
  No
  - Go to step 6
CHECK THE (G492) DRIVER SEAT REAR VERTICAL SENSOR GROUND FOR AN OPEN

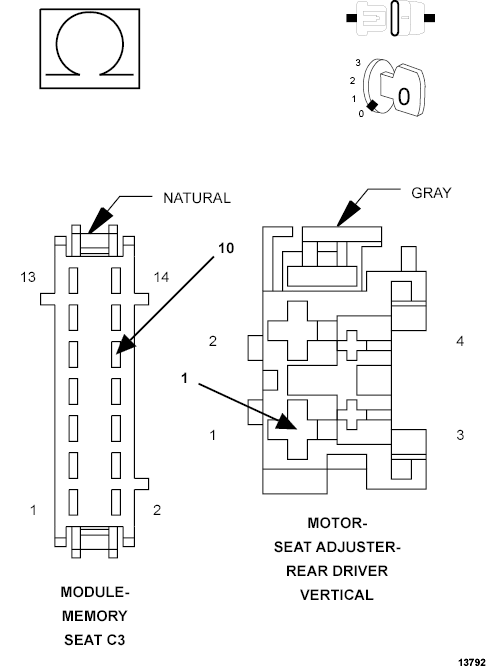

Fig 4: Checking Driver Seat Rear Vertical Sensor Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G492) Driver Seat Rear Vertical Sensor Ground circuit at the Driver Rear Vertical Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (G492) Driver Seat Rear Vertical Sensor Ground circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
  No
  - Replace the Memory Seat Module.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
CHECK THE (P111) DRIVER SEAT REAR VERTICAL UP DRIVER WIRE FOR AN OPEN

Fig 5: Checking Driver Seat Rear Vertical Up Driver Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the Memory Seat Module C3 connector.
  NOTE: Check connectors - Clean and repair as necessary.
2. Measure the resistance of the (P111) Driver Seat Rear Vertical Up Driver circuit at the Driver Rear Vertical Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (P111) Driver Seat Rear Vertical Up Driver circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
  No
  - Go to step 8
CHECK THE (P113) DRIVER SEAT REAR VERTICAL DOWN DRIVER FOR AN OPEN

Fig 6: Checking Driver Seat Rear Vertical Down Driver Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (P113) Driver Seat Rear Vertical Down Driver circuit at the Driver Rear Vertical Seat Adjuster Motor connector to the C3 connector.
  Is the resistance above 1.0 ohm?

  Yes
  - Repair the (P113) Driver Seat Rear Vertical Down Driver circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
  No
  - Replace the Memory Seat Module.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Memory Seat (MSMD) - Standard Procedure
